ChargePort Plus
ChargePort Plus

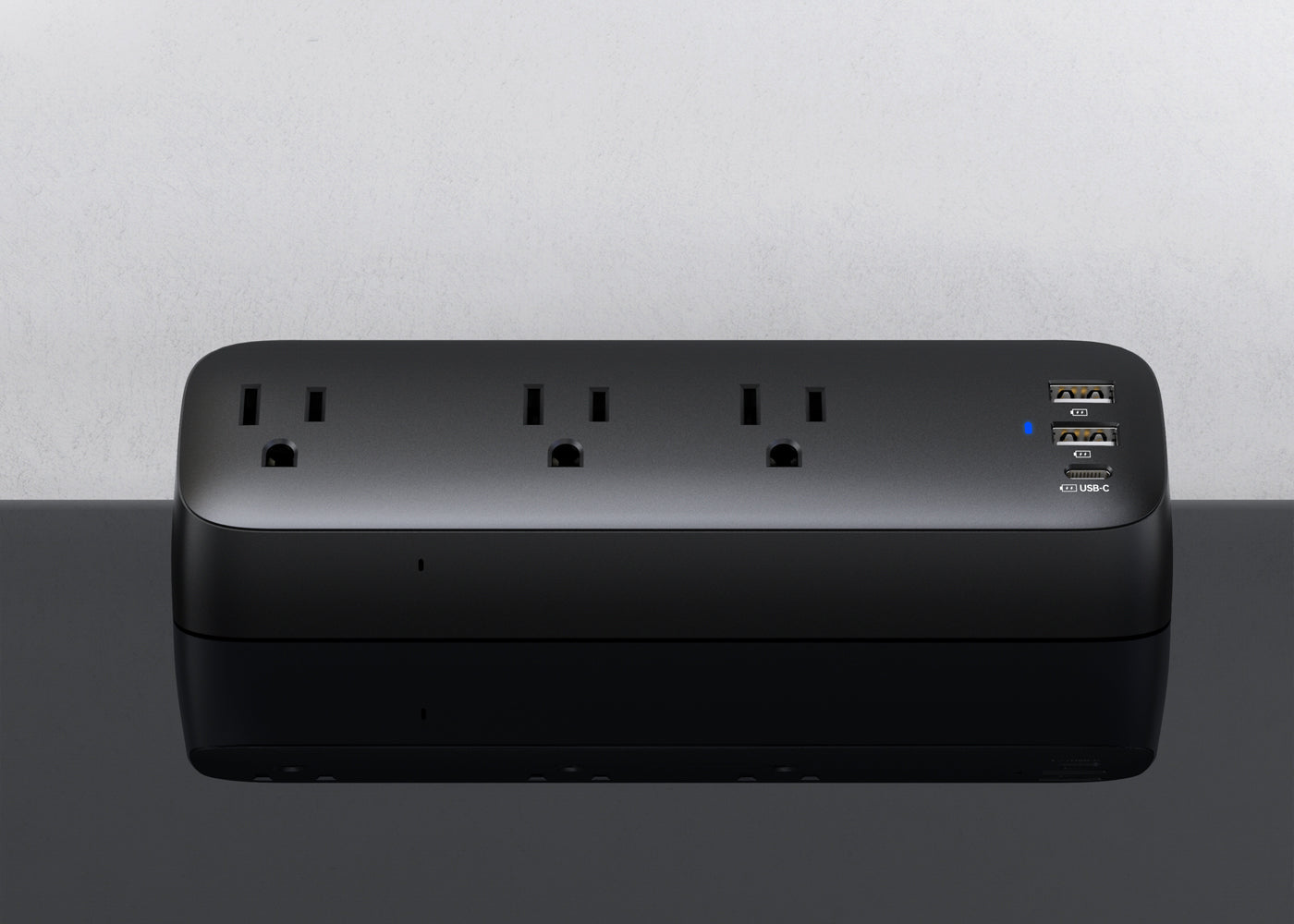

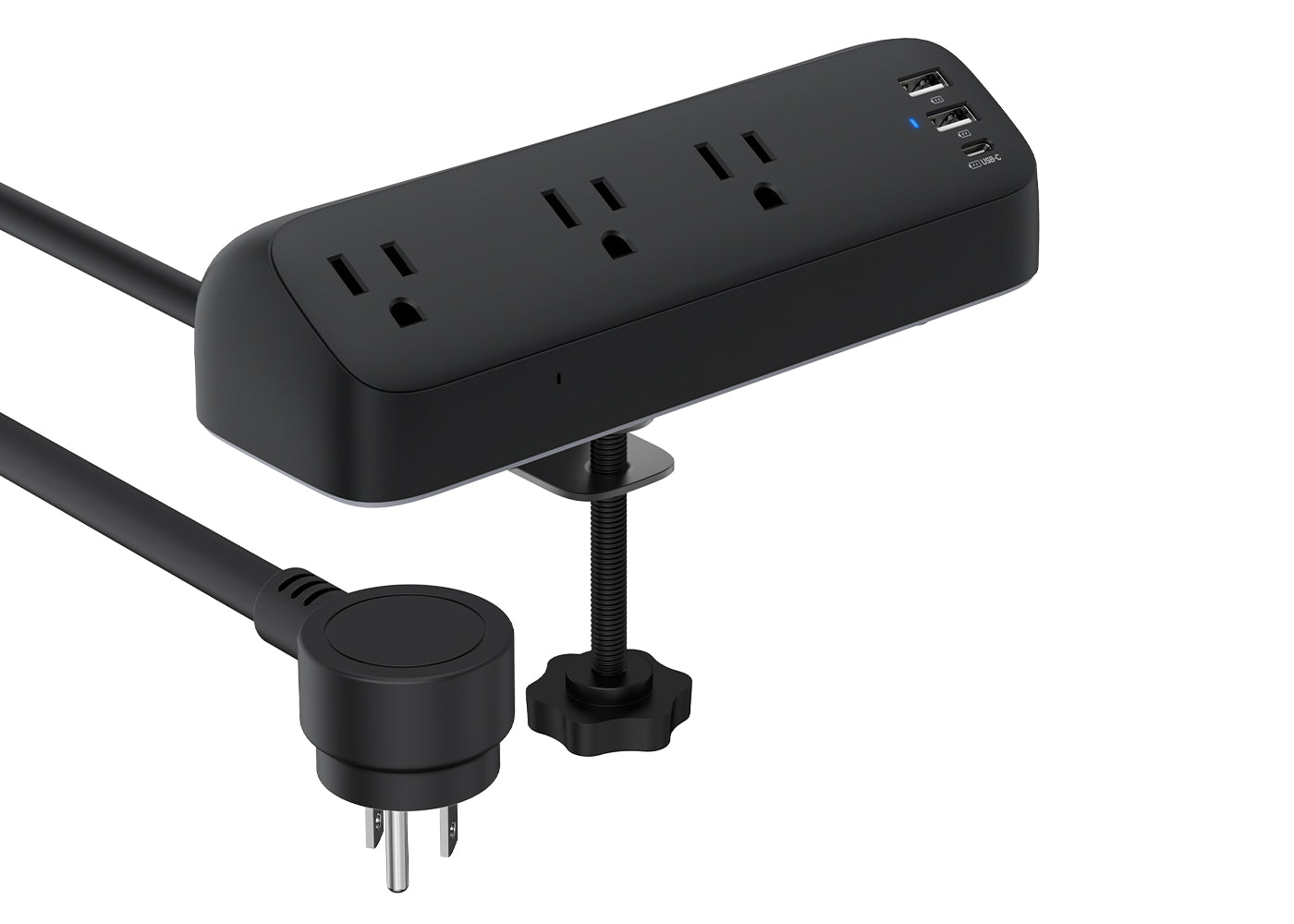

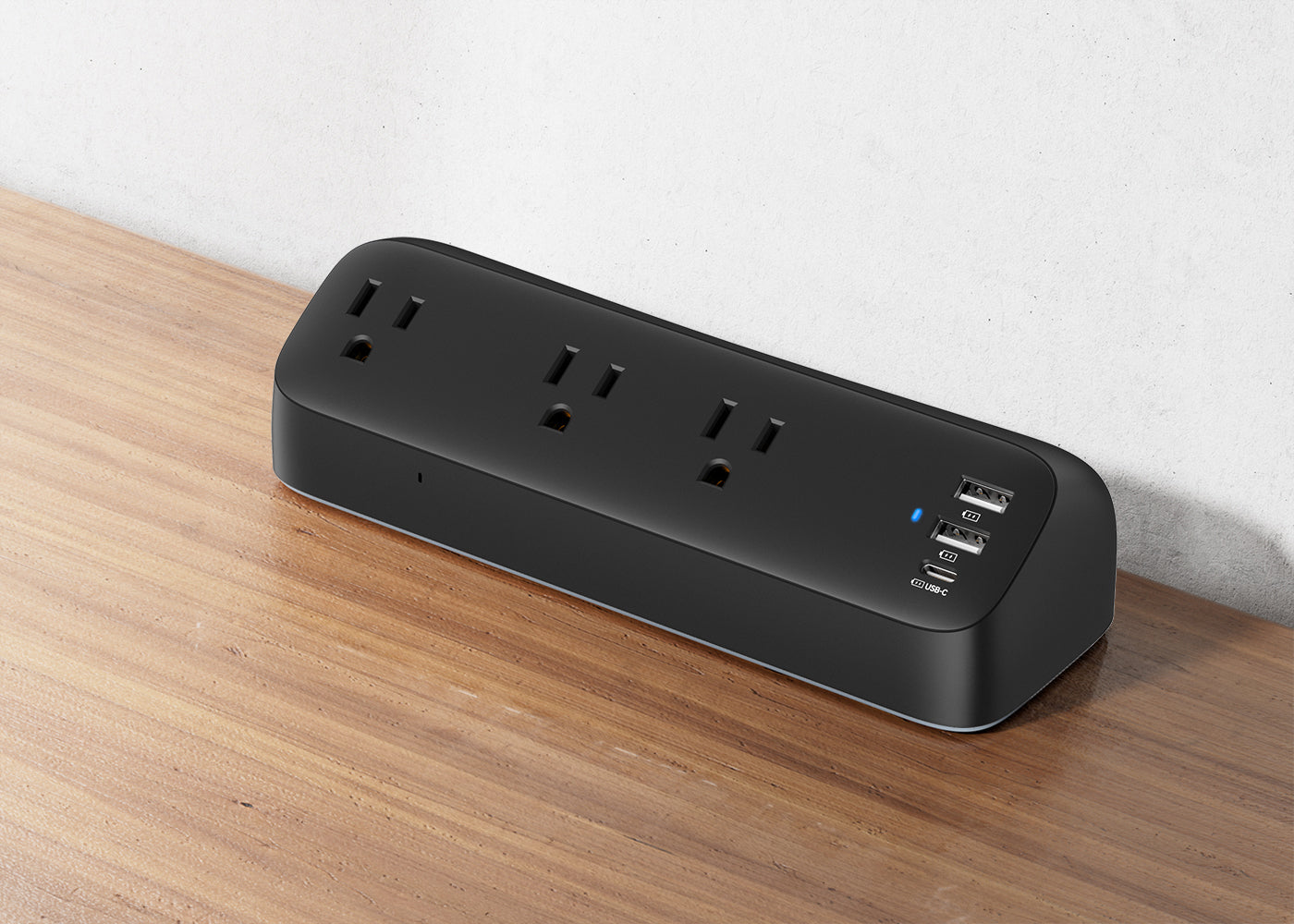

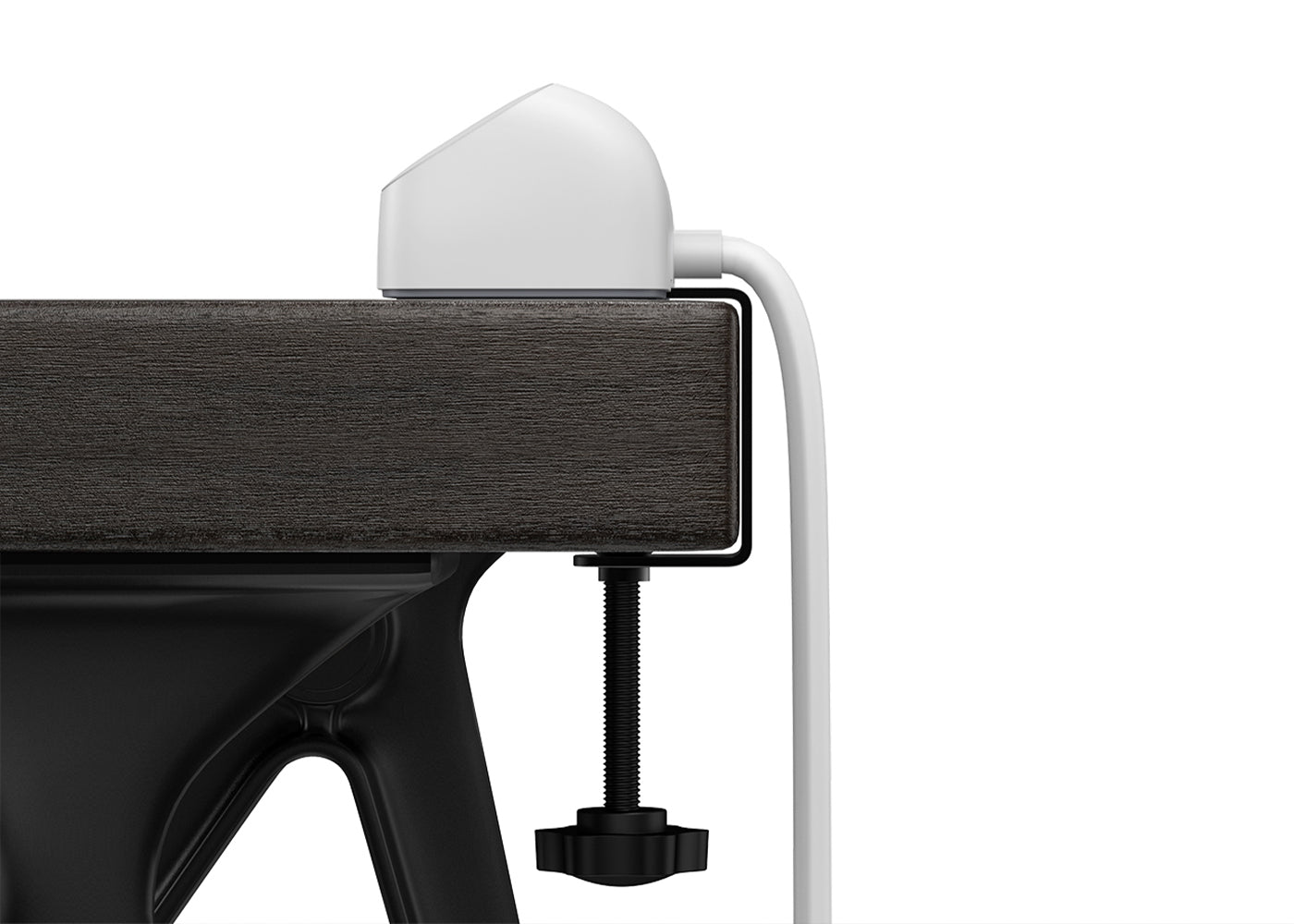

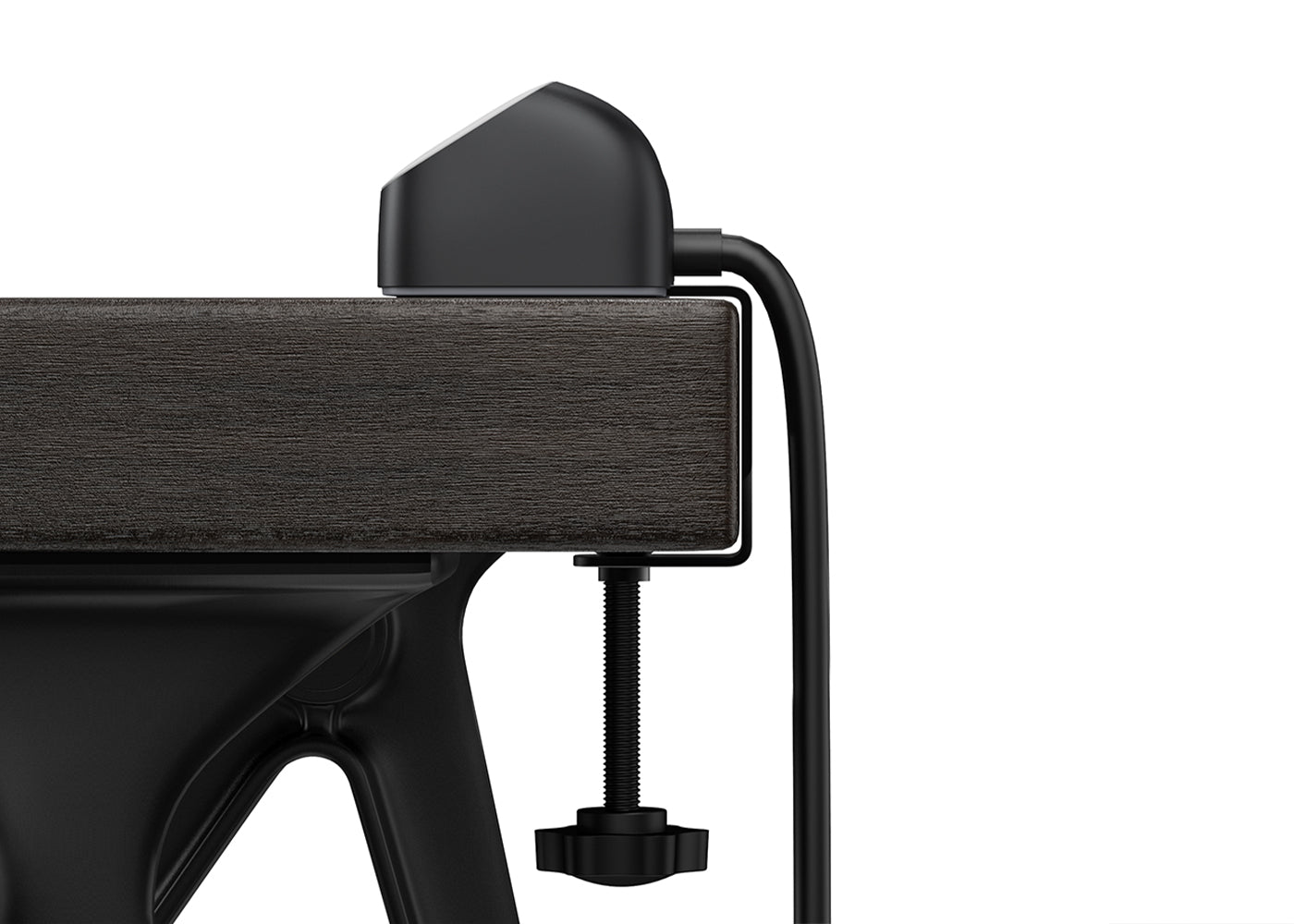

ChargePort Plus is an attractive power and charging solution designed with hotel guest rooms in mind. It clamps securely onto the back of a desk or nightstand and simply plugs into a 120V, US 3-pin NEMA outlet.

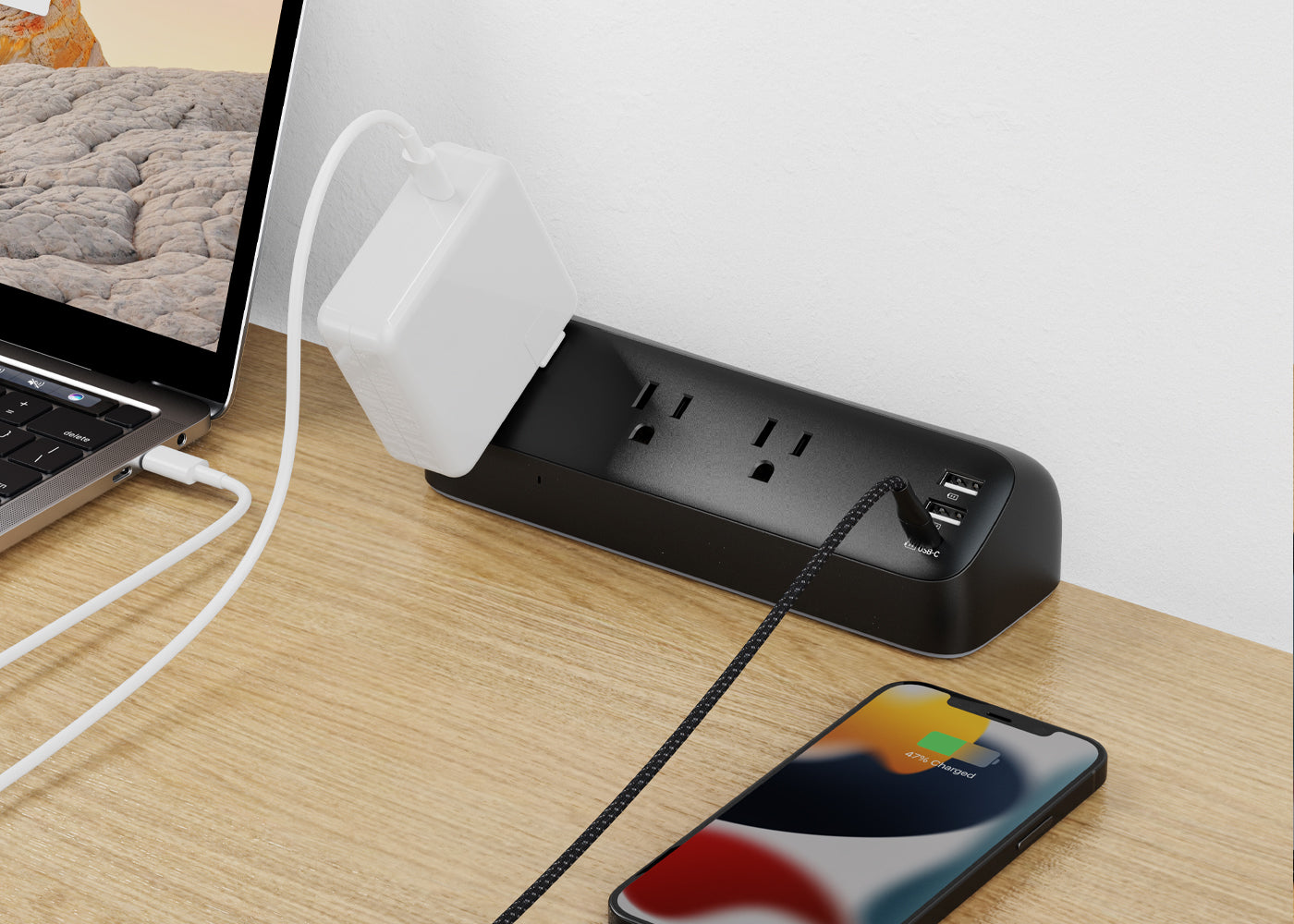

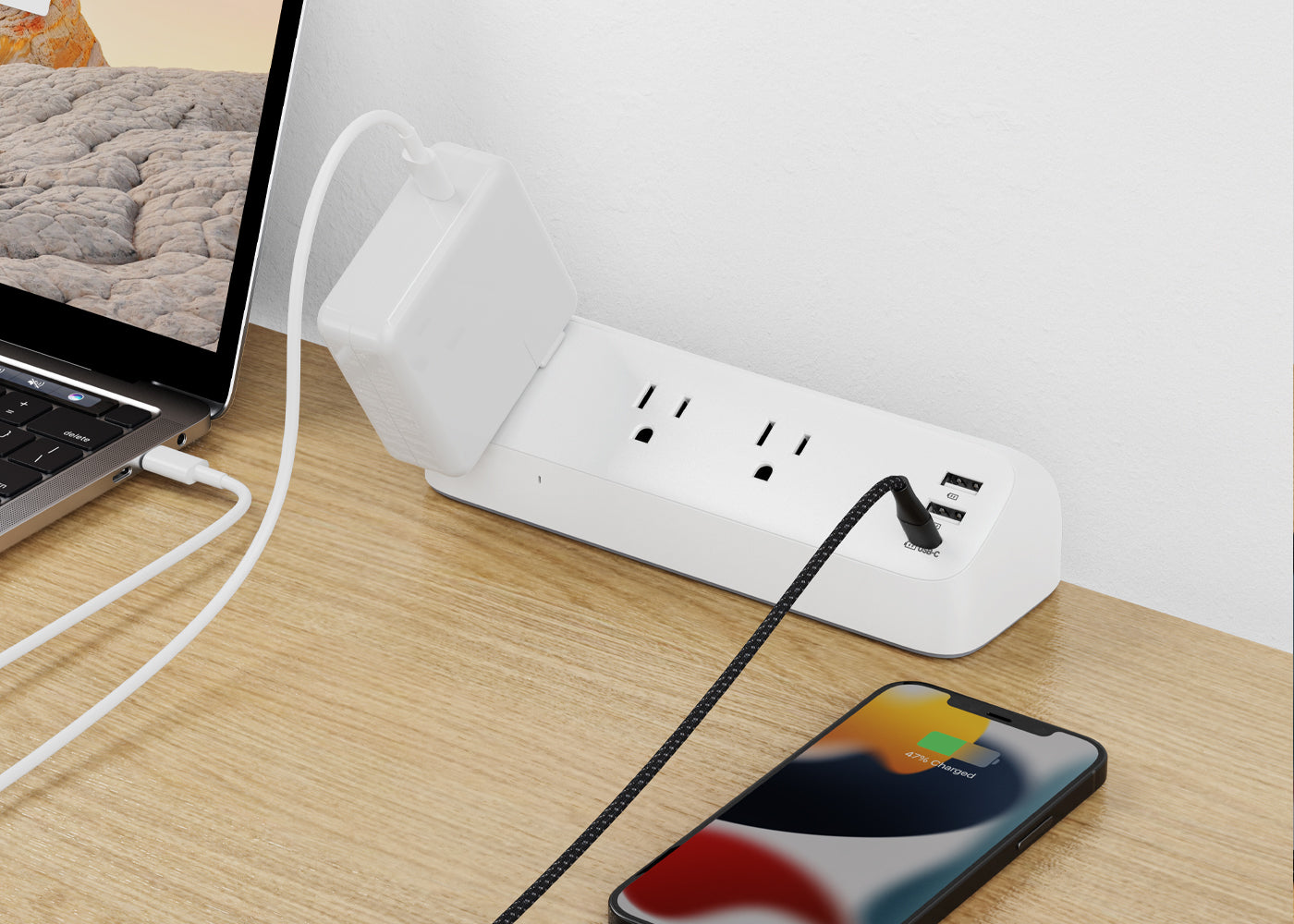

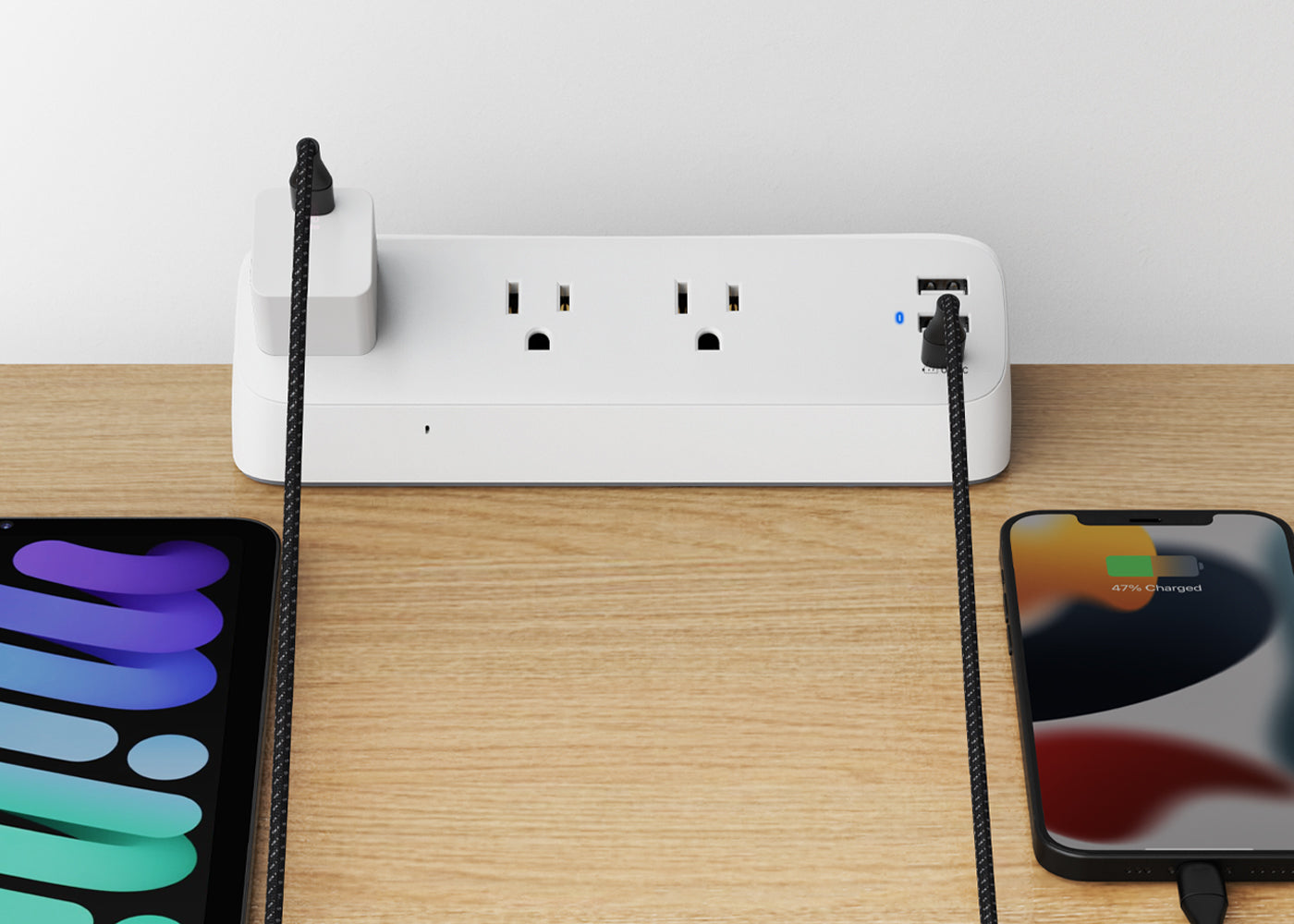

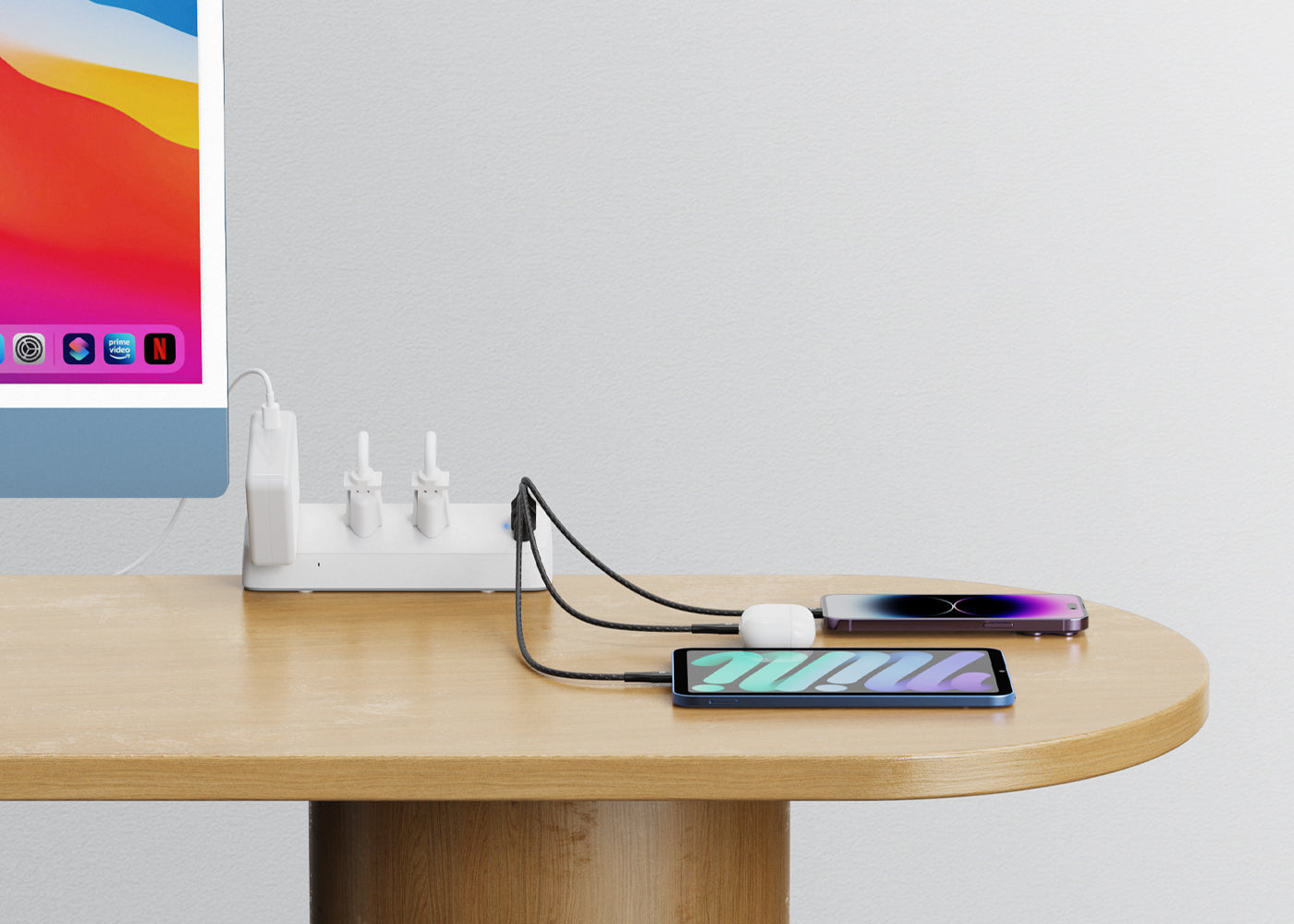

The 3 conveniently sited mains outlets, which are protected by a user resettable safety cutout, can supply a total of 15A. In addition there are 3 USB charging sockets which can provide up to 32W for fast charging.
Safety and Certification
The built-in charger benefits from over-voltage protection (OVP), over-current protection (OCP), short circuit protection (SCP) and over temperature protection (OTP) with auto-revovery. This gives you peace of mind, in the event a guest connects a faulty cable, the built-in charger will shut itself down until the faulty cable is removed.
Security

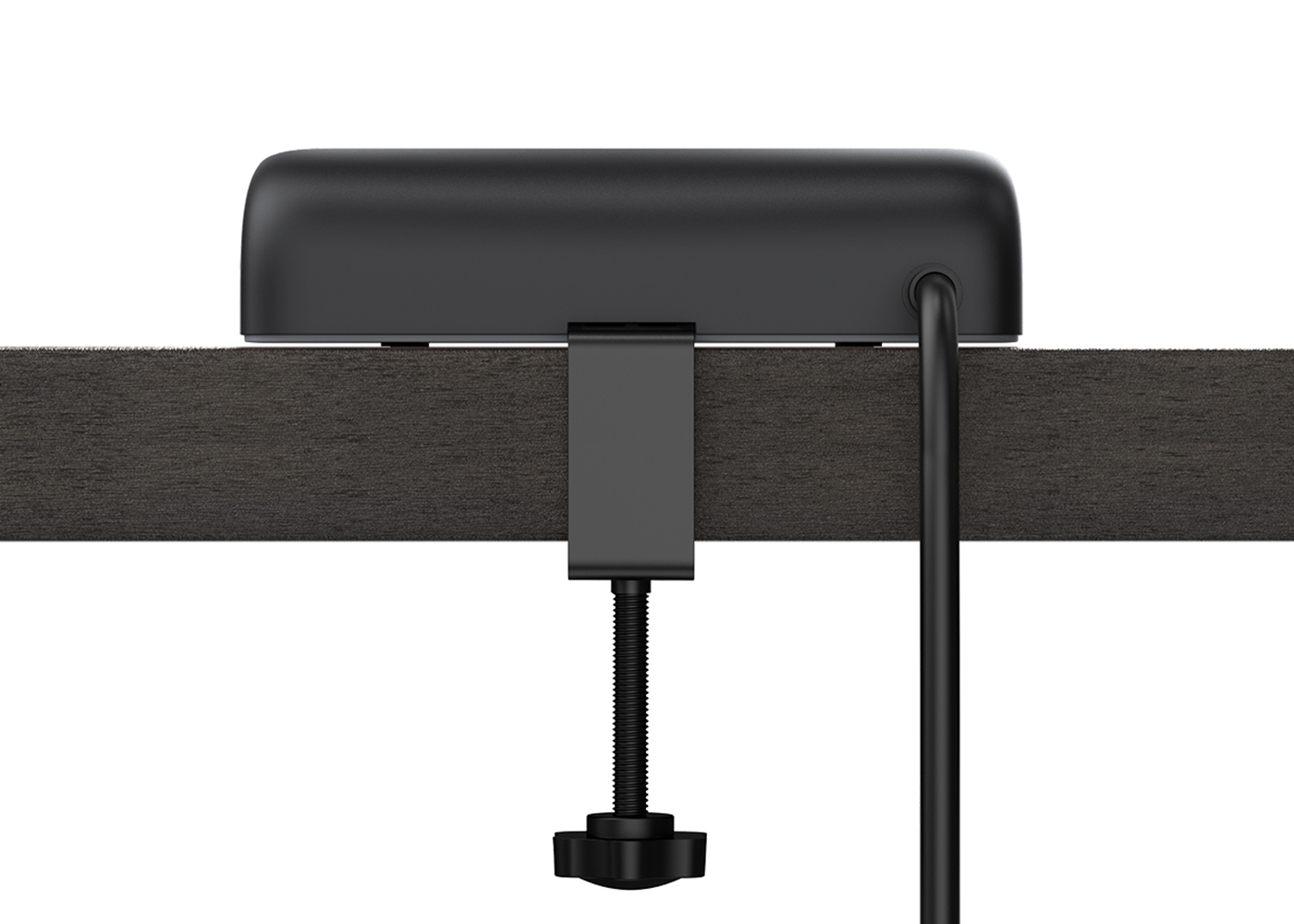

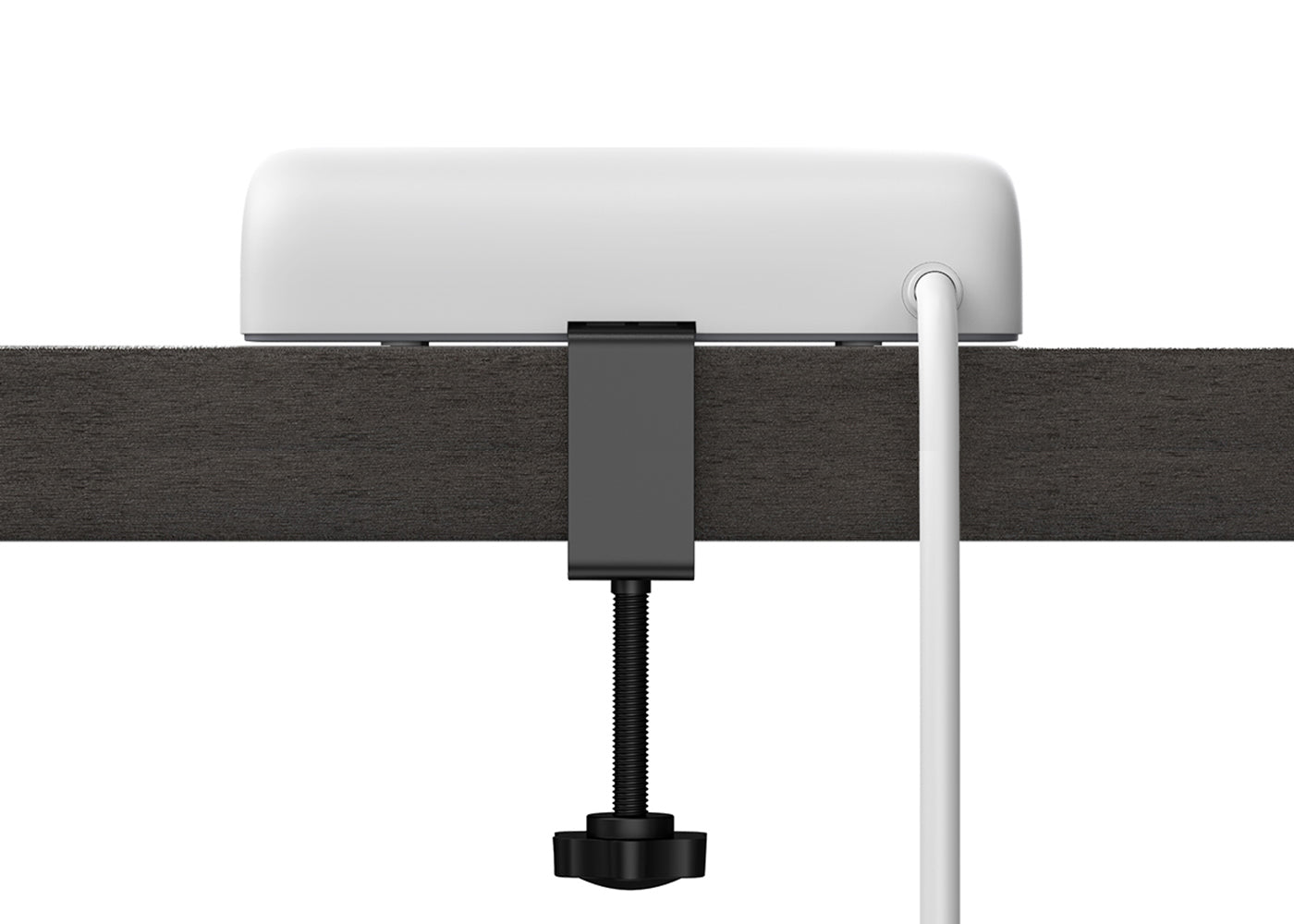

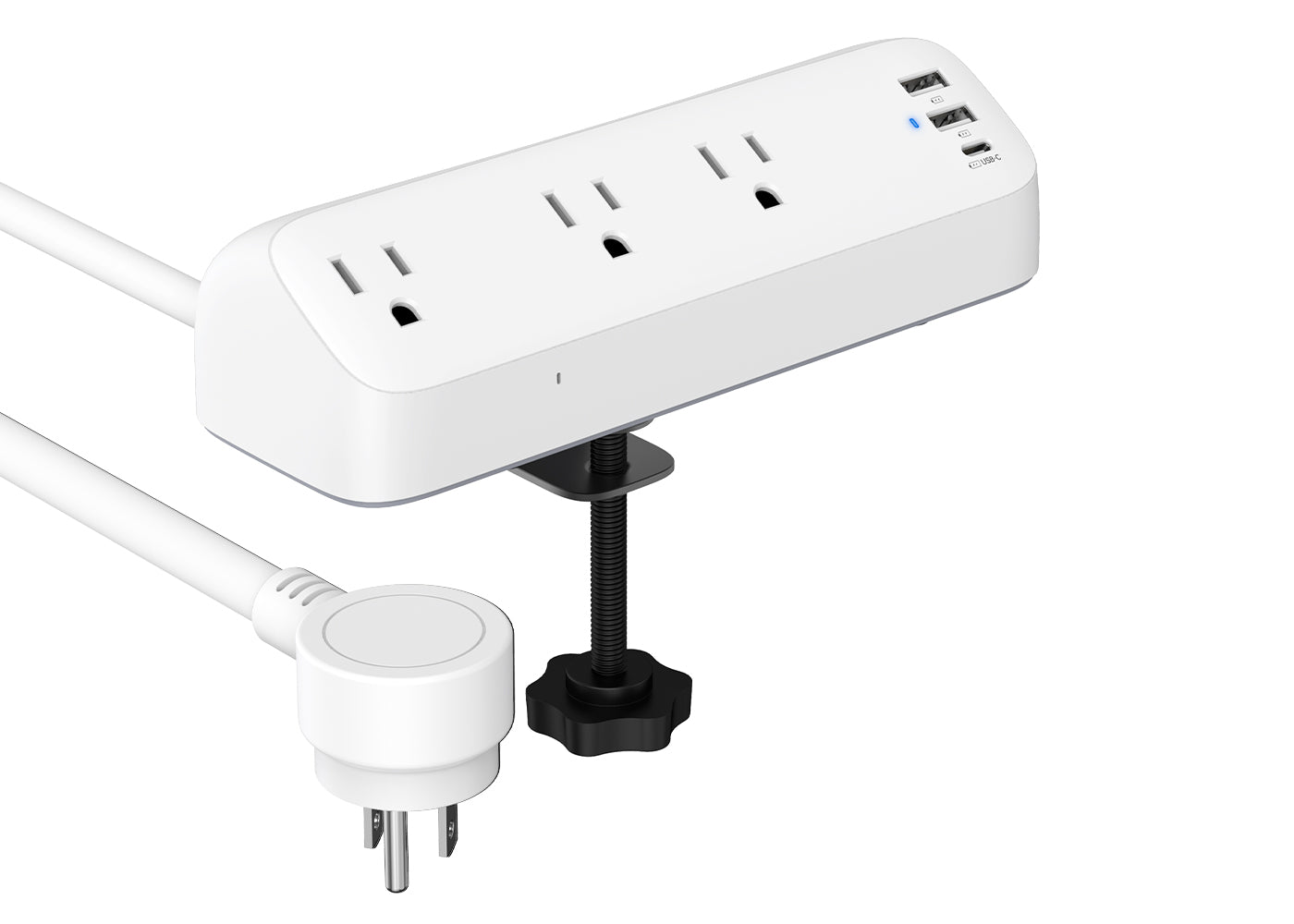

Supplied with a desk clamp, double sided adhesive pad and cable clamp. Choose the fixing option that suits your guest room.
Colors

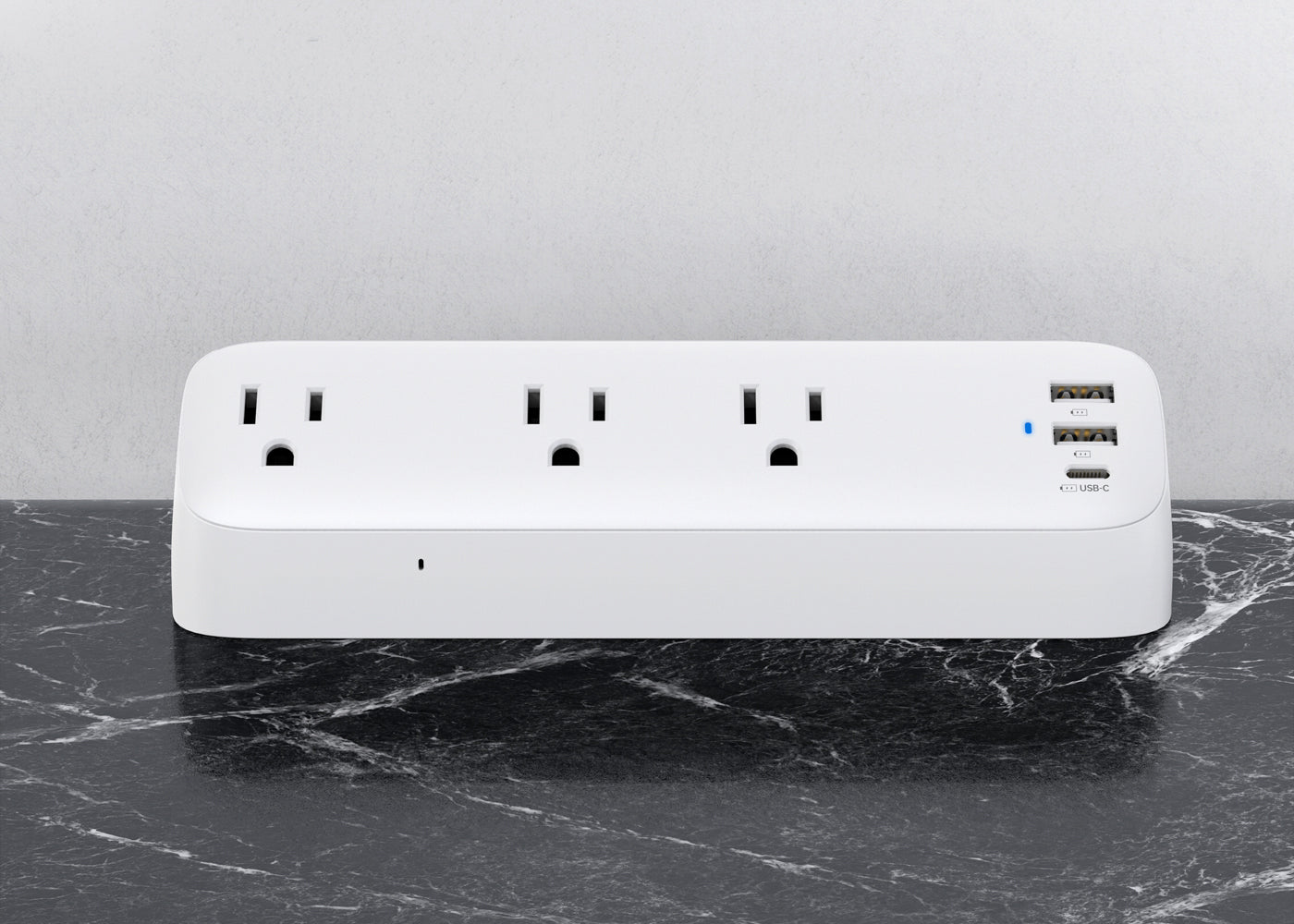

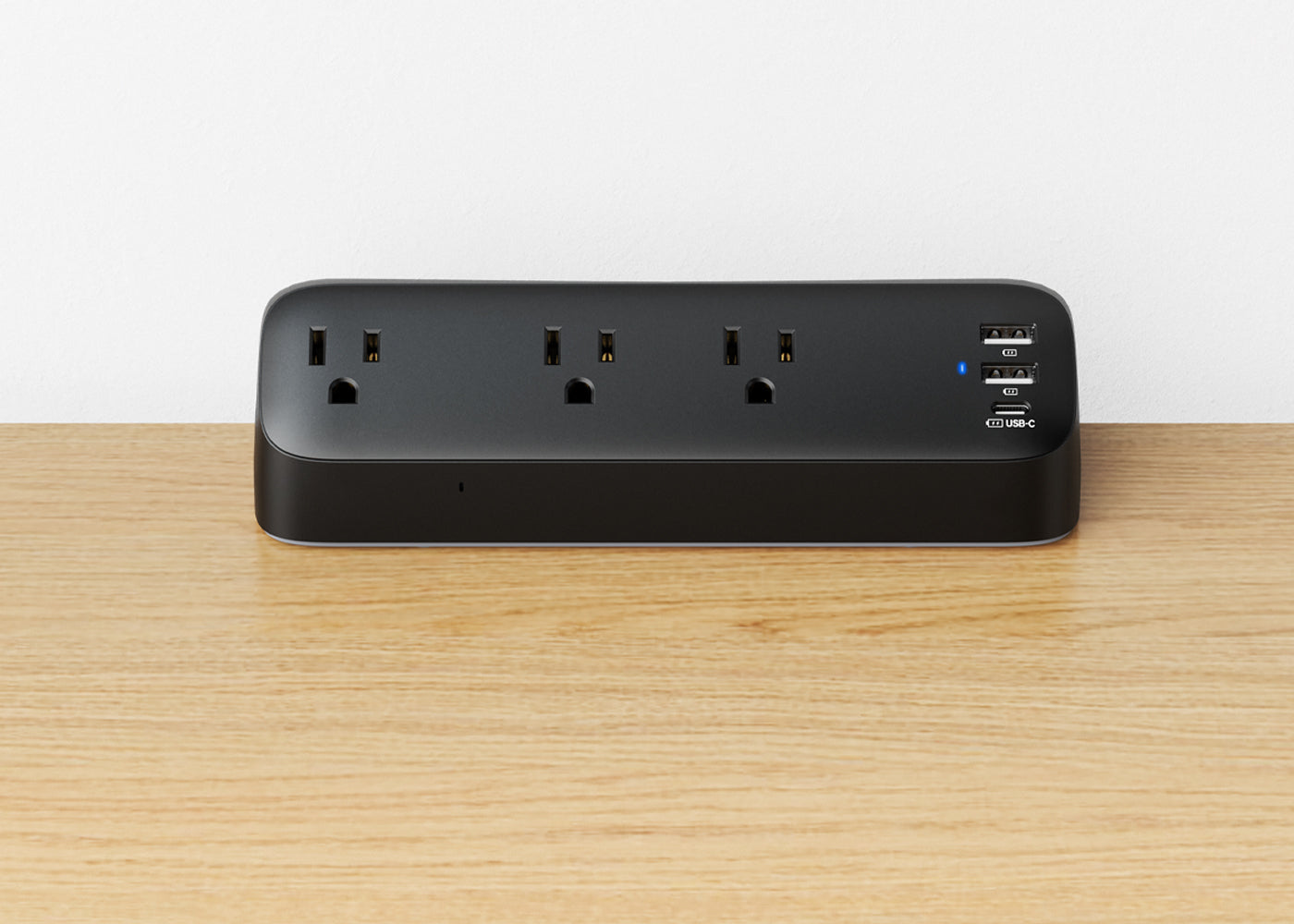

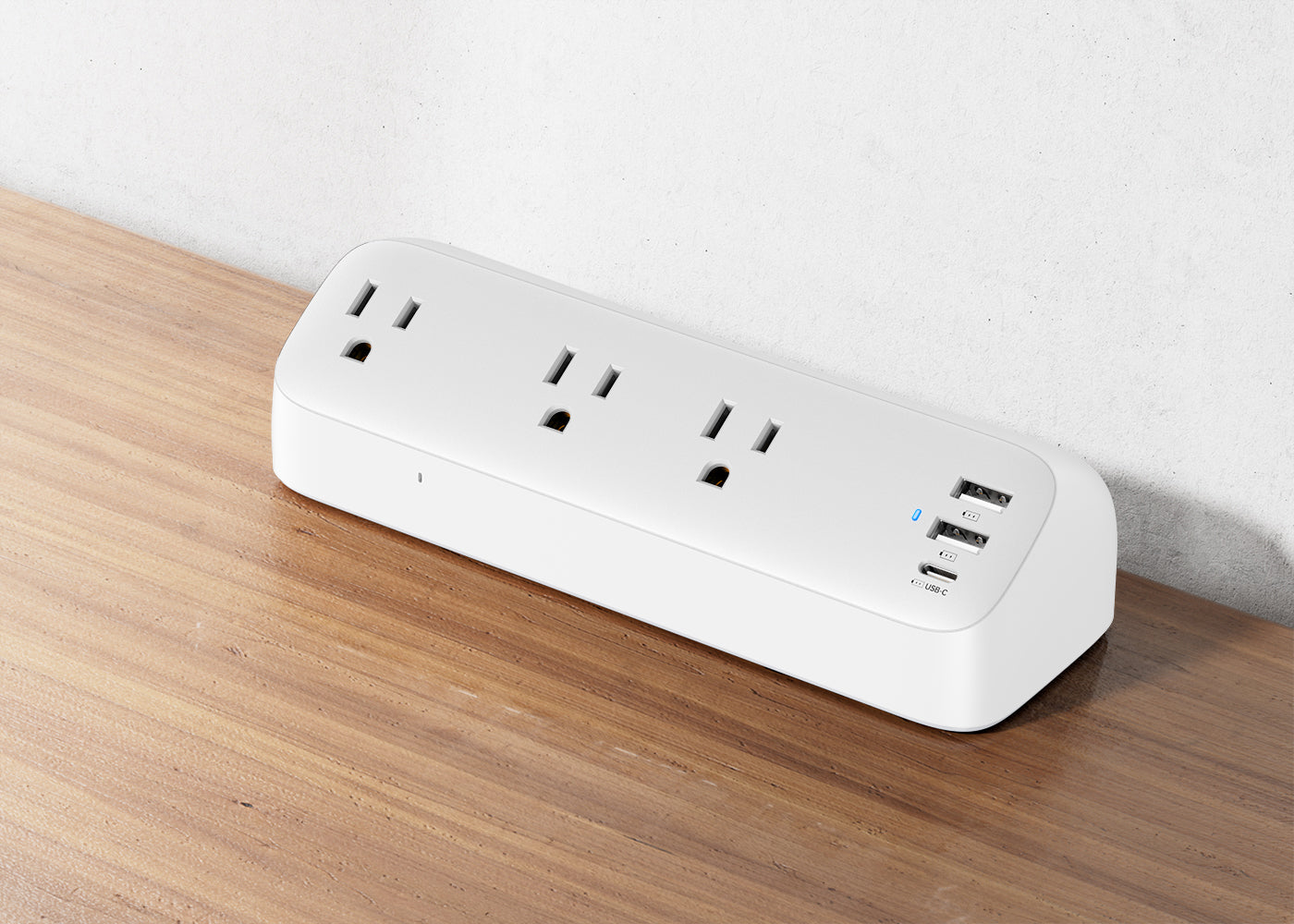

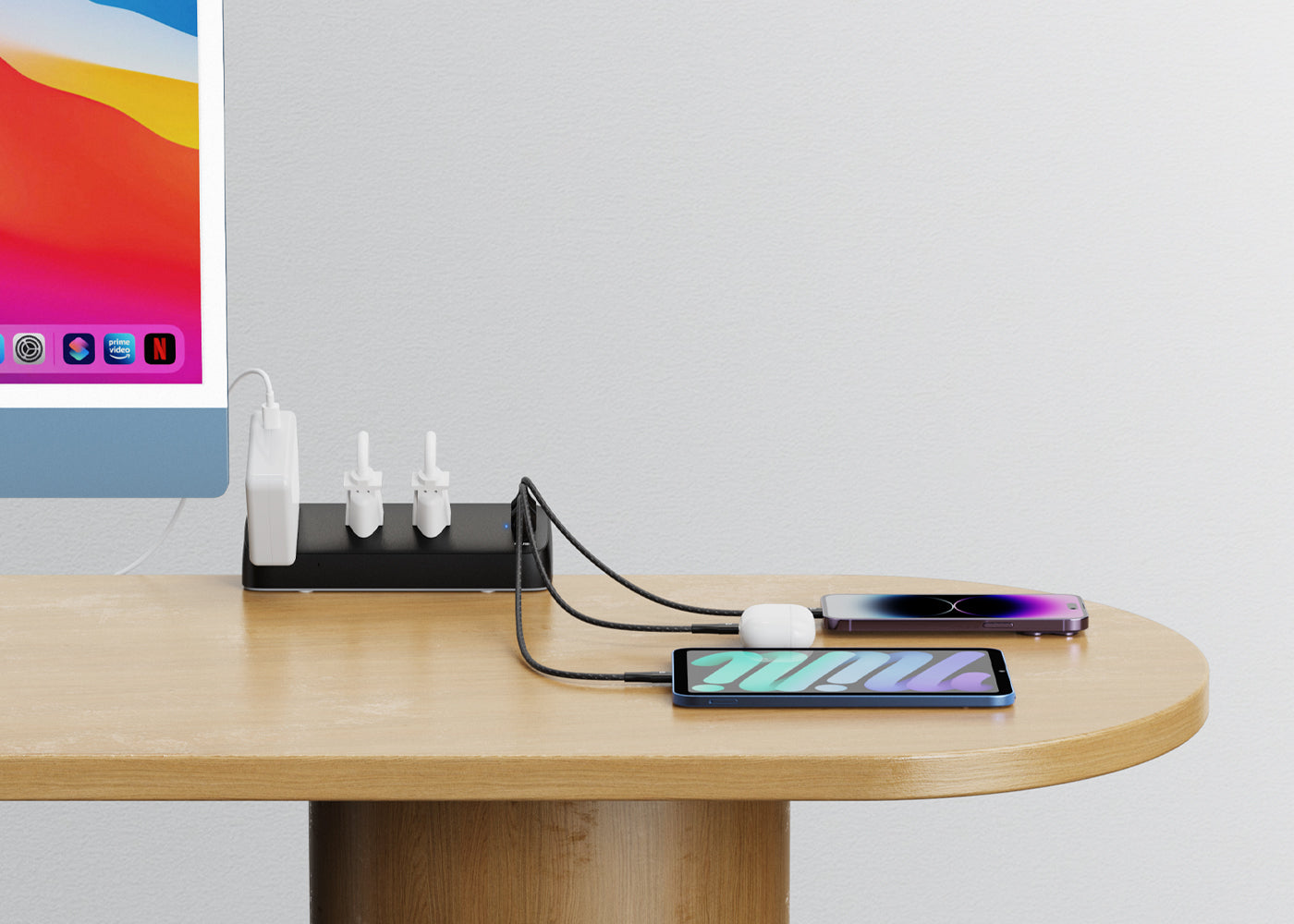

ChargePort Plus is available in black or white, simply choose which one suits your décor best.
ChargePort Plus
ChargePort Plus is an attractive power and charging solution designed with hotel guest rooms in mind. It clamps securely onto the back of a desk or nightstand and simply plugs into a 120V, US 3-pin NEMA outlet.
The 3 conveniently sited mains outlets, which are protected by a user resettable safety cutout, can supply a total of 15A. In addition there are 3 USB charging sockets which can provide up to 32W for fast charging.
Safety and Certification
The built-in charger benefits from over-voltage protection (OVP), over-current protection (OCP), short circuit protection (SCP) and over temperature protection (OTP) with auto-revovery. This gives you peace of mind, in the event a guest connects a faulty cable, the built-in charger will shut itself down until the faulty cable is removed.
Security
Supplied with a desk clamp, double sided adhesive pad and cable clamp. Choose the fixing option that suits your guest room.
Colors
ChargePort Plus is available in black or white, simply choose which one suits your décor best.
ChargePort Plus Specifications
- Durable construction designed for everyday use.
- Simple to install, can be clamped to the rear of a desk.
- 3 x NEMA 5-15R (15A maximum across all 3 sockets).
- 15A safety cutout, user resettable.
- USB Charging unto 32W .
- 2 x USB A charging sockets (5V/2.4A shared across both sockets).
- 1 x USB Type-C charging socket with USB Power Delivery, 5V/3A, 9V/3A, 15V/2A (if used with USB A then 5/3A, 9V/2.2A).
- Over voltage, over current, over temperature and short circuit protection (OVP, OCP, OTP and SCP) with auto reset.
- Integrated 2 metre mains cable
- ETL tested to UL STD 962A and CSA STD C22.2 No.308 including spill test.
- Cable clamp, double sided adhesive pad and cable clamp supplied giving three security fixing options.
ChargePort Plus Downloads
TA-7810 ChargePort Plus Datasheet.pdfTA-7810 ChargePort Plus Install Guide.pdf
