ChargePort Pro Universal
Request QuoteAvailable Early Q3 2024.
TA-7820U

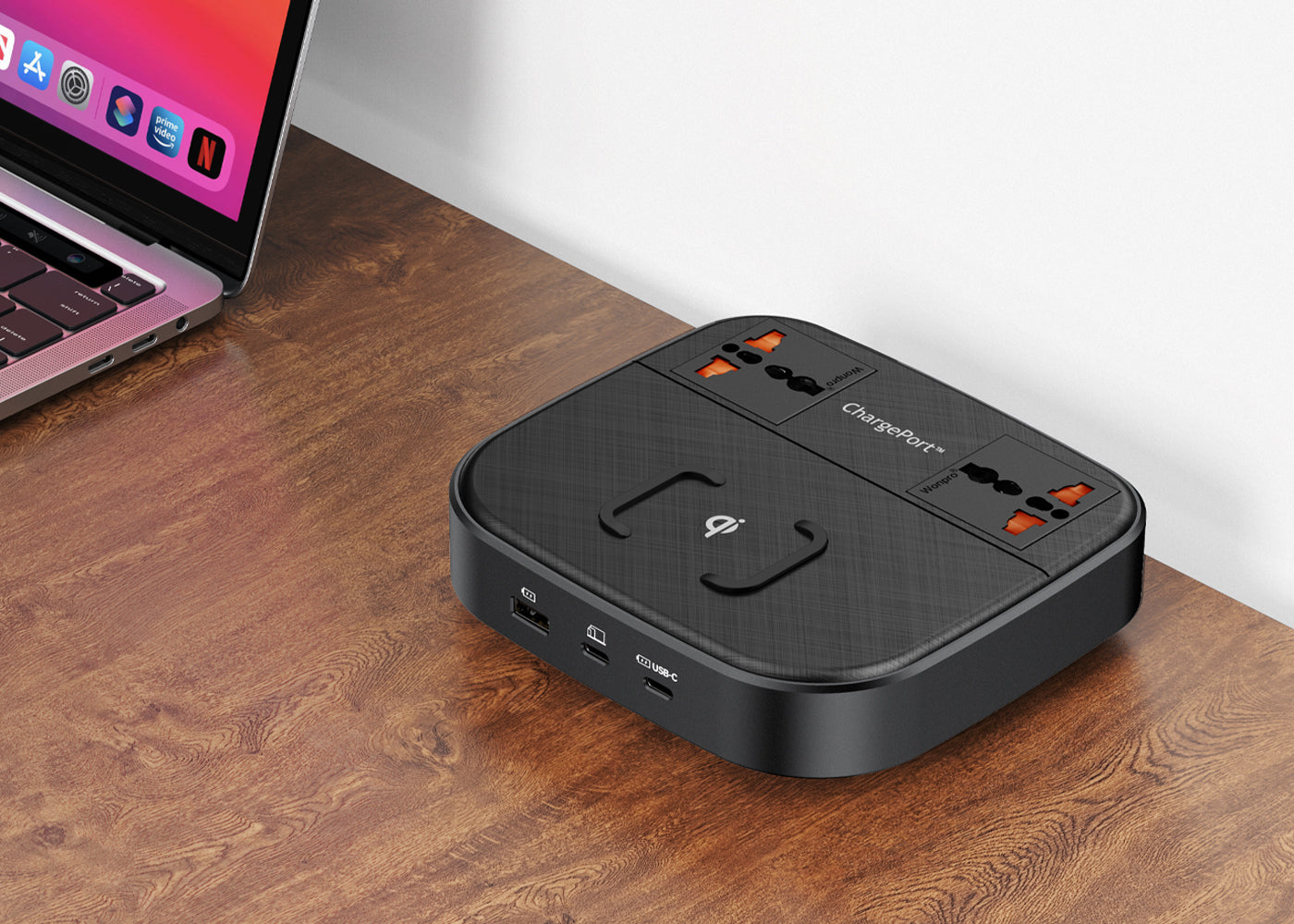

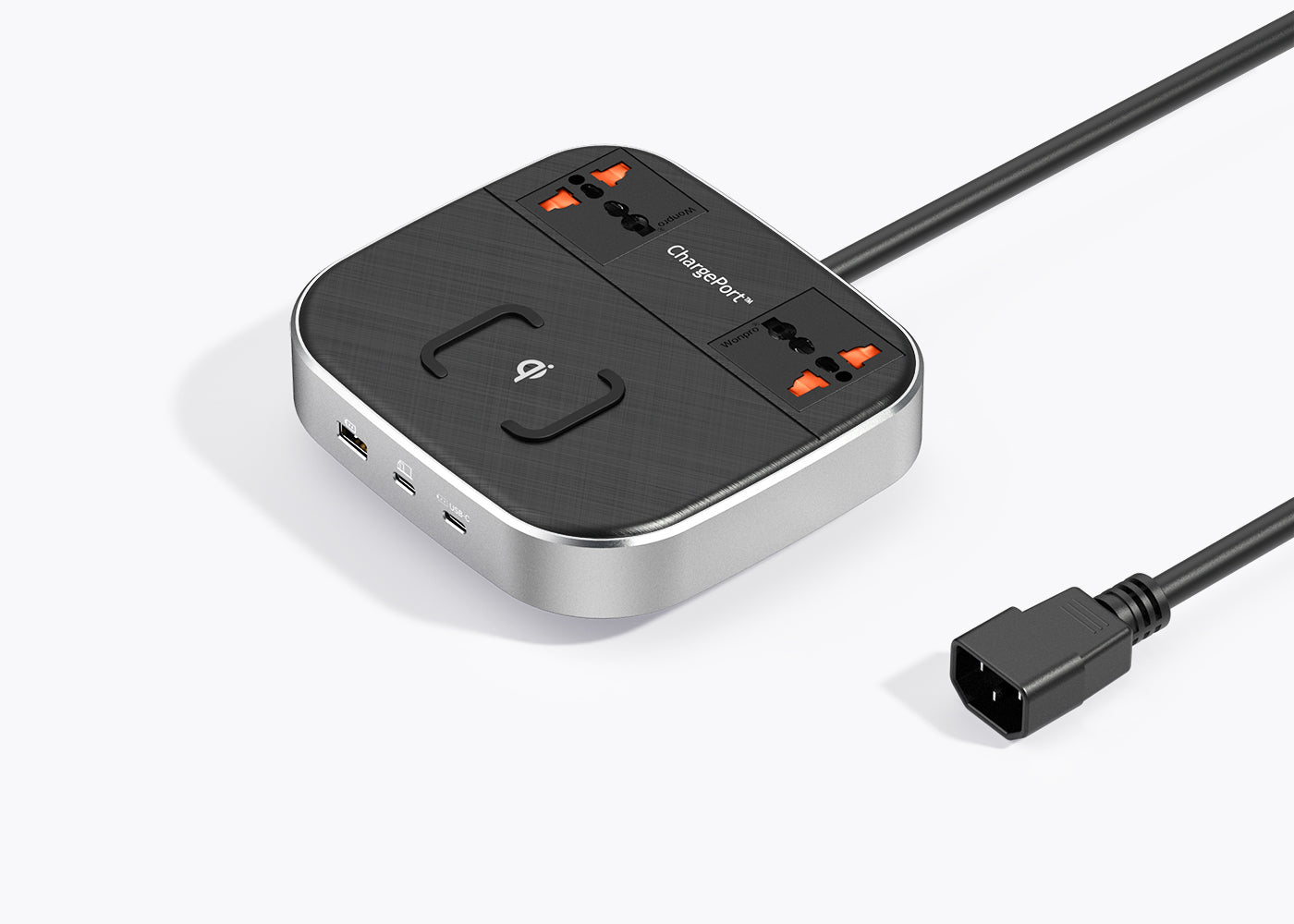

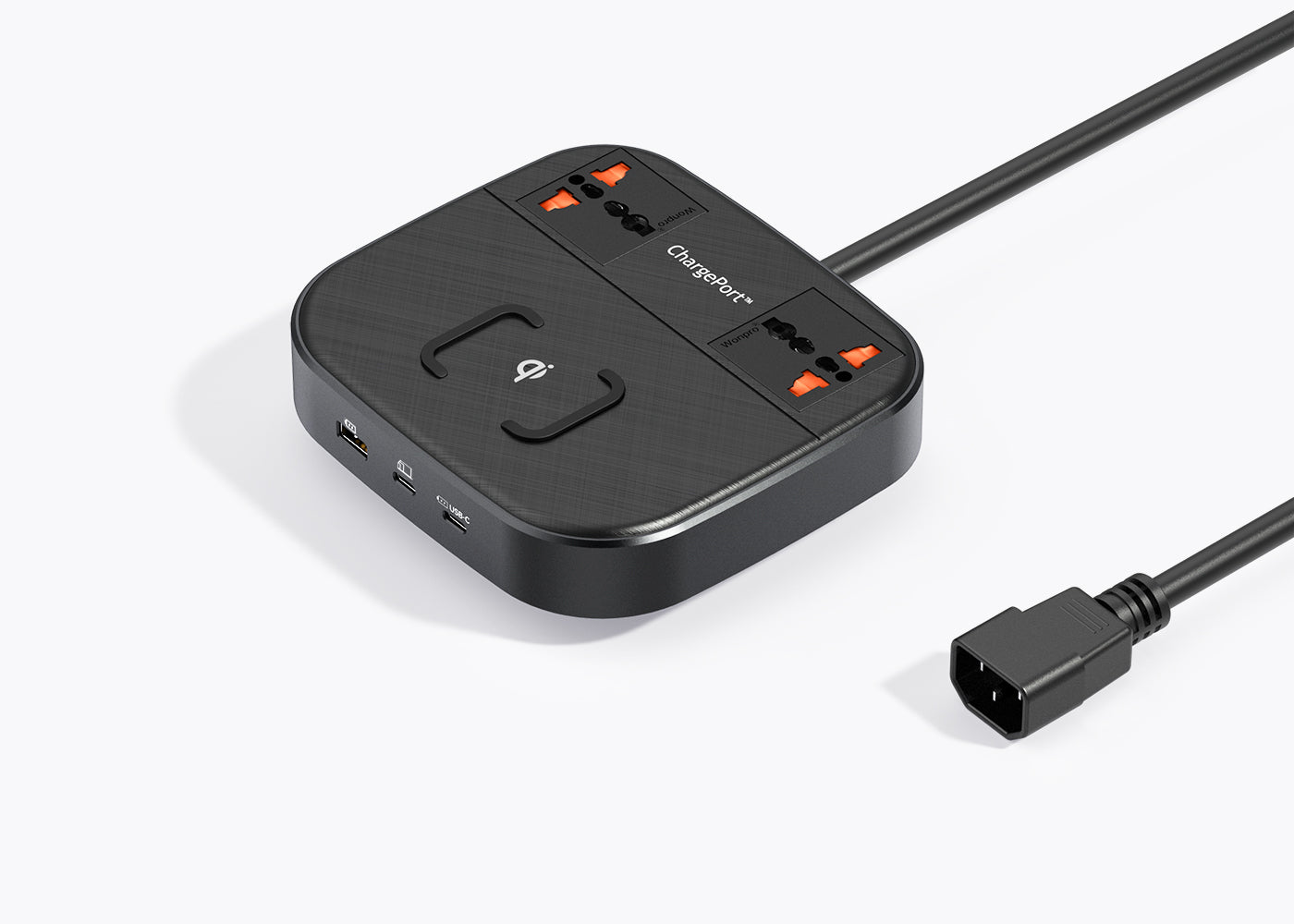

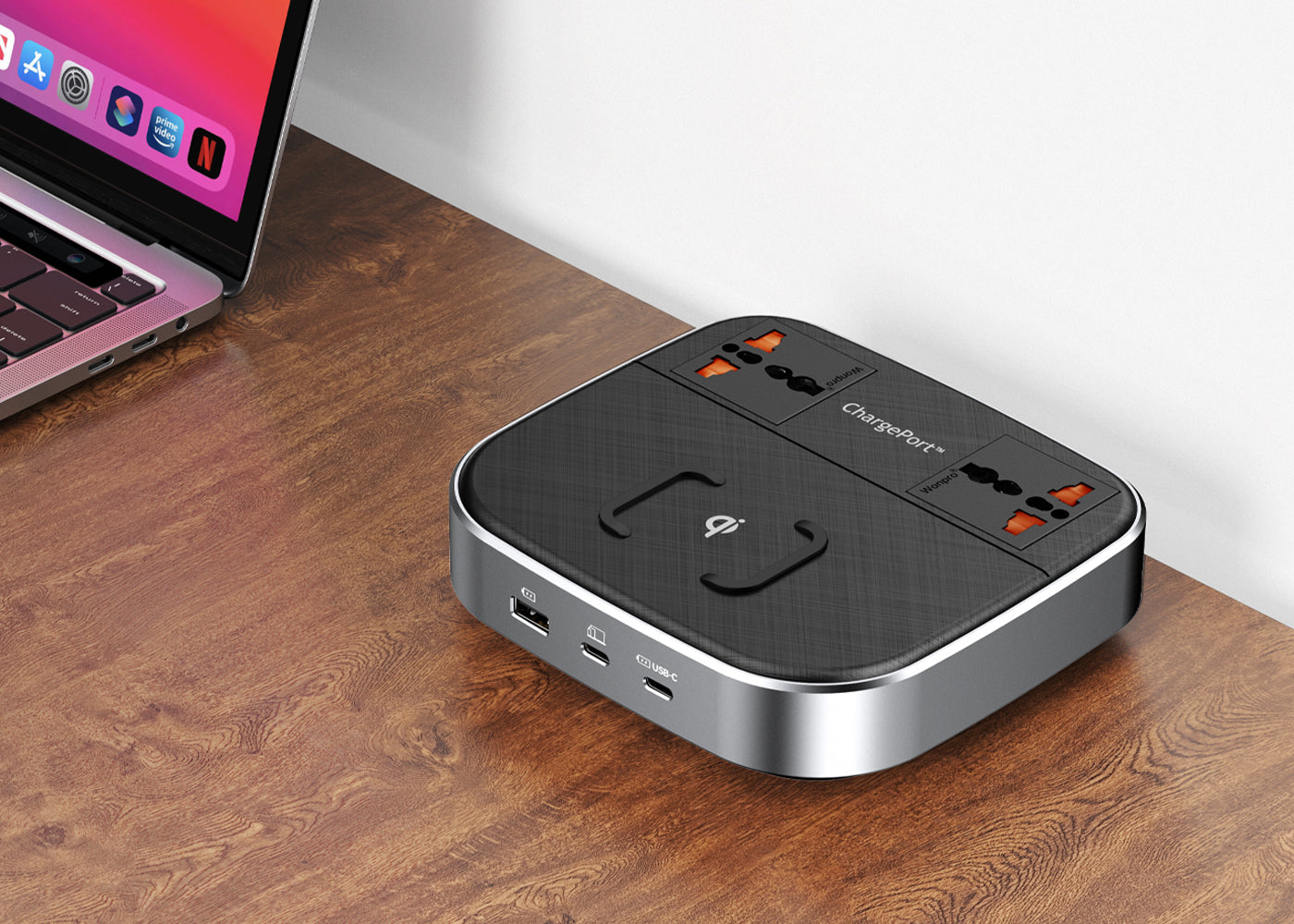

ChargePort Pro Universal is compact and stylish to blend easily with your décor choices and is available in either black or black/silver. Use of the latest integrated GaN technology ensures minimum size and maximum efficiency and power output.
Dual Mains Outlets and Qi
ChargePort Pro Universal features dual universalmains outlets which are rotated to maximise flexibility and can supply a total of up to 10A.
The top surface has an integrated 10W Qi wireless charging pad. Simply place your Qi compatible smartphone on the charging pad to enable charging.

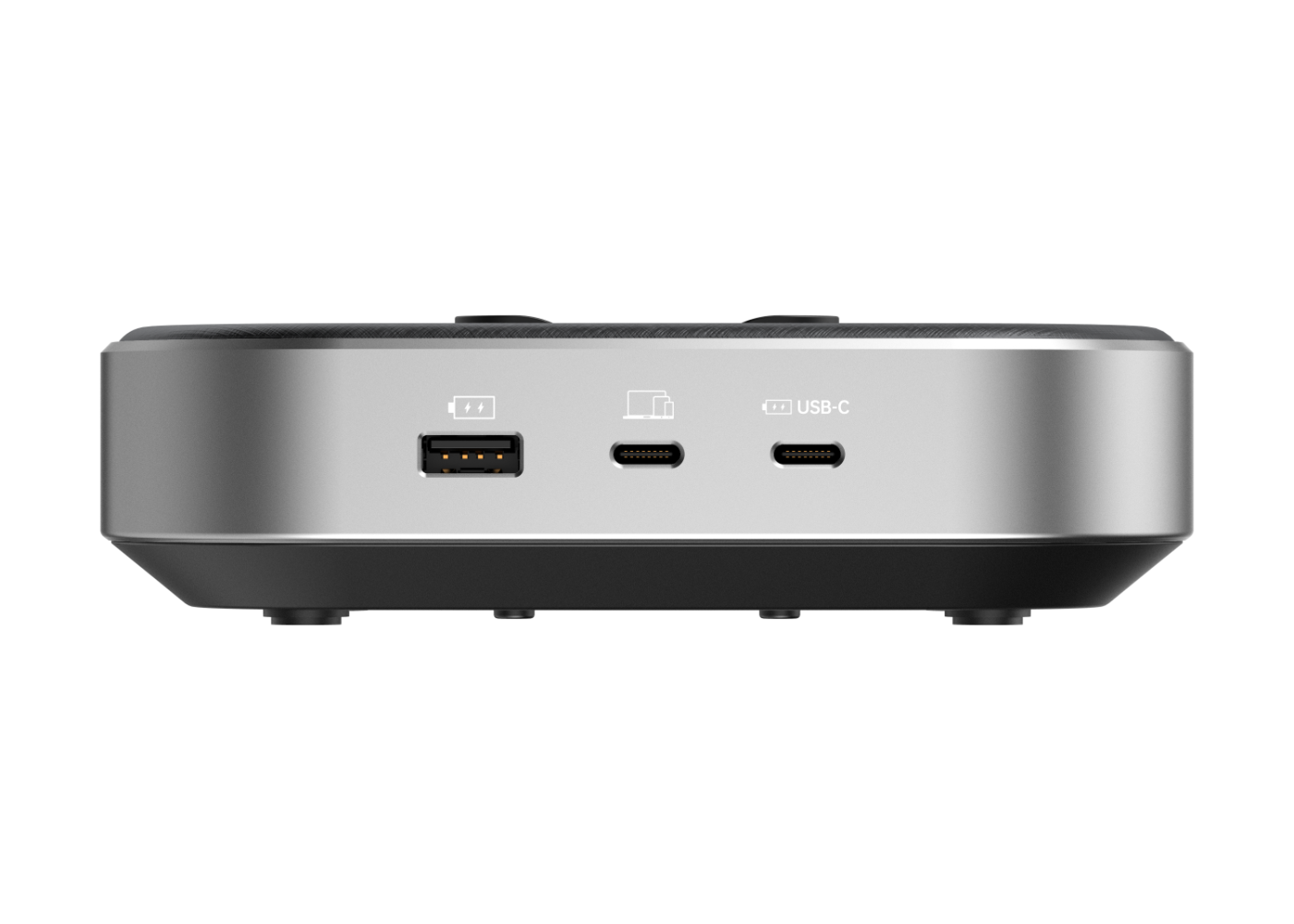

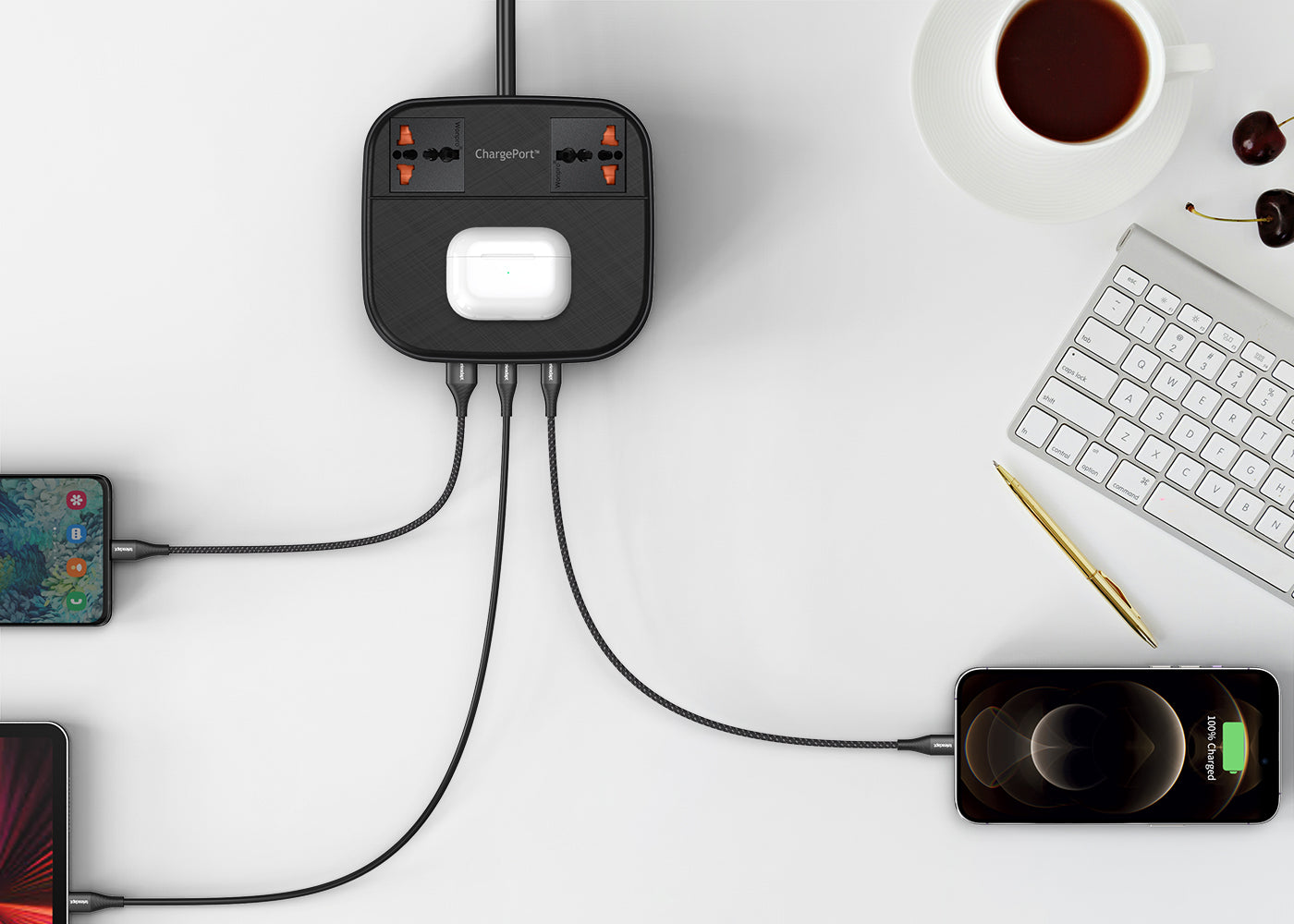

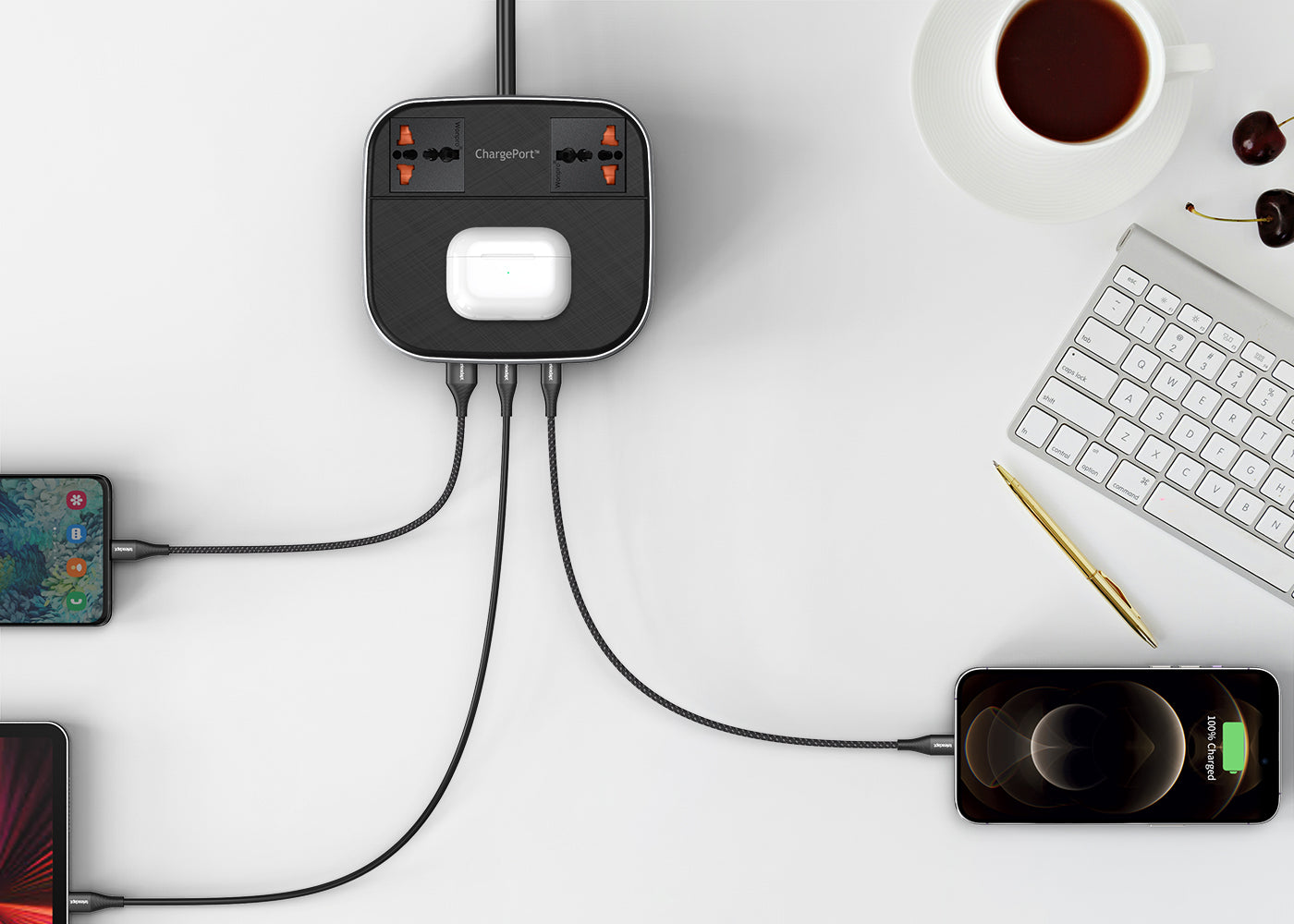

Triple USB Charging
Three USB charging outlets can supply a total of up to 67 w watts.
The two USB-C outlets can charge up to 45 watts (shared) for smartphones, tablets and laptops.
In addition USB Type-A is also provided and supports 5V at up to 2.4A (12 watts) making it suitable for charging smartphones and tablets.

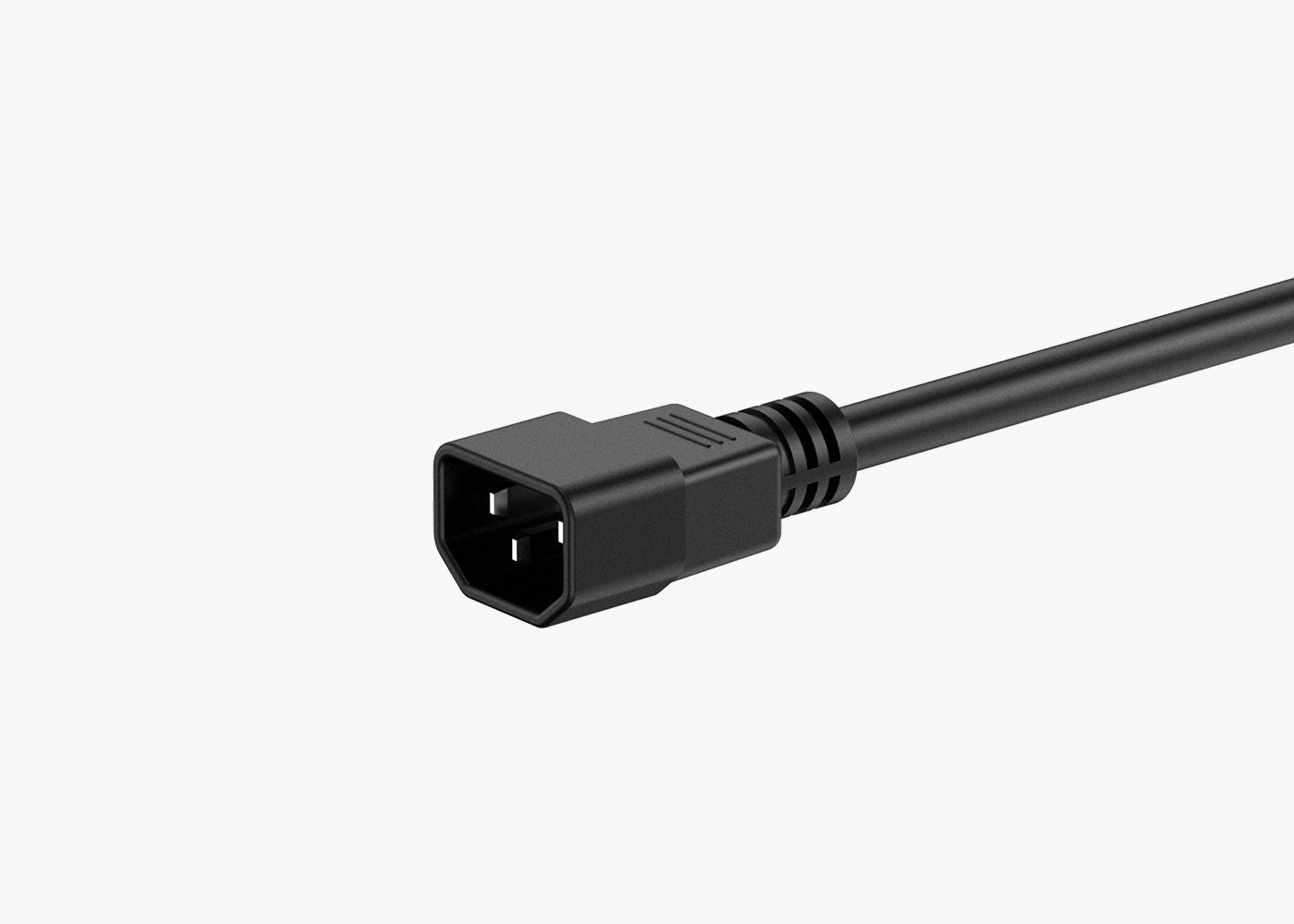

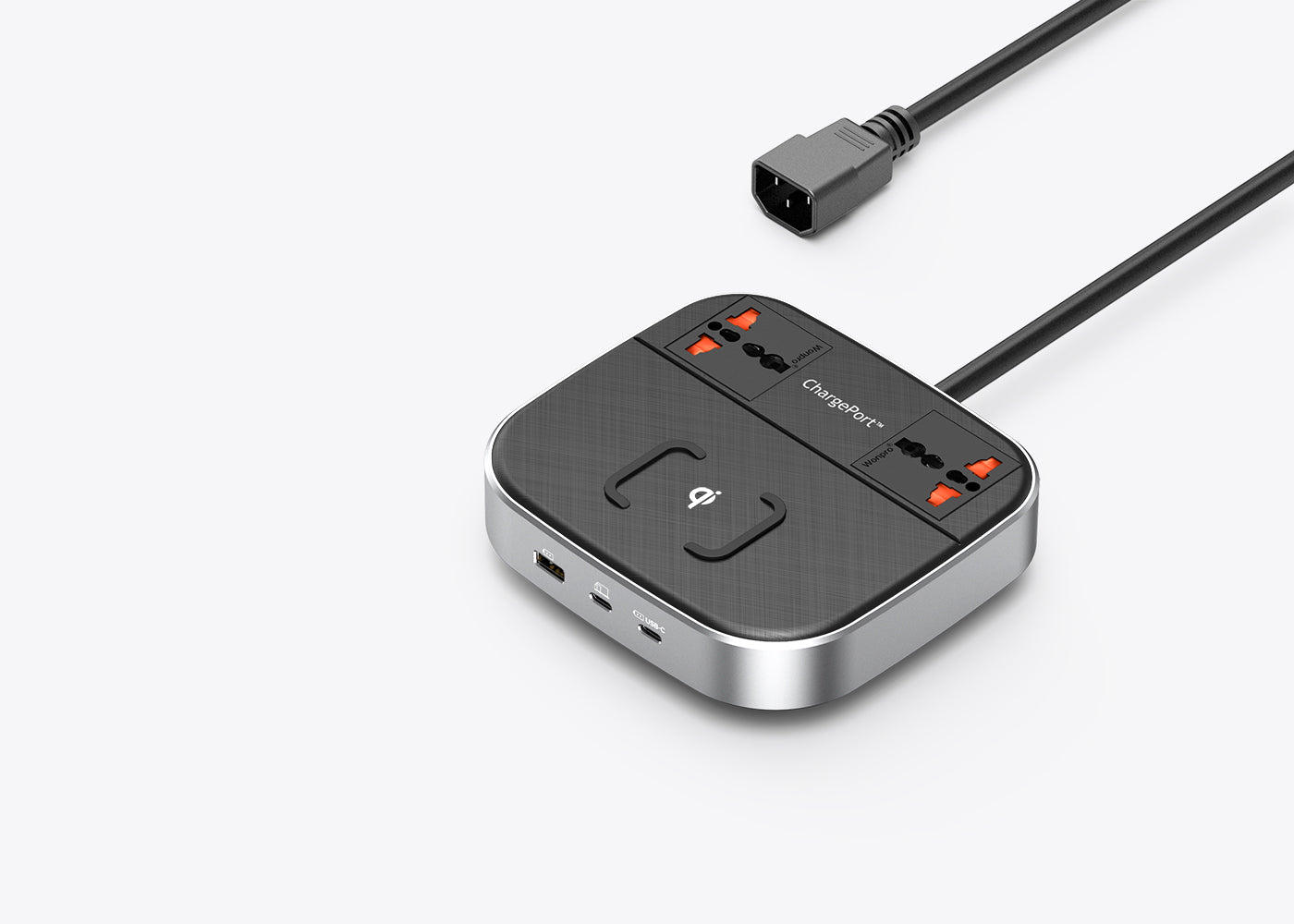

Inline C14 Connector

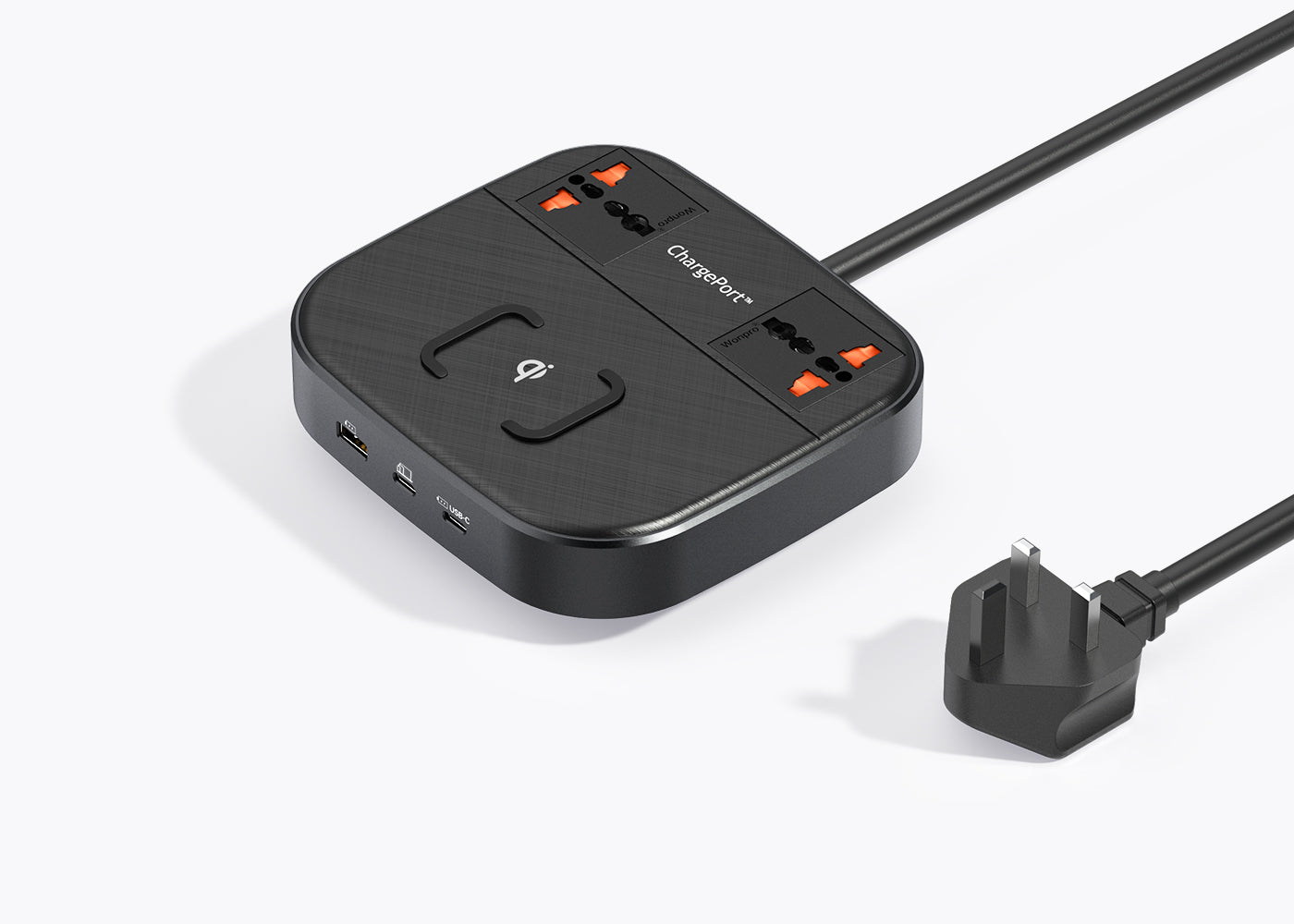

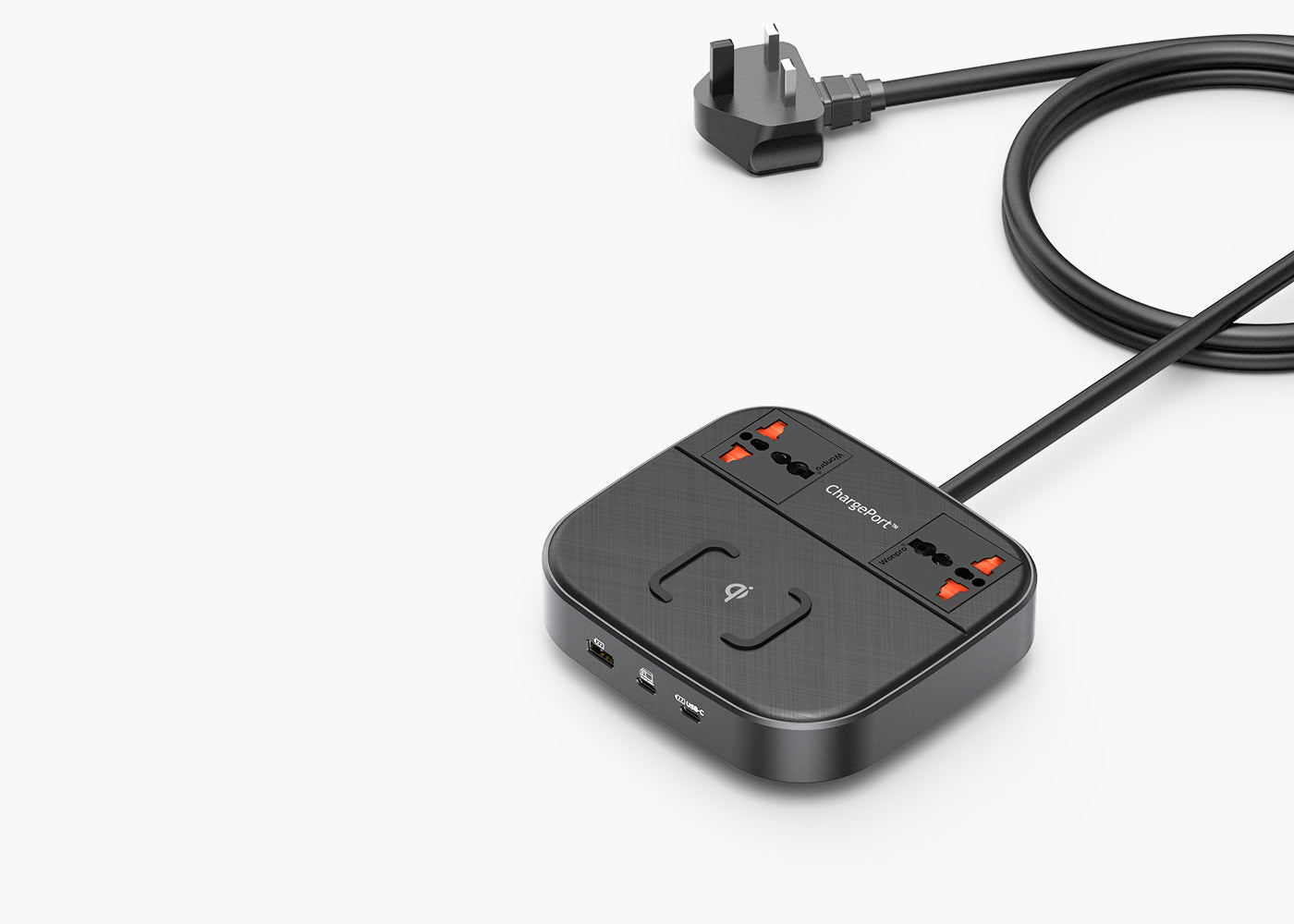

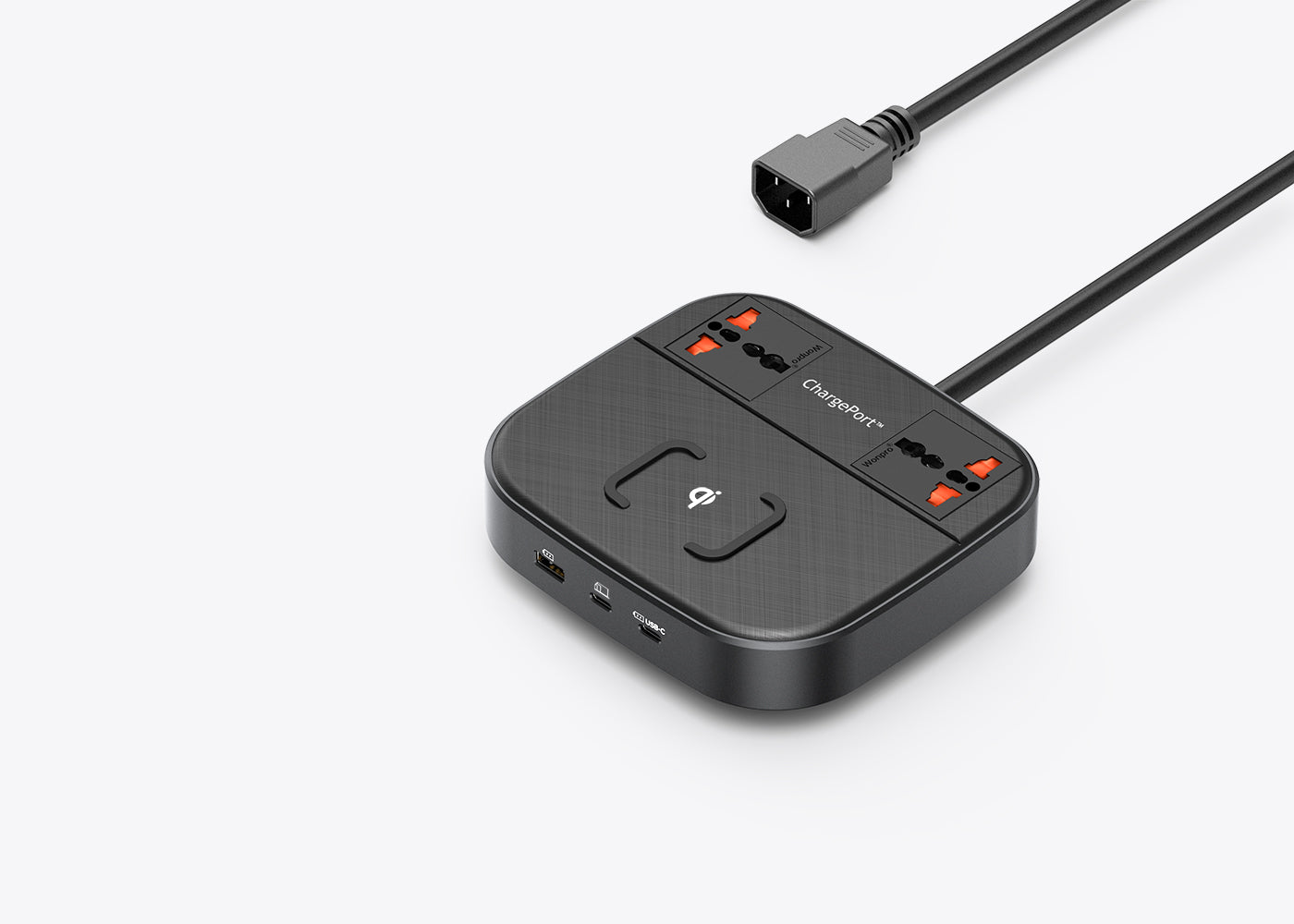

A short integrated inlet cable is terminated with an inline C14 socket to accept a mains lead terminated with a mains plug of your choice.
Security Options
For additional security choose from a desktop mounting plate or security lanyard.
ChargePort Pro Universal Specifications
- Durable construction designed for everyday use.
- 2 x Universal sockets, 120V/240V, 10A shared max.
- Rotated mains outlet layout for maximum flexibility.
- Integrated GaN power supply for minimum size and maximum efficiency and power.
- 10W Qi Certified wireless charging pad with Foreign Object Detection (FOD).
- 2 x USB-C charging sockets.
- Single use: USB-C1: 5V/3A, 9V/3A, 15V/3A, 20V/2.25A. PPS：5V-16V/3A, 5V-21V/2.25A (45W Max). USB-C2：5V/3A, 9V/3A, 15V/3A, 20V/2.25A. PPS：5V-16V/3A, 5V-21V/2.25A (45W Max).
- Dual use: USB-C1: 5V/3A, 9V/3A, 15V/2A, 20V/1.5A. PPS:5V-11V/3A (30W Max). USB-C2: 5V/3A,9V/1.67A (15W).
- 1 x USB-A charging socket. 5V, 2.4A.
- 67W maximum, 2 x USB-C 45W (shared) and 1 x USB-A 12W.
- Input 120V/240V, 10A with integrated C14 flying lead to accept country specific mains cable
- Built-in overload protection.
- FCC part 15, sub part b and WPC Qi 1.3.
- Security options include cable clamp, adhesive pad and security lanyard.
