Designed for Thunderbolt 3 computers, this dock uses the very latest technology and is also compatible with USB-C computers.

Technology: Based on 2nd Generation Intel Lightning Ridge technology with transmission speeds up to 40 Gbps.
Host Ports: 2 x Thunderbolt 3.

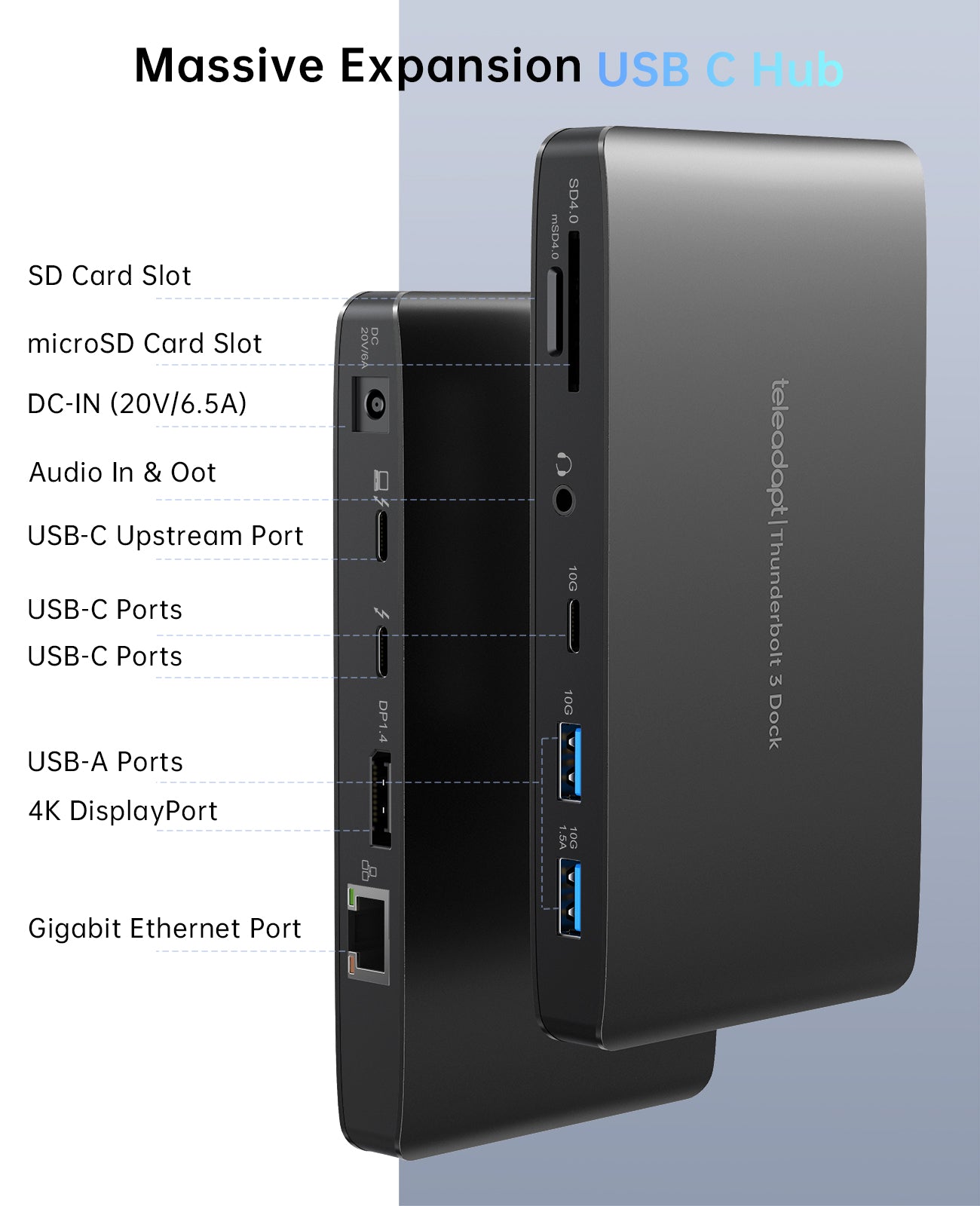

Device Ports: 1 x DisplayPort, 2 x USB-A, 1 x USB-C, 1 x RJ45, 1 x 3.5mm audio, 1 x SD/Micro SD.
In The Box: Teleadapt Thunderbolt 3 Dock, Power Adapter, Power Cable, 1.6ft 40Gbps Thunderbolt 3 Cable and User Manual.
Part Numbers: D0100B, D0100SG.

Color: Black
Section

Overview

Utilising 2nd Generation Intel Lightning Ridge technology with transmission speeds up to 40 Gbps, this Thunderbolt 3 docking station really unlocks the full potential of your Thunderbolt 3 connectors.

Connect multiple devices to your laptop, including: external monitor, USB C hub, Ethernet router, mouse, keyboard, hard drive, flash drive, cellphone, tablet, SD & micro SD card, 3.5mm audio cable/device and more.

It is supplied complete with a 40Gbps Thunderbolt 3 cable and expands a single Thunderbolt 3 port on your laptop to 11 ports. Now you can benefit from speedy 10Gbps data transfer, fast 5V/1.5A device charging, crystal clear 8K video and a seamless network experience.

Why not find out more about the products that make up our exciting new Consumer Collection by downloading the latest brochure.

Section
Section

Tech Specs

  • Intel Thunderbolt 3 certified.
  • 1 x 120W DC power port, bypass 60W to host.
  • 1 x Thunderbolt 3 port 1 for ThunderBolt 3/USB-C.
  • 1 x Thunderbolt 3.
  • 1 x DisplayPort 1.4.
  • 1 x Ethernet (10/100/1000Mbps).
  • 2 x USB-A 3.2 Gen 2.
  • 1 x Type-C Gen 2.
  • 1 x SD and micro SD card UHS:II (can work simultaneously).
  • 1 x 3.5mm audio for headphones or microphone.

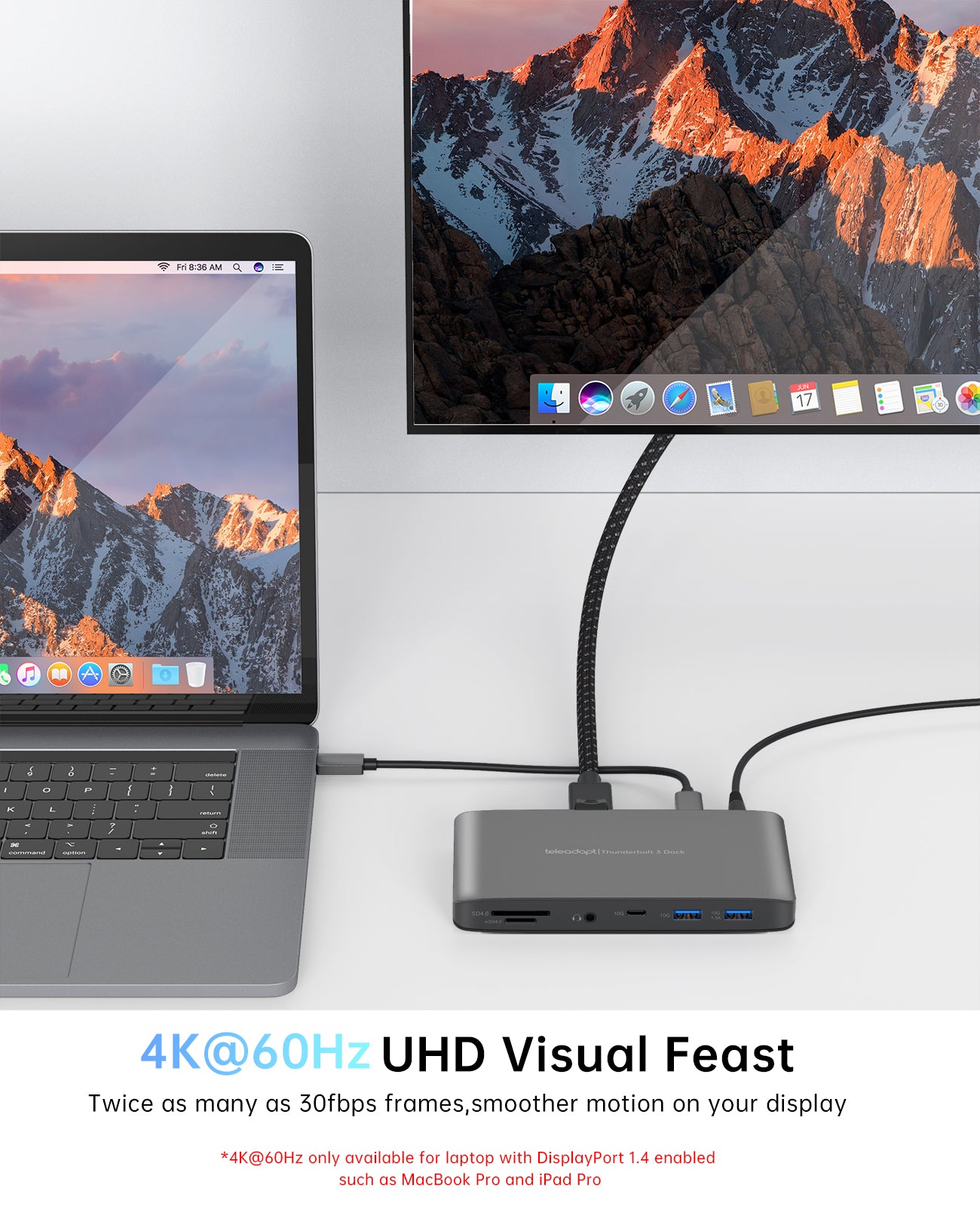

  • Dual 4K@60HZ or single 8K@30HZ.
  • Thunderbolt 3 hosts support dual 4K@60Hz displays, single 8K@30Hz, single 5K@60Hz via DP1.4 and Thunderbolt 3 port 2.
  • USB-C hosts use DP Alt Mode: and support a single display 4K@60Hz video via DP1.4 port.
  • The Type-C and 2 USB A ports support USB 3.2 Gen 2, allowing up to 10Gbps data transmission (twice as fast as regular USB 3.0).
  • Device charging (5V/1.5A over Type-C and USB A BC 1.2 ports, 5V/900mA over the other USB A port).
  • SD and TF card support UHS-II, max 312MB/s data rate.
  • Intel Thunderbolt 3 certified.
  • 1 x 120W DC power port, bypass 60W to host.
  • 1 x Thunderbolt 3 port 1 for ThunderBolt 3/USB-C.
  • 1 x Thunderbolt 3.
  • 1 x DisplayPort 1.4.
  • 1 x Ethernet (10/100/1000Mbps).
  • 2 x USB-A 3.2 Gen 2.
  • 1 x Type-C Gen 2.
  • 1 x SD and micro SD card UHS:II (can work simultaneously).
  • 1 x 3.5mm audio for headphones or microphone.
  • Dual 4K@60HZ or single 8K@30HZ.
  • Thunderbolt 3 hosts support dual 4K@60Hz displays, single 8K@30Hz, single 5K@60Hz via DP1.4 and Thunderbolt 3 port 2.
  • USB-C hosts use DP Alt Mode: and support a single display 4K@60Hz video via DP1.4 port.
  • The Type-C and 2 USB A ports support USB 3.2 Gen 2, allowing up to 10Gbps data transmission (twice as fast as regular USB 3.0).
  • Device charging (5V/1.5A over Type-C and USB A BC 1.2 ports, 5V/900mA over the other USB A port).
  • SD and TF card support UHS-II, max 312MB/s data rate.
Section

FAQs

A1. Either use a USB-C to HDMI cable or an active DisplayPort to HDMI cable.

A2. In this case DisplayPort Alt Mode is enabled so the maximum resolution is 4K@60Hz via the DisplayPort 1.4 port.

A3. Included in the box is the Teleadapt Thunderbolt 3 Dock, power adapter, power cable, 40Gbps Thunderbolt 3 Cable and a user manual.
