USB C 6-in-1 Combi-Hub
USB C 6-in-1 Combi-Hub

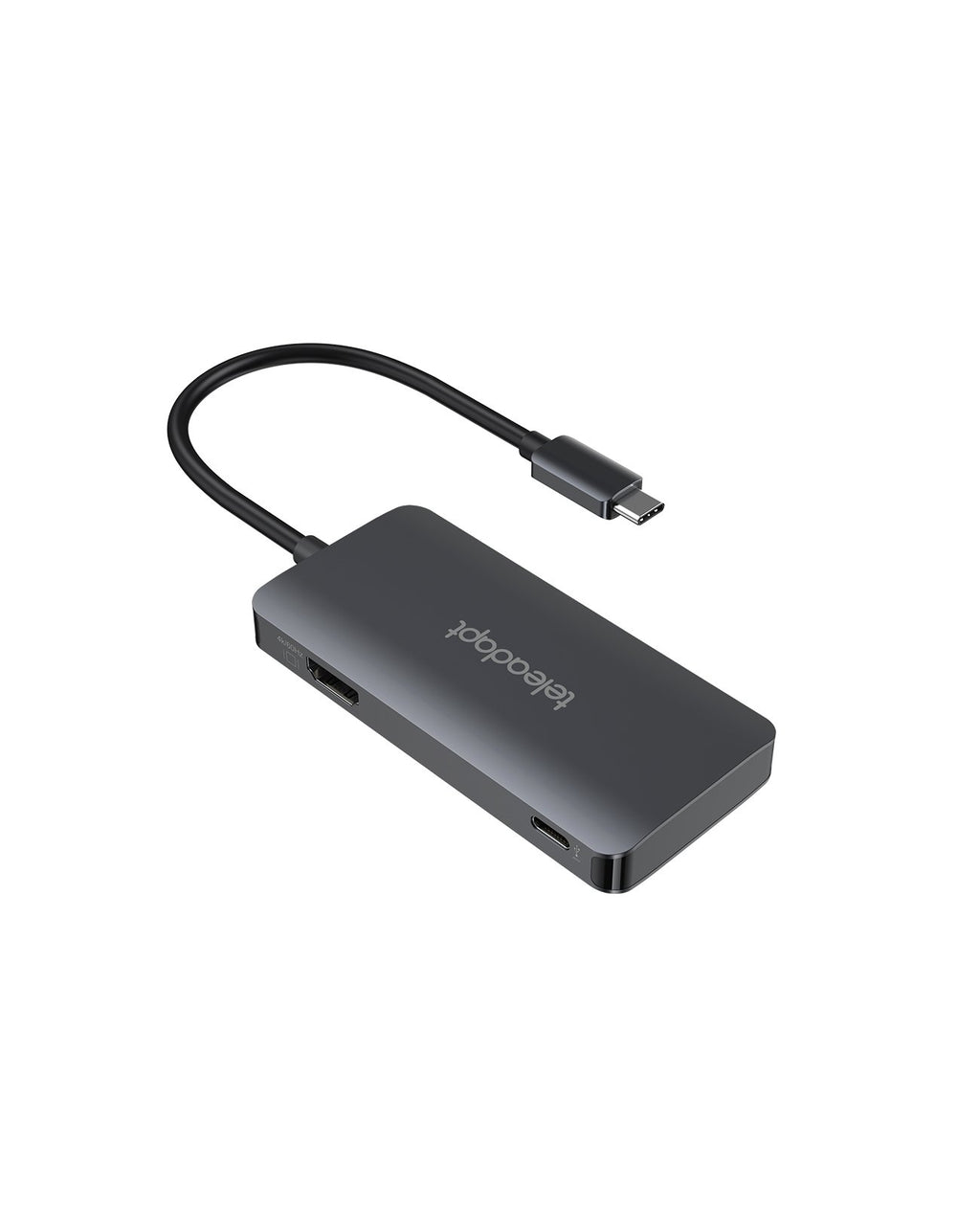

This USB C 6-in-1 hub is an ideal solution for adding ports and the integrated USB C host cable means it is super easy to connect.
If your laptop only has one USB C port then this hub is ideal. Not only can you add ports but you can also power your laptop by connecting the laptop charger to the hub USB C socket. Power is then passsed to your laptop.

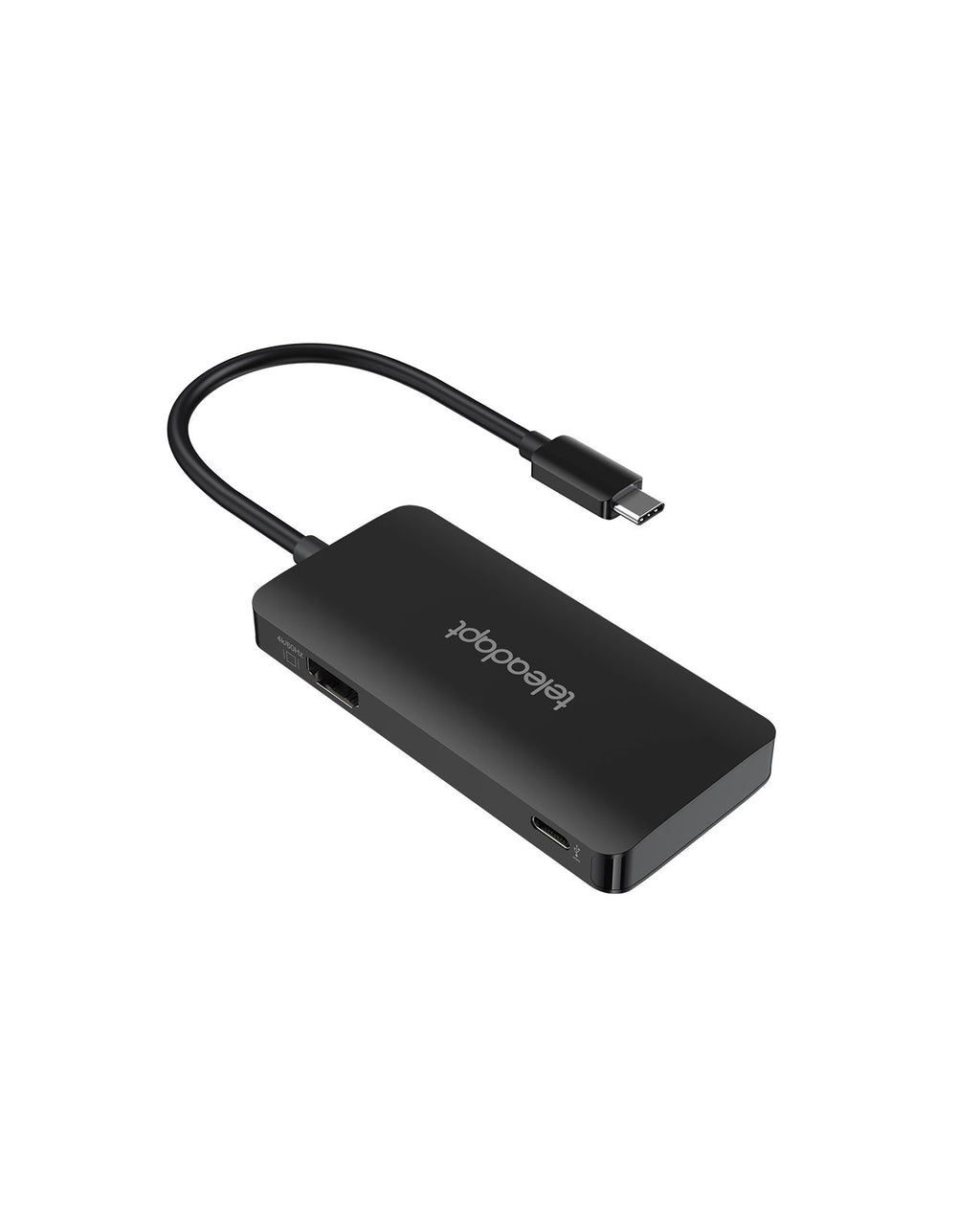

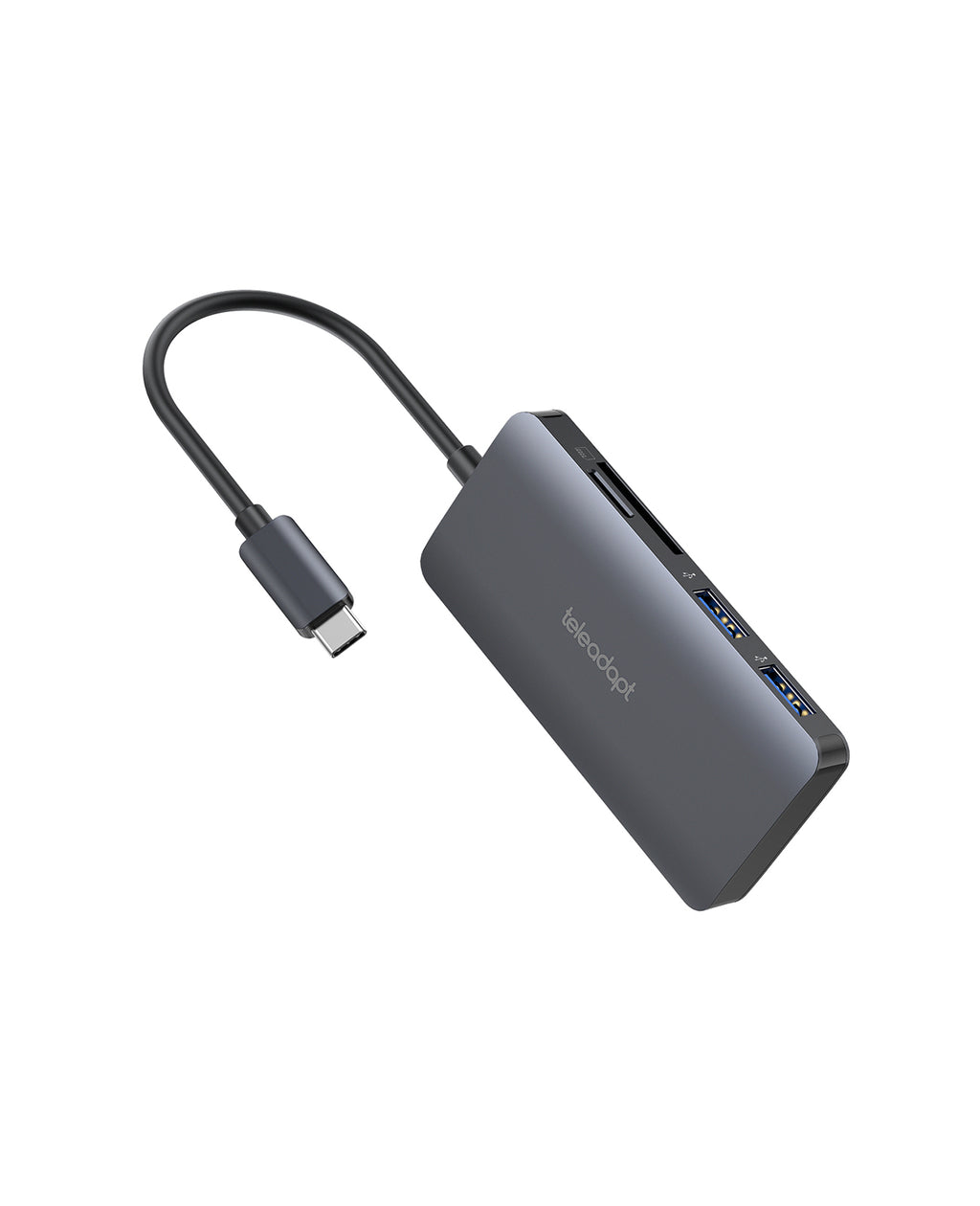

This attractive hub is finished in brushed aluminum and is available in either black or slate grey.
Host Ports: 1 x USB C.

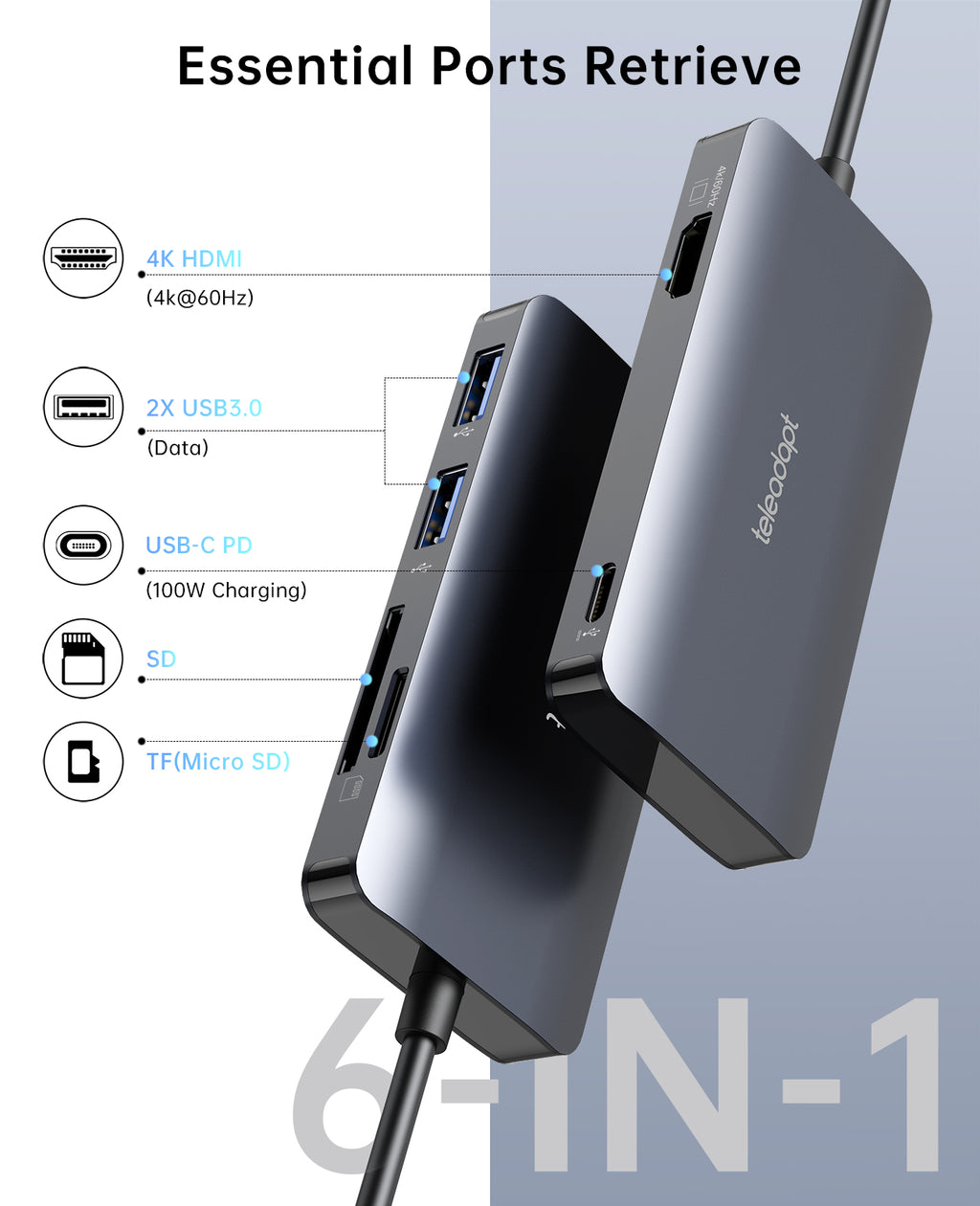

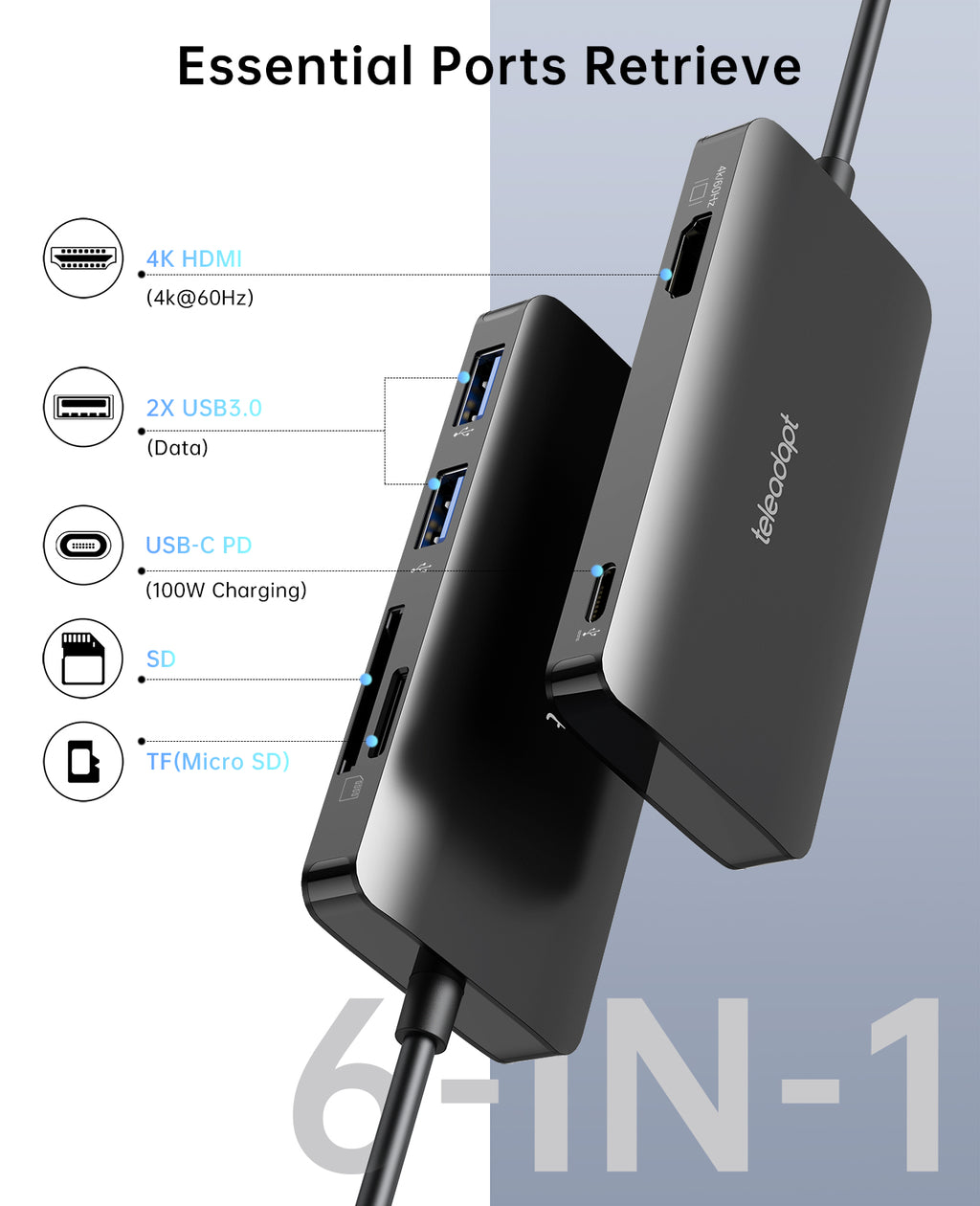

Device Ports: 1 x HDMI, 1 x USB A, 1 x USB C, 1 x SD, 1 x MicroSD.
Part Numbers: H0401B, H0401SG.
Overview
Tech Specs
FAQs
Recommended
Overview
Tech Specs
FAQs
Recommended
Overview

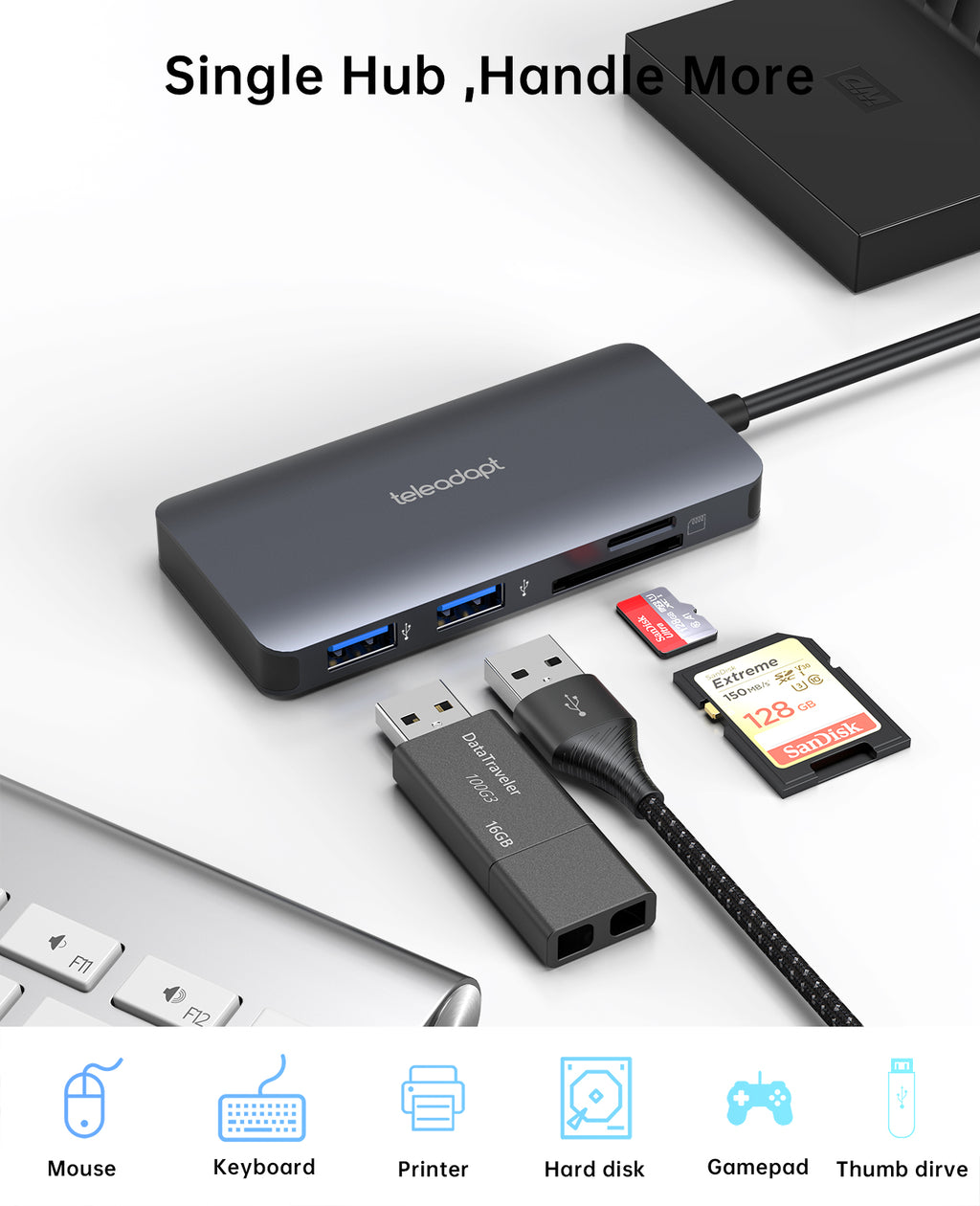

This a USB C 6-in-1 hub provides the main ports you need. This includes HDMI video at 4k/60Hz and data transfer via USB 3.1at up to 5Gbps. There are two USB A ports and a USB C port that supports PD 3.0 with PD charging when connecting a PD adapter and up to 5Gbps data transmission when connecting a USB C device. Finally there are SD and MicroSD memory card slots.
Compatible with USB C and Thunderbolt 3 hosts that support DP Alt Mode 1.4. DP Alt Mode 1.2 hosts are supported but maximum speeds and resolutions will be reduced.
Why not find out more about the products that make up our exciting new Consumer Collection by downloading the latest brochure.
Tech Specs
- USB C 6-in-1 Combi-Hub with integrated host cable. Supports hosts with DP 1.4 Alt mode (recommended), downward compatible with DP 1.2 Alt mode.
- 1 x HDMI, maximum resolution 4K/60Hz. HDCP 2.2 and HDCP1.4. HDR.
- 2 x USB A, maximum 5Gbps bandwidth.
- One USB A supports 7.5W (5V@1.5A) downstream charging. Maximum 10W (5V/2A) charging/power across all USB A ports.
- 1 x SD and 1 x MicroSD. Support for Secure Digital v3.0 UHS-I (Ultra High Speed). Both cards can work simultaneously.
- 1 x USB C. Can be used for connecting a PD adapter to charge/power the host or for connecting a USB C device.
- When connecting a PD adapter Fast Role Swap is supported. Hub requires 15W so if a 100W PD adapter is used, 85W is available to the host.
- When connecting a USB C device 5Gbps data transfer is supported. Maximum 7.5w(5V/1.5A) downstream charging from 10W (5V/2A) allowance on USB A ports.
- Certifications: FCC and CE.

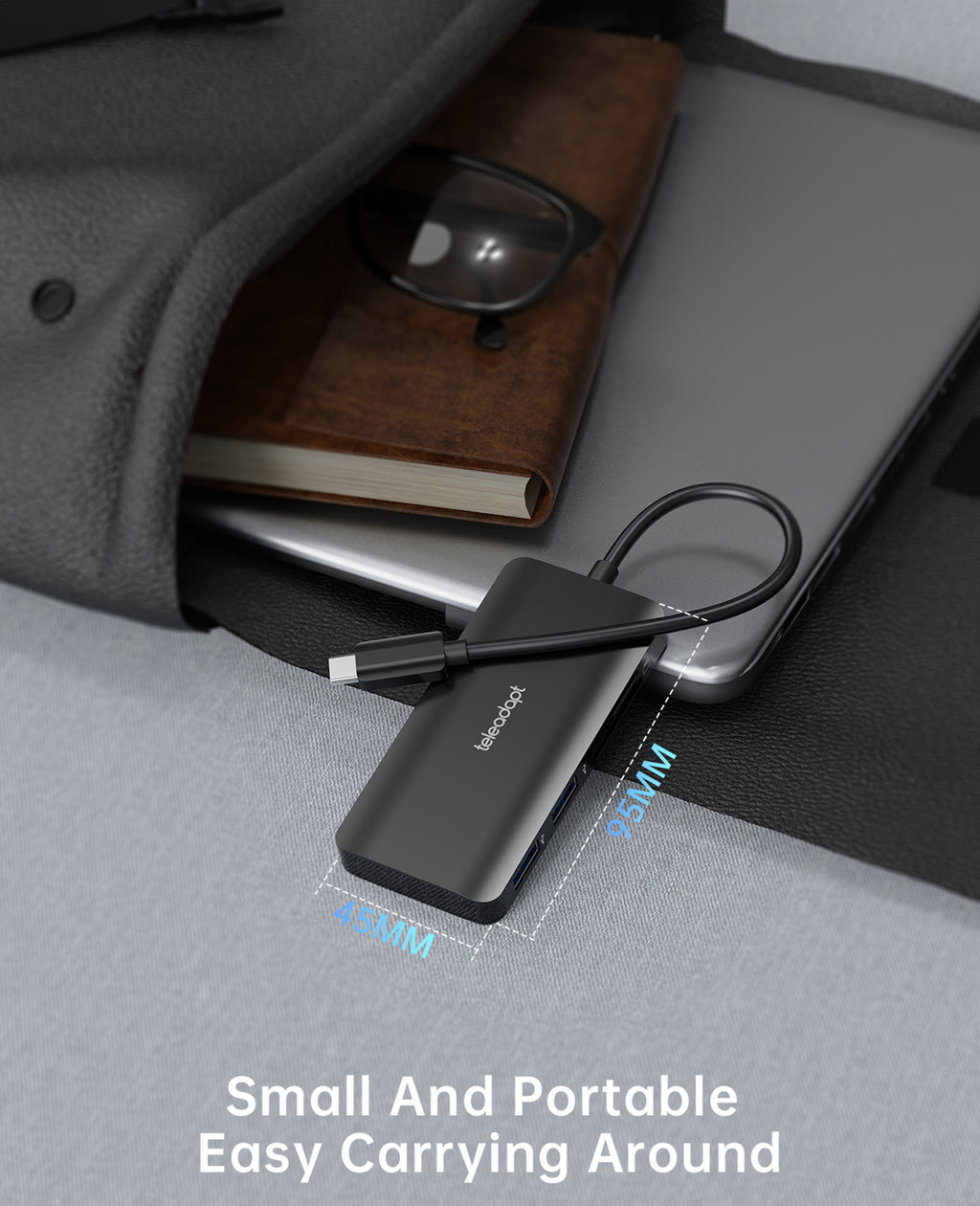

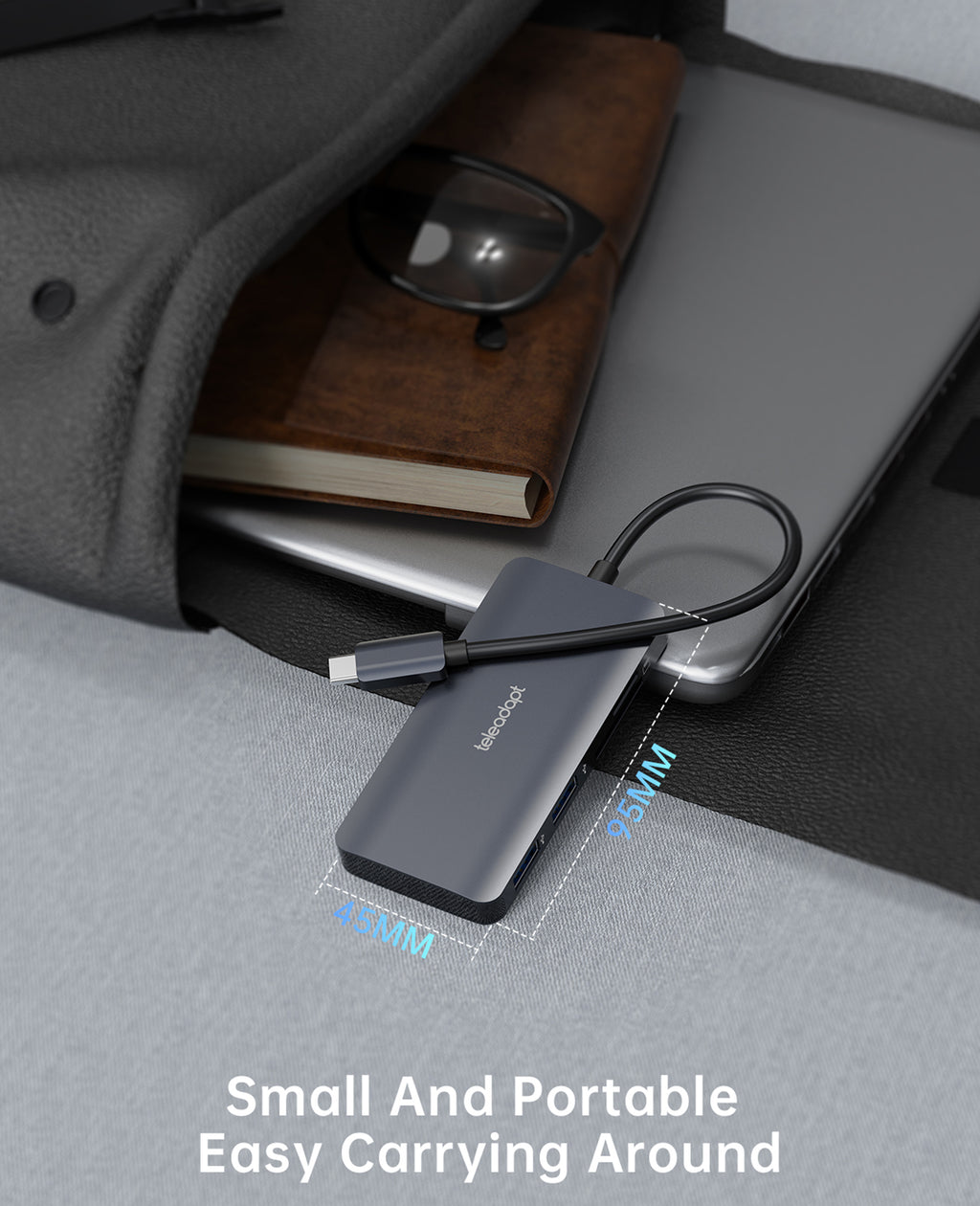

- Dimensions: 95 x 45 x 11.5mm
- Available in black or slate grey.
- USB C 6-in-1 Combi-Hub with integrated host cable. Supports hosts with DP 1.4 Alt mode (recommended), downward compatible with DP 1.2 Alt mode.
- 1 x HDMI, maximum resolution 4K/60Hz. HDCP 2.2 and HDCP1.4. HDR.
- 2 x USB A, maximum 5Gbps bandwidth.
- One USB A supports 7.5W (5V@1.5A) downstream charging. Maximum 10W (5V/2A) charging/power across all USB A ports.
- 1 x SD and 1 x MicroSD. Support for Secure Digital v3.0 UHS-I (Ultra High Speed). Both cards can work simultaneously.
- 1 x USB C. Can be used for connecting a PD adapter to charge/power the host or for connecting a USB C device.
- When connecting a PD adapter Fast Role Swap is supported. Hub requires 15W so if a 100W PD adapter is used, 85W is available to the host.
- When connecting a USB C device 5Gbps data transfer is supported. Maximum 7.5w(5V/1.5A) downstream charging from 10W (5V/2A) allowance on USB A ports.
- Certifications: FCC and CE.
- Dimensions: 95 x 45 x 11.5mm
- Available in black or slate grey.
FAQs
A1. Yes it is backward compatible with DP 1.2 Alt Mode. Note that some functions will have a reduced performance in line with DP 1.2 Alt Mode specifications.
A2. If your computer has only one USB C connector then connecting this hub uses that connection. To keep your computer charged you can instead plug the charger into the USB C port of the hub and then the hub passes power on to your computer.
