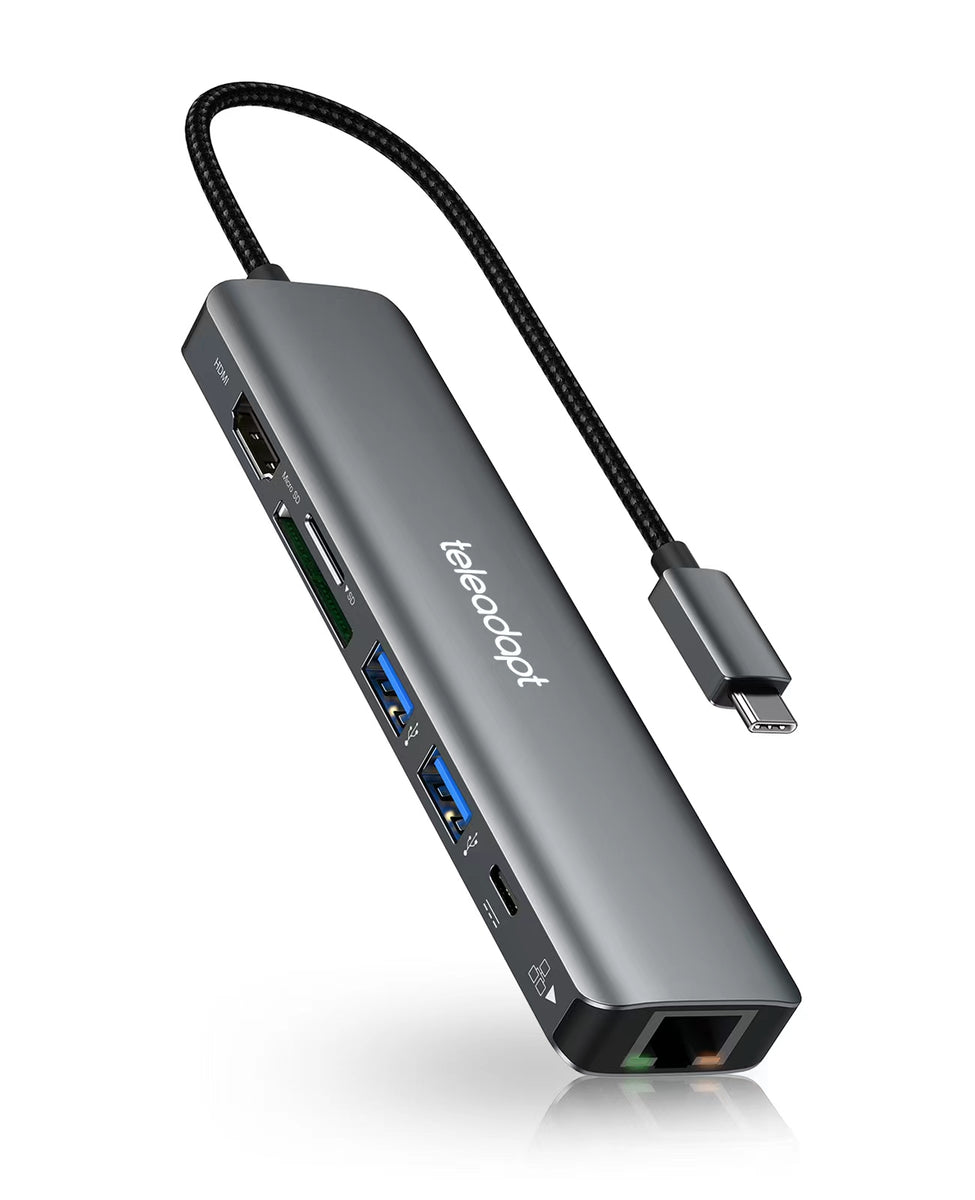

This slimline USB C Combi-Hub provides all the connections you need in an attractive, slimline, aluminum housing. Simply plug into a compatible USB C port on your laptop to connect external monitors, disks, memory cards and Ethernet. Video support to 4K@60Hz, data transfer up to 5Gbps,

Host Port: Integrated USB C cable.
Device Ports: HDMI, USB C, 2 x USB A, Ethernet, SD, MicroSD.
Part Numbers: H0701B, H0701SG.

Color: Black
Section

Overview

For total flexibility, this combi-hub provides a wide range of connection options in a compact and stylish textured aluminium design.

Complete with a flying lead to allow you to simply plug into your existing device, the Slimline USB C 7-in-1 Combi-Hub adds the ports you need, quickly and easily.

Why not find out more about the products that make up our exciting new Consumer Collection by downloading the latest brochure.

Section
Section

Tech Specs

  • USB C 7-in-1 Combi-Hub with integrated host cable.
  • HDMI 4K@60Hz, HDR. Mirror or extend your USB-C host screen to an external monitor. Supports HDCP 2.2 & 1.4. 4K@60Hz resolution requires DP 1.4 Alt Mode, if DP1.2 only is supported then maximum resolution is 4K@30Hz.
  • Data transfer up to 5Gbps. 2 USB 3.0 ports allow connection of USB devices (mouse, keyboard, flash drive etc).
  • USB C port supports PD 3.0 with up to 100W(20V/5A) of power (max 92W will be passed to the host).
  • SD and TF card slots support UHS:I with a maximum 104Mbyte/s reading/write speed. Two cards can work simultaneously.
  • Gigabit Ethernet ensures a fast and stable network connection.
  • Plug and play. Simply plug in, no additional software required.
  • Attractive and versatile brushed aluminum housing available in Black and Slate Grey.
  • Dimensions 137mm x 35mm x 14mm.
  • USB C 7-in-1 Combi-Hub with integrated host cable.
  • HDMI 4K@60Hz, HDR. Mirror or extend your USB-C host screen to an external monitor. Supports HDCP 2.2 & 1.4. 4K@60Hz resolution requires DP 1.4 Alt Mode, if DP1.2 only is supported then maximum resolution is 4K@30Hz.
  • Data transfer up to 5Gbps. 2 USB 3.0 ports allow connection of USB devices (mouse, keyboard, flash drive etc).
  • USB C port supports PD 3.0 with up to 100W(20V/5A) of power (max 92W will be passed to the host).
  • SD and TF card slots support UHS:I with a maximum 104Mbyte/s reading/write speed. Two cards can work simultaneously.
  • Gigabit Ethernet ensures a fast and stable network connection.
  • Plug and play. Simply plug in, no additional software required.
  • Attractive and versatile brushed aluminum housing available in Black and Slate Grey.
  • Dimensions 137mm x 35mm x 14mm.
Section

FAQs

A1. Yes, but it depends upon the capability of your host device. If your host device supports DP 1.4 Alt Mode then you can achieve 4K@60Hz, otherwise if your host supports DP 1.2 then the maximum resolution is 4K@30Hz.

A2. Your laptop needs to support data, charging and video (DP Alt Mode) on the USB C port you connect to.

A3. Yes they can, however only one hard drive/SSD can be connected at a time.

A4. Yes, you can use the USB A ports to charge your cellphone though it may be slow. The USB ports are primarily intended for data transfer and do not support high power charging.

A5. No, it is not compatible with Nintendo Switch or the Samsung Dex.
