Request Quote

TA-7545US

PowerHub Pro takes the PowerHub range to a new level. The use of the latest GaN technology enables USB charging across 3 outlets up to an amazing 50 watts combined with 2 tamper resistant AC outlets.

Key Features

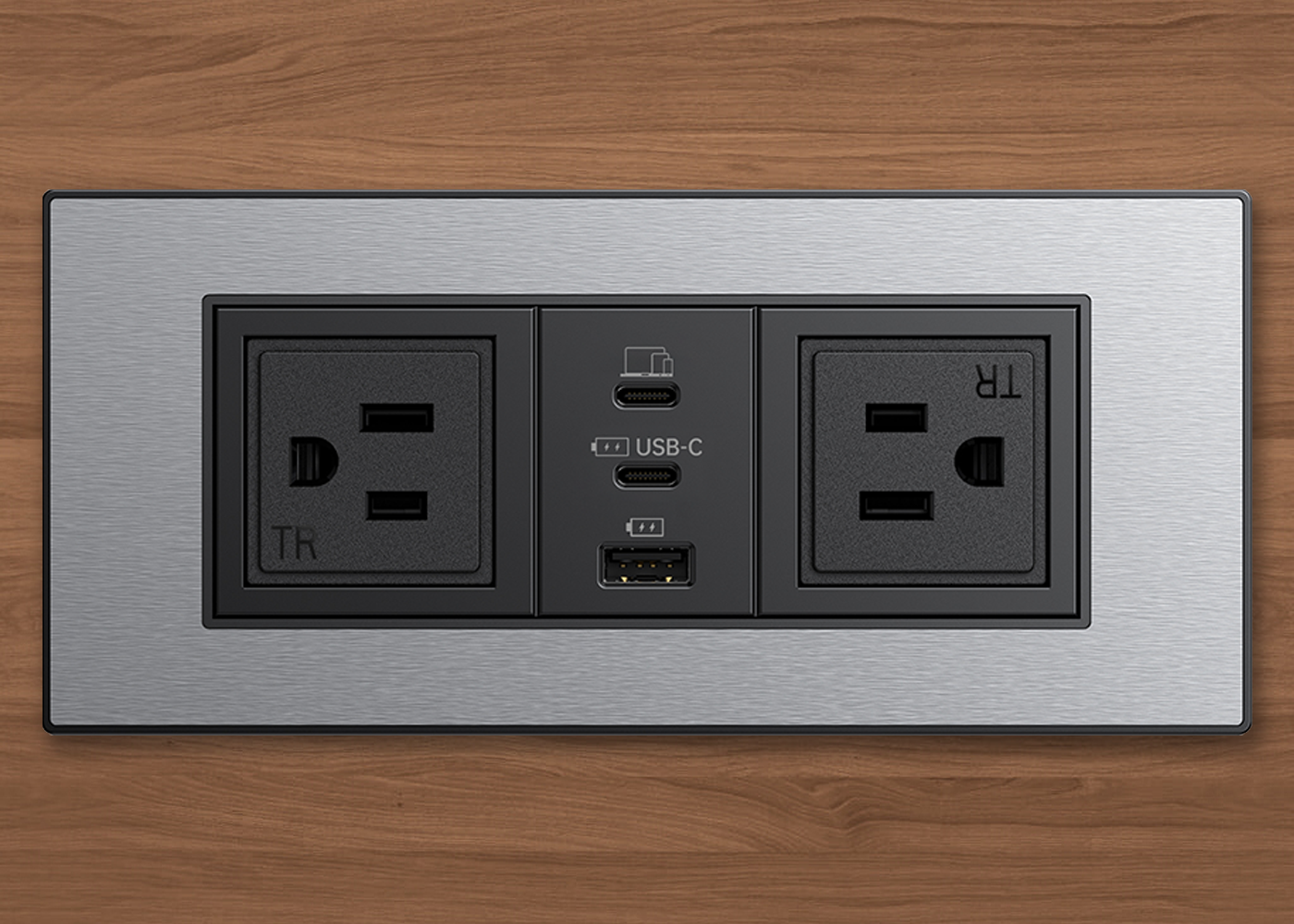

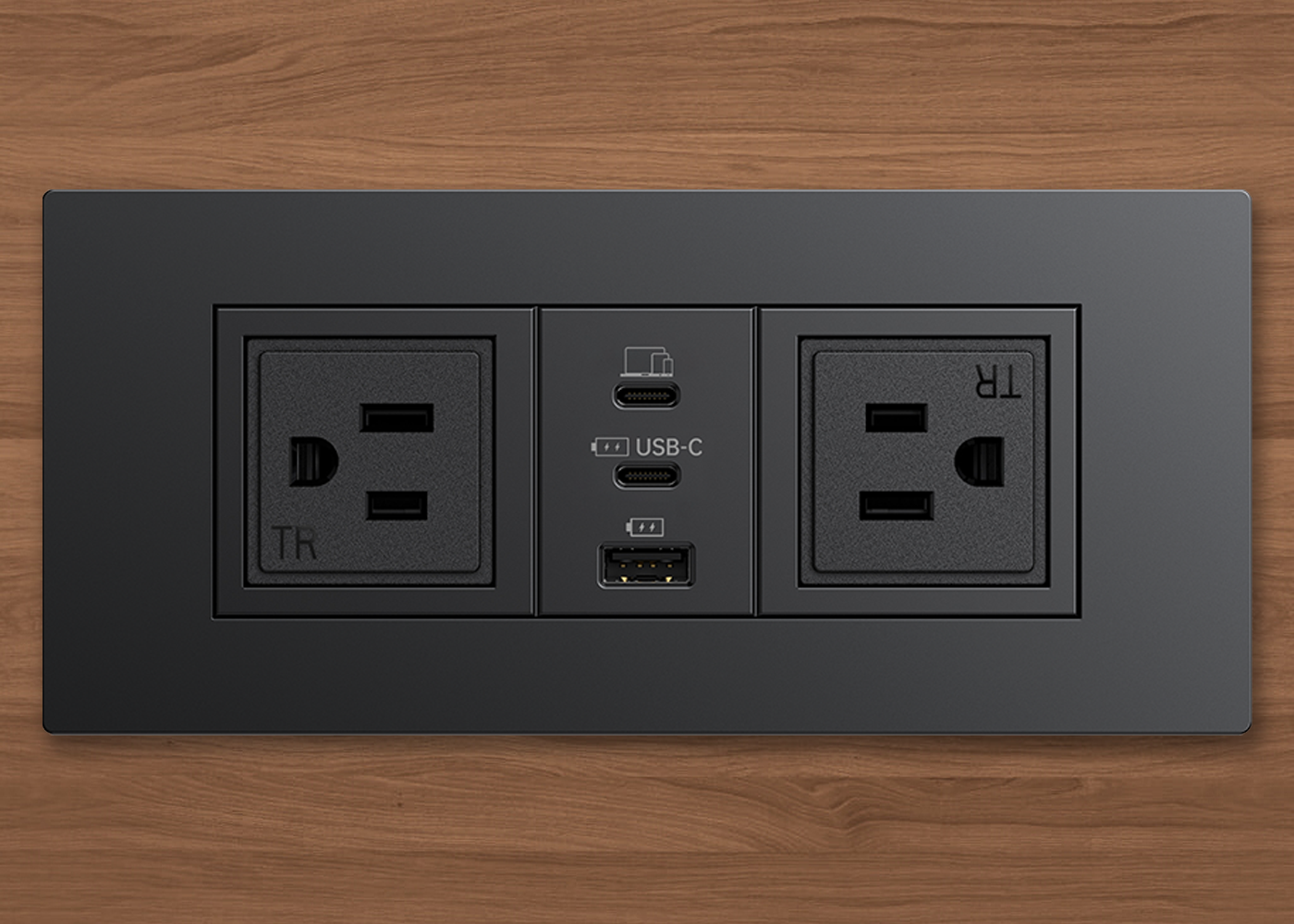

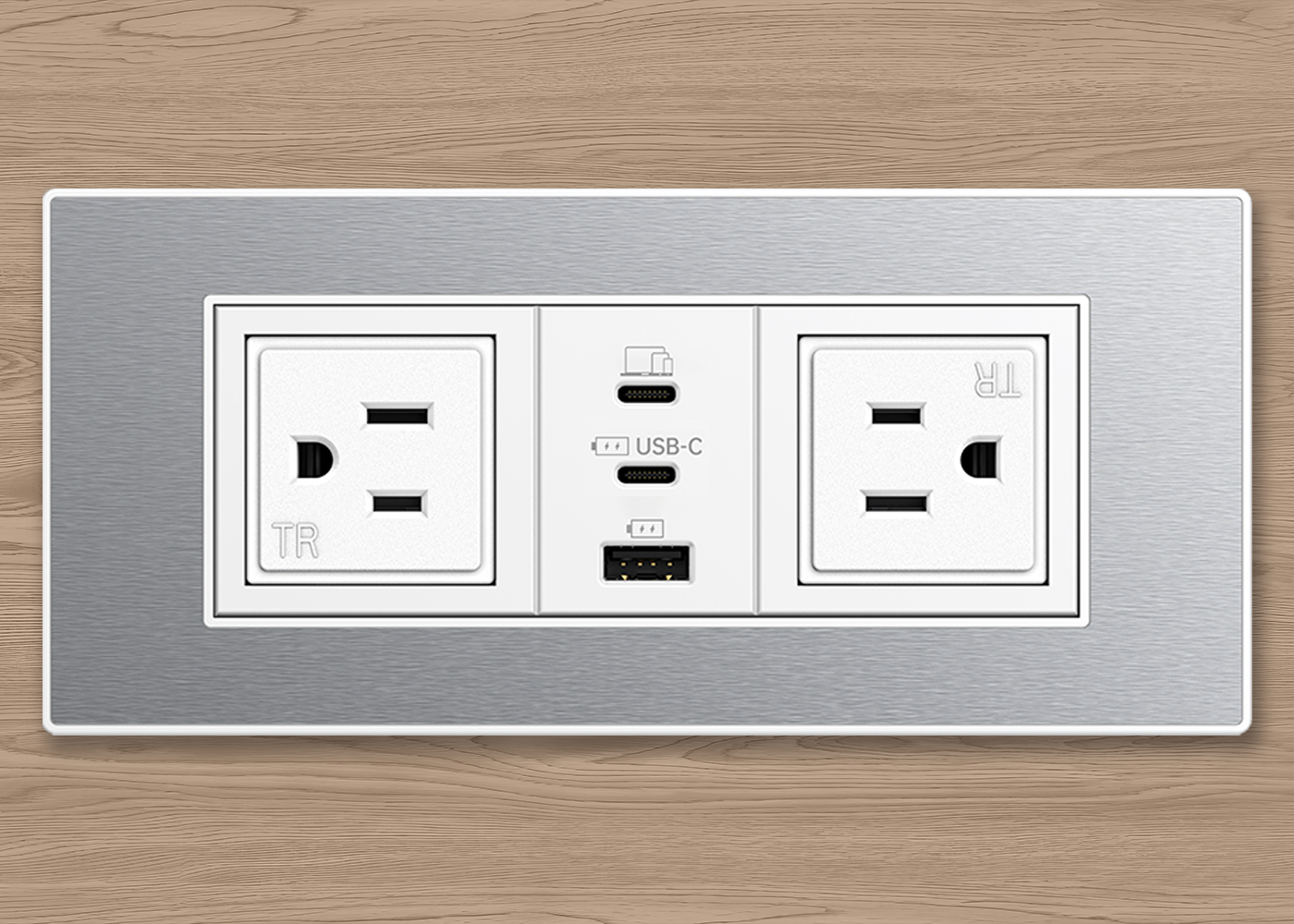

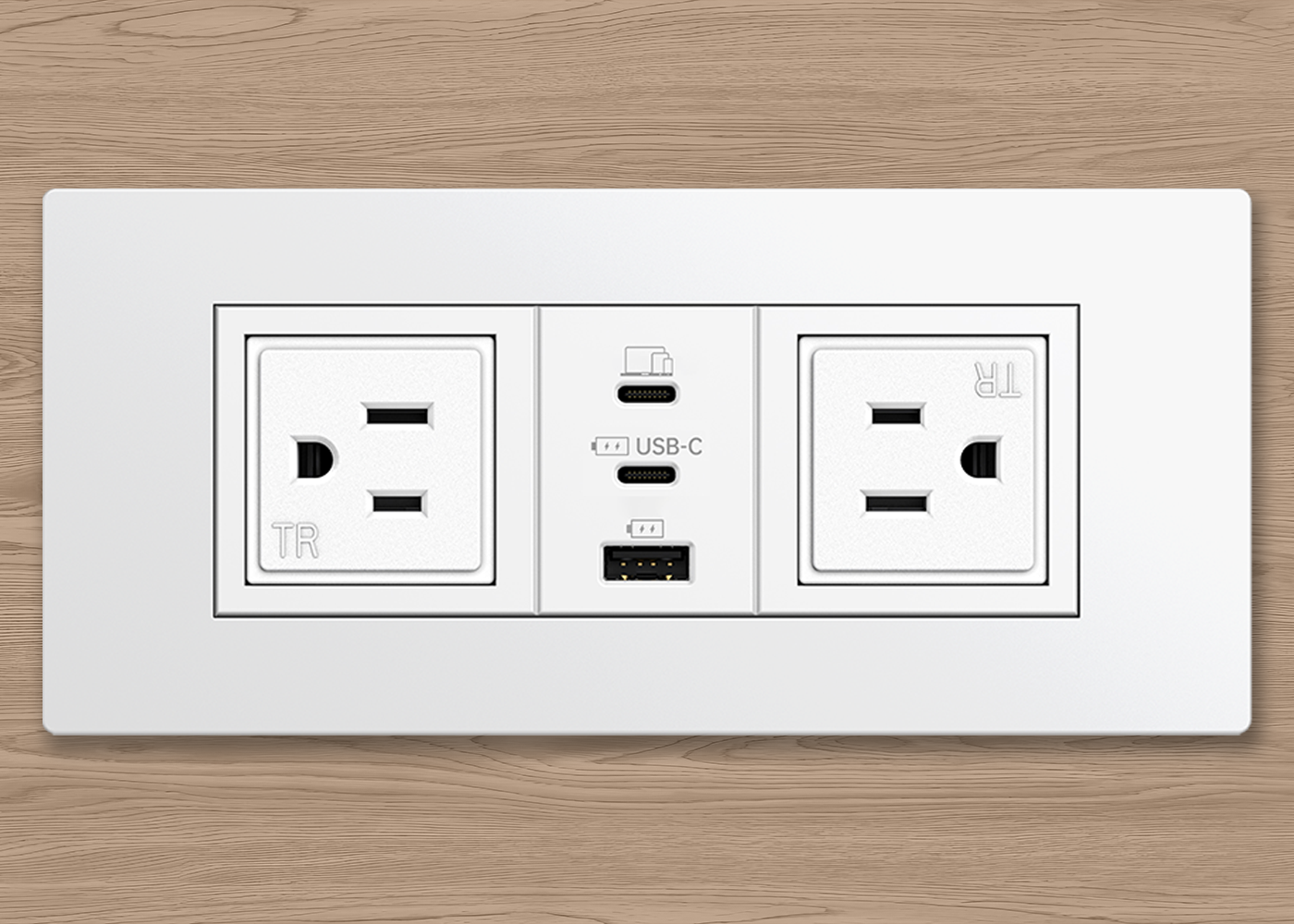

  • Provides guests with 2 easy-to-find electrical outlets and 3 USB charge ports.

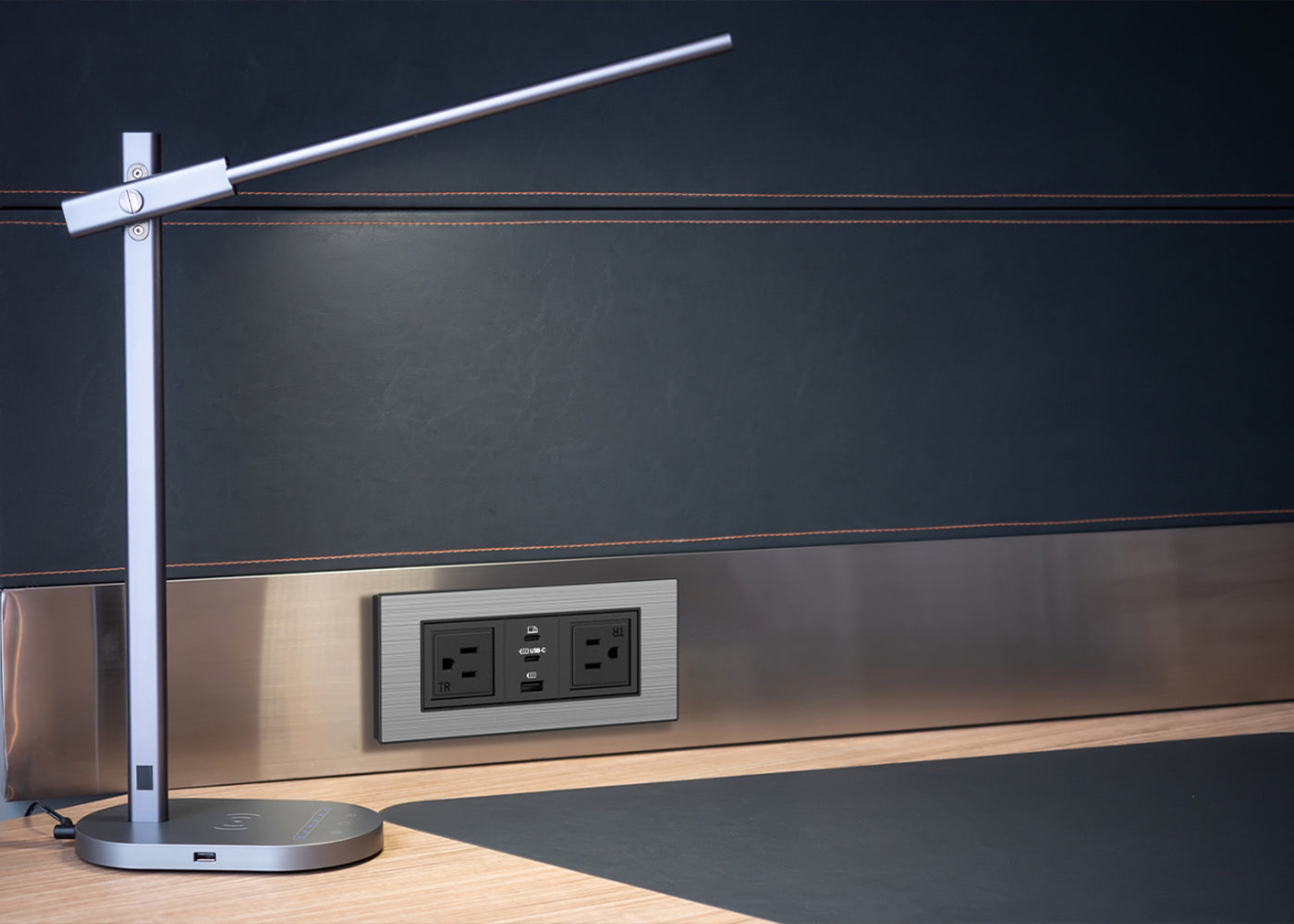

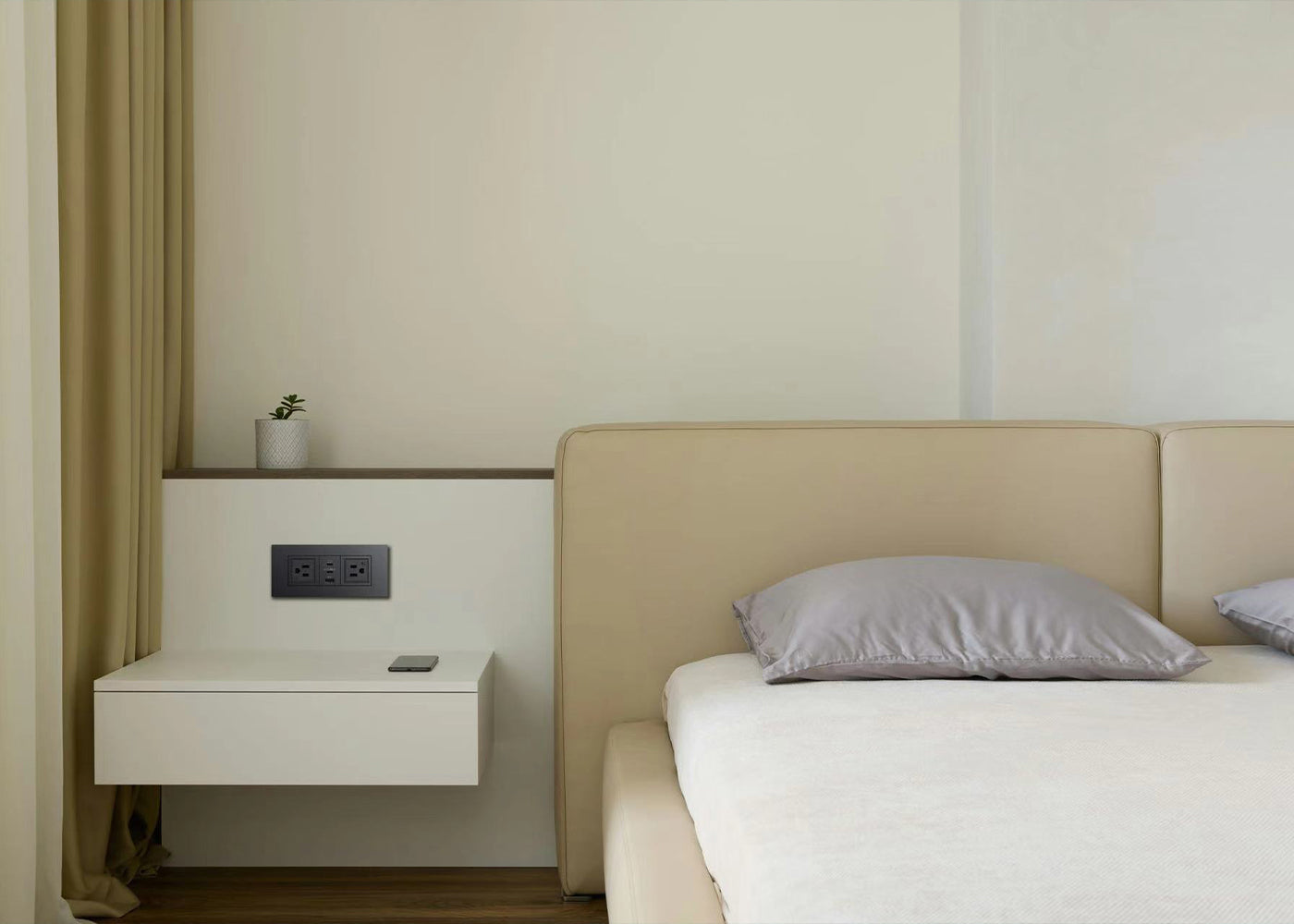

  • Designed for installing flush into furniture, millwork, or case goods.

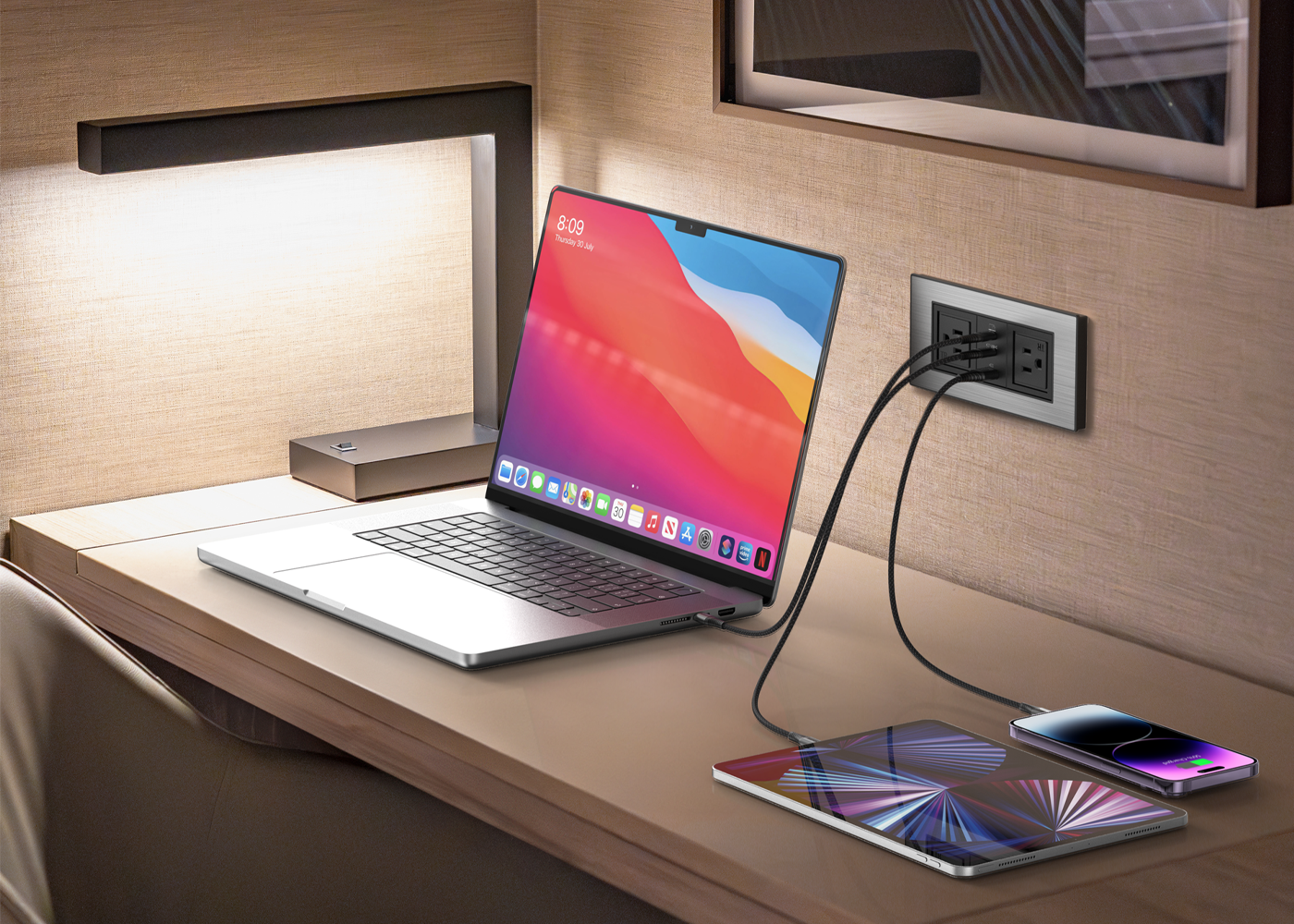

  • Fast-charging USB ports support a wide range of portable devices including laptops, tablets and smartphones.

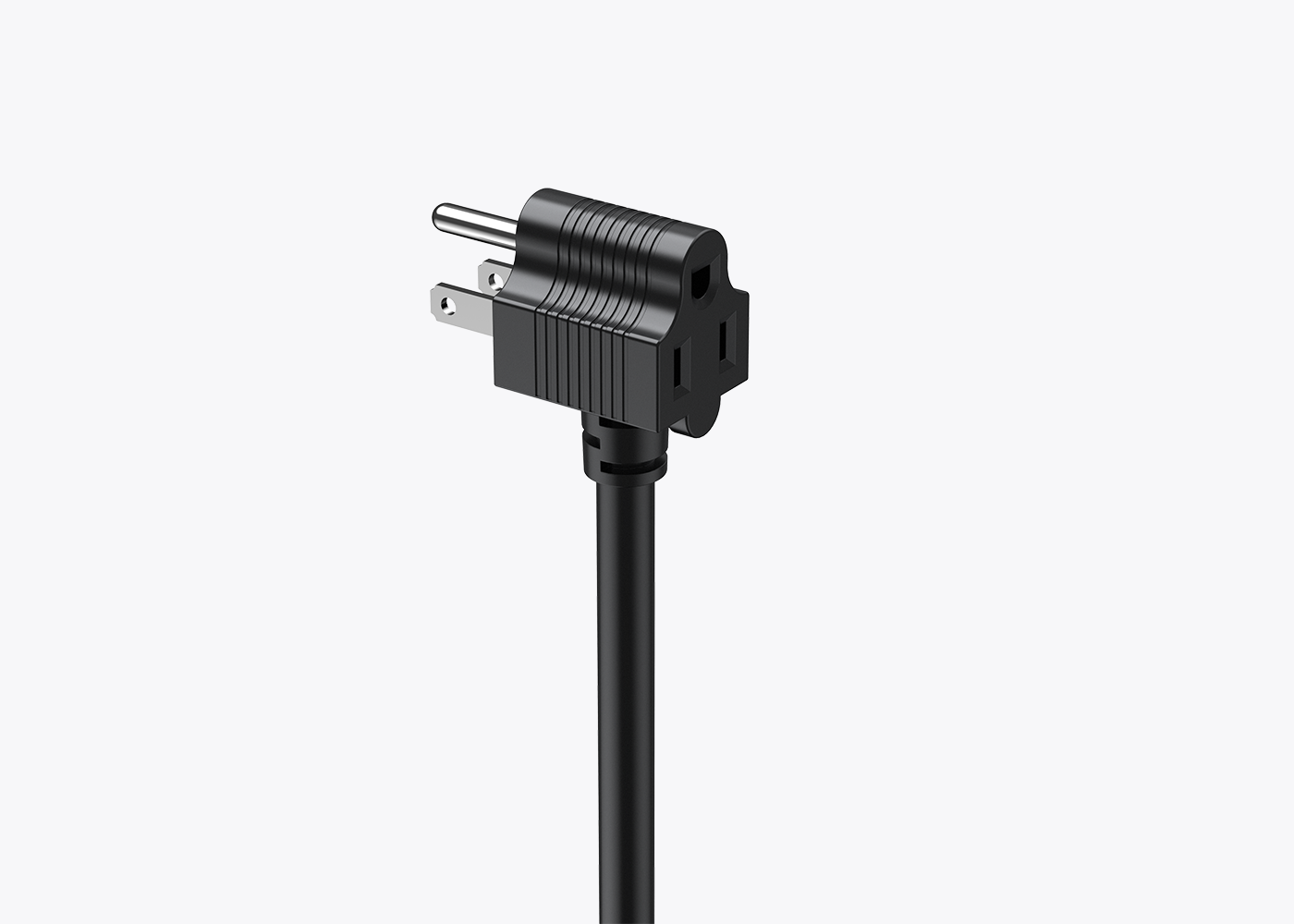

  • A passthrough US 3-pin plug means you don’t lose a precious mains outlet in your guest room.
  • UL Certified to UL962A, UL498 and UL1310.
  • Engineered for safety with US TR (tamper-resistant) receptacles and USB over current/voltage/temperature and short circuit protection.



PowerHub Pro for USA Specifications

  • Input: Integrated cable (2m or 3.5m depending on model) with passthrough US 3-pin plug. Requires 1 x US NEMA 5-15R outlet (125V/15A).
  • Outputs: 2 x US 3-pin, tamper-resistant AC outlets, 10A max. shared. 3 USB Ports (2 x USB-C, 1 x USB-A) total 50W max.
  • One USB Used: USB-C1 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, OR USB-C2 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, or USB-A 5V2.4A,12W.
  • Two USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A 30W and USB-C2 PD3.0: 5V3A/9V2.22A 20W, OR USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-A 5V2.4A,12W, OR USB-C2/USB-A 5V3.4A,17W shared.
  • Three USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-C2/USB-A 5V3.4A,17W shared.
  • Safety: USB over current/voltage/temperature and short circuit protection.
  • Certification: UL Certified to UL962A, UL498, UL1310. FCC Part 15b.

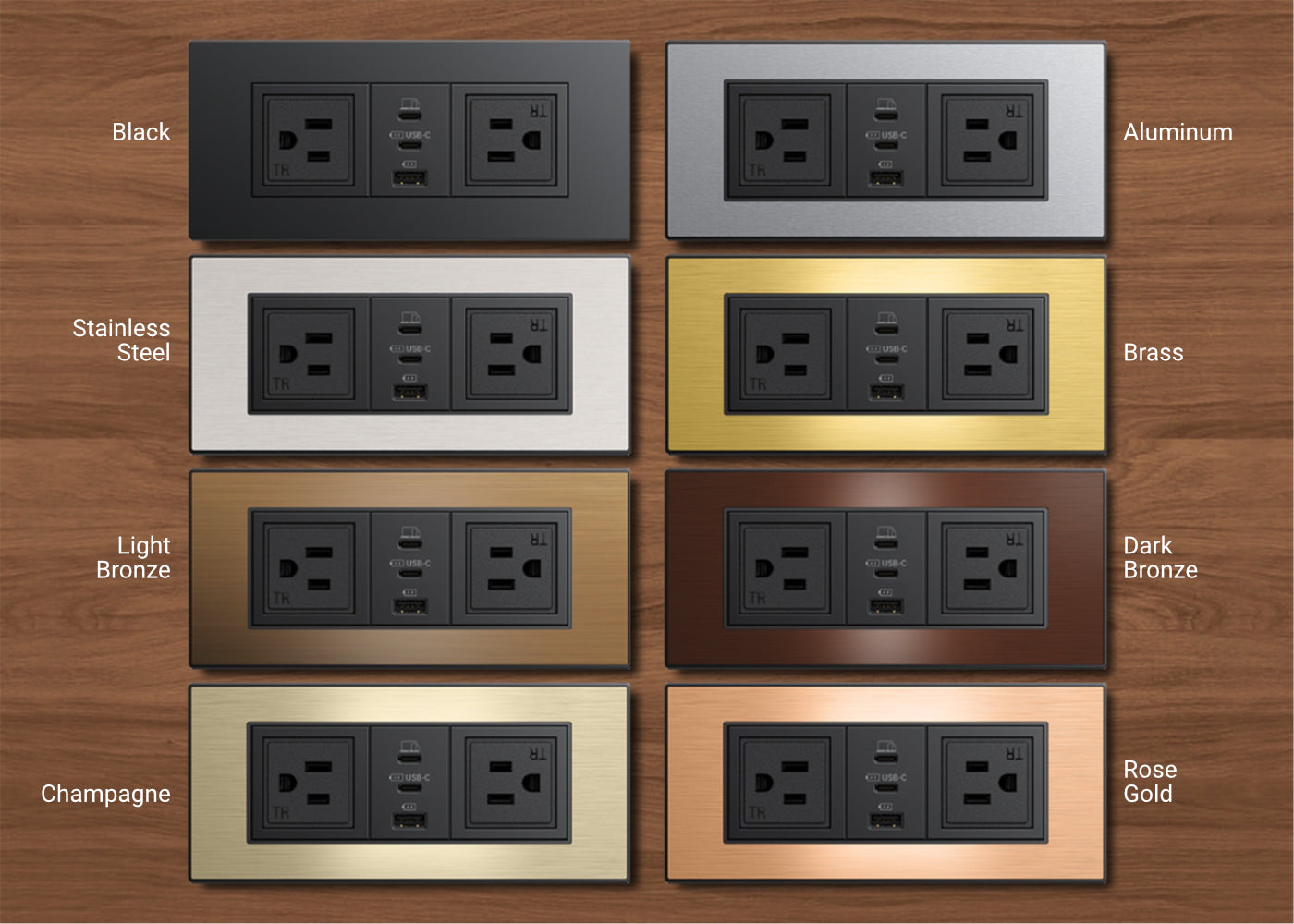

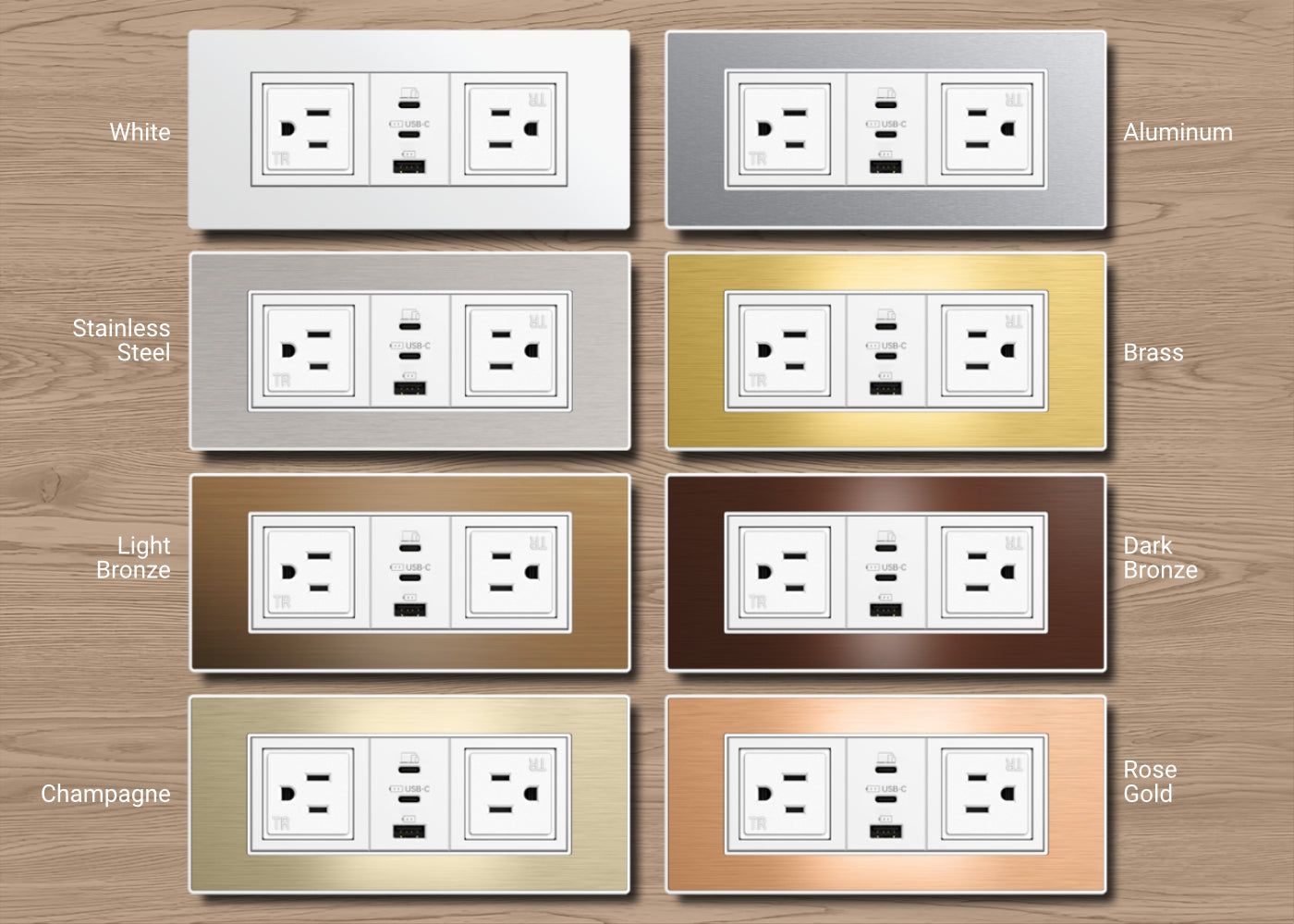

Trims And Extenders To Match Your Decor
