PowerHub Pro Universal
PowerHub Pro Universal

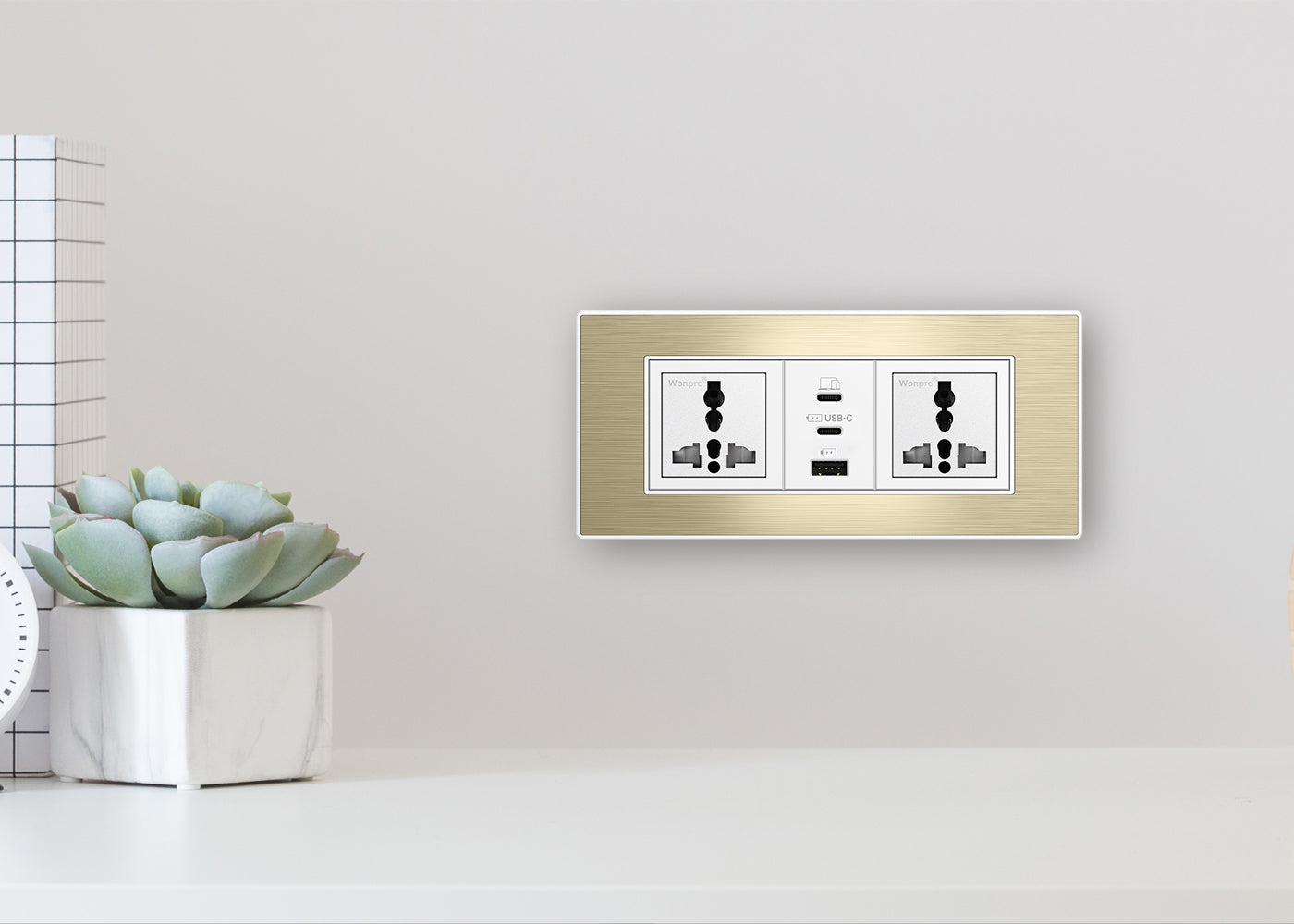

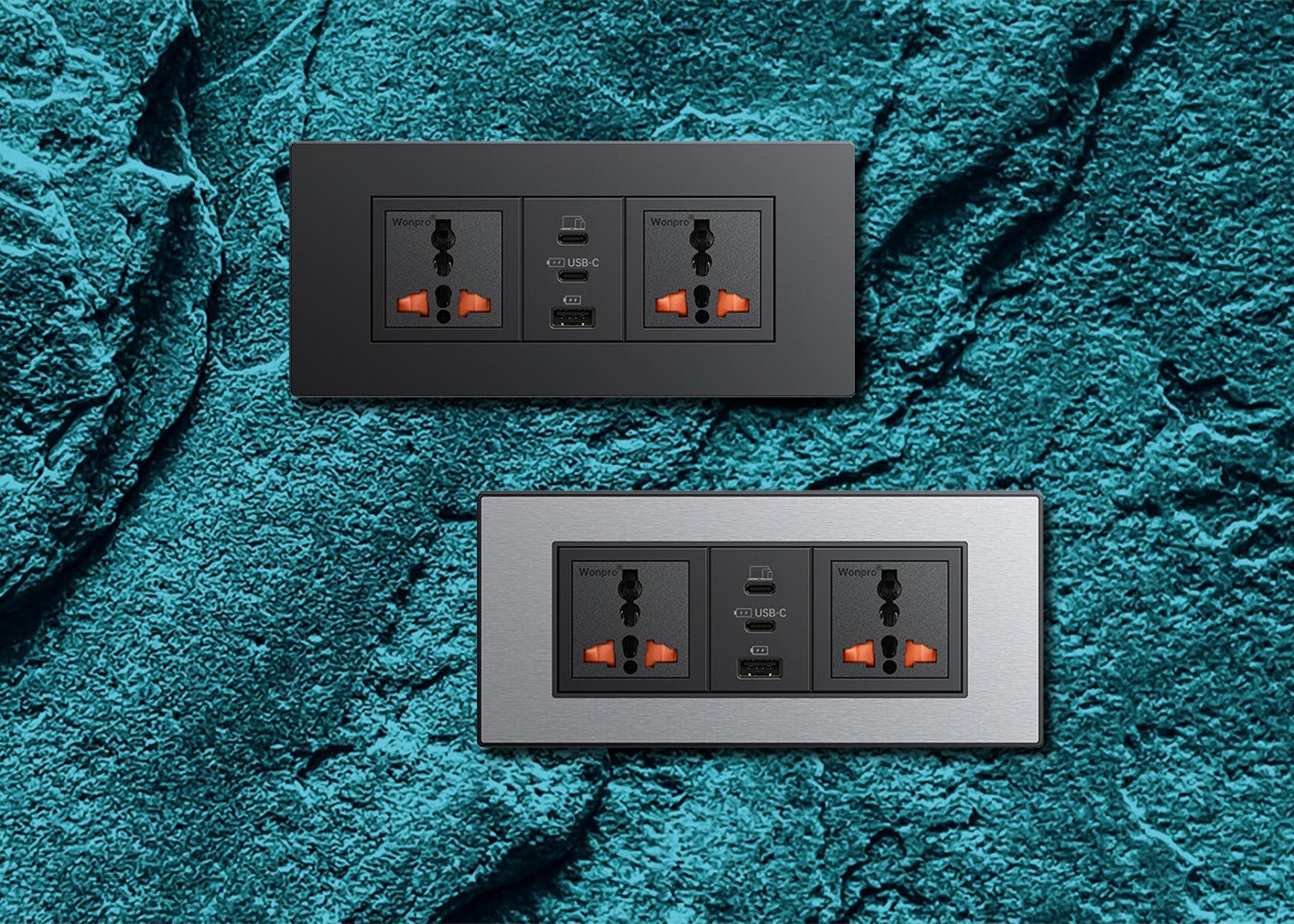

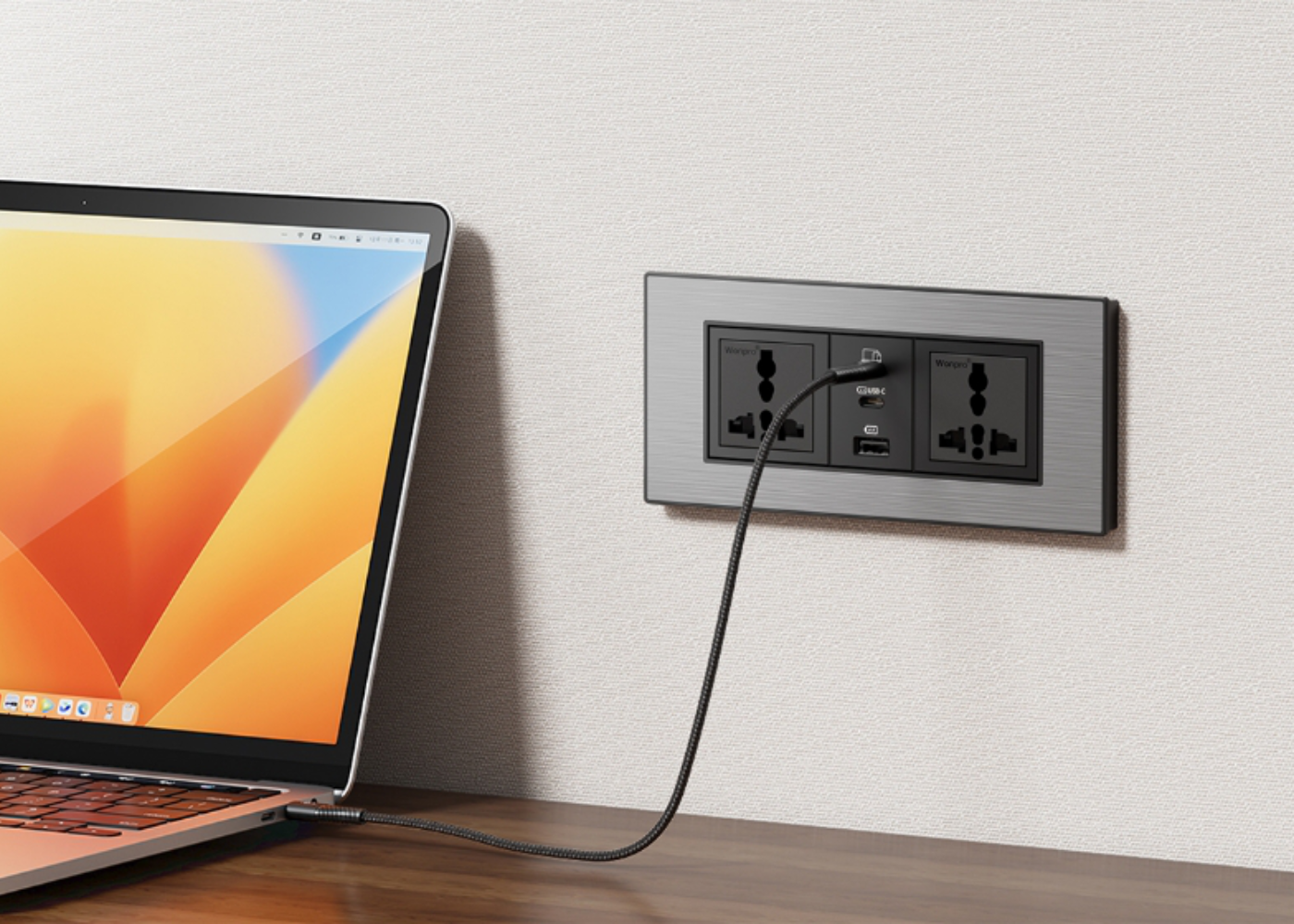

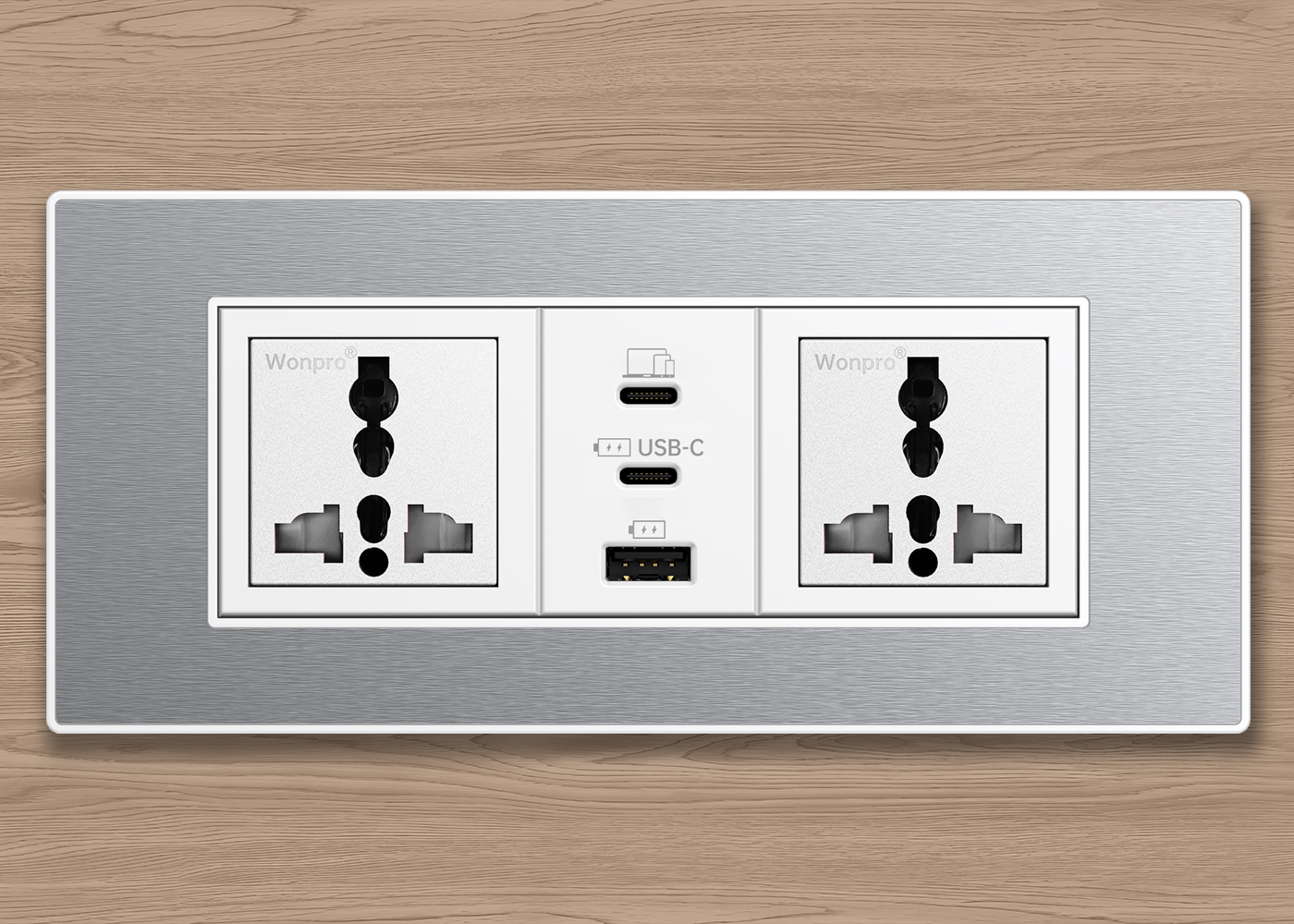

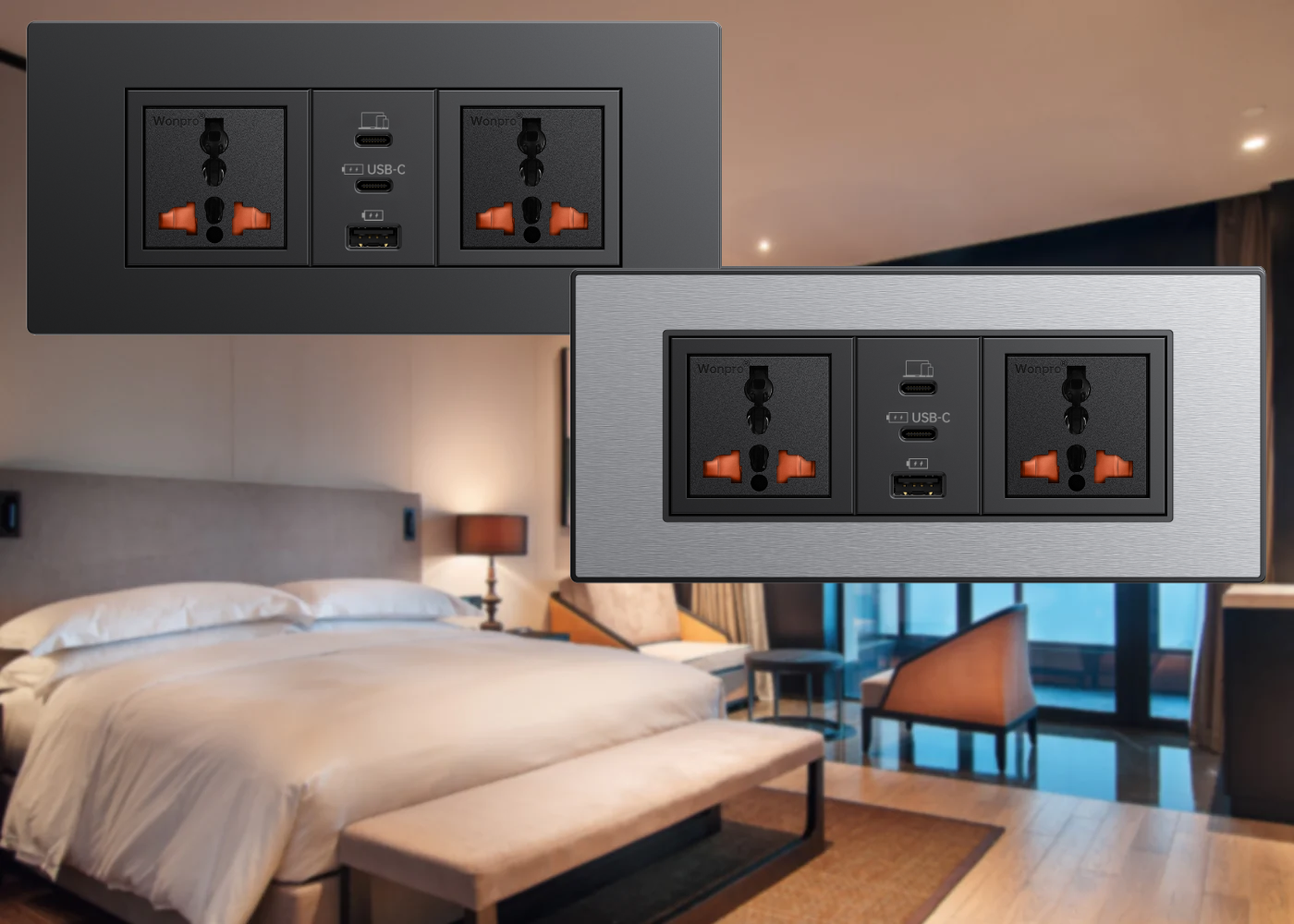

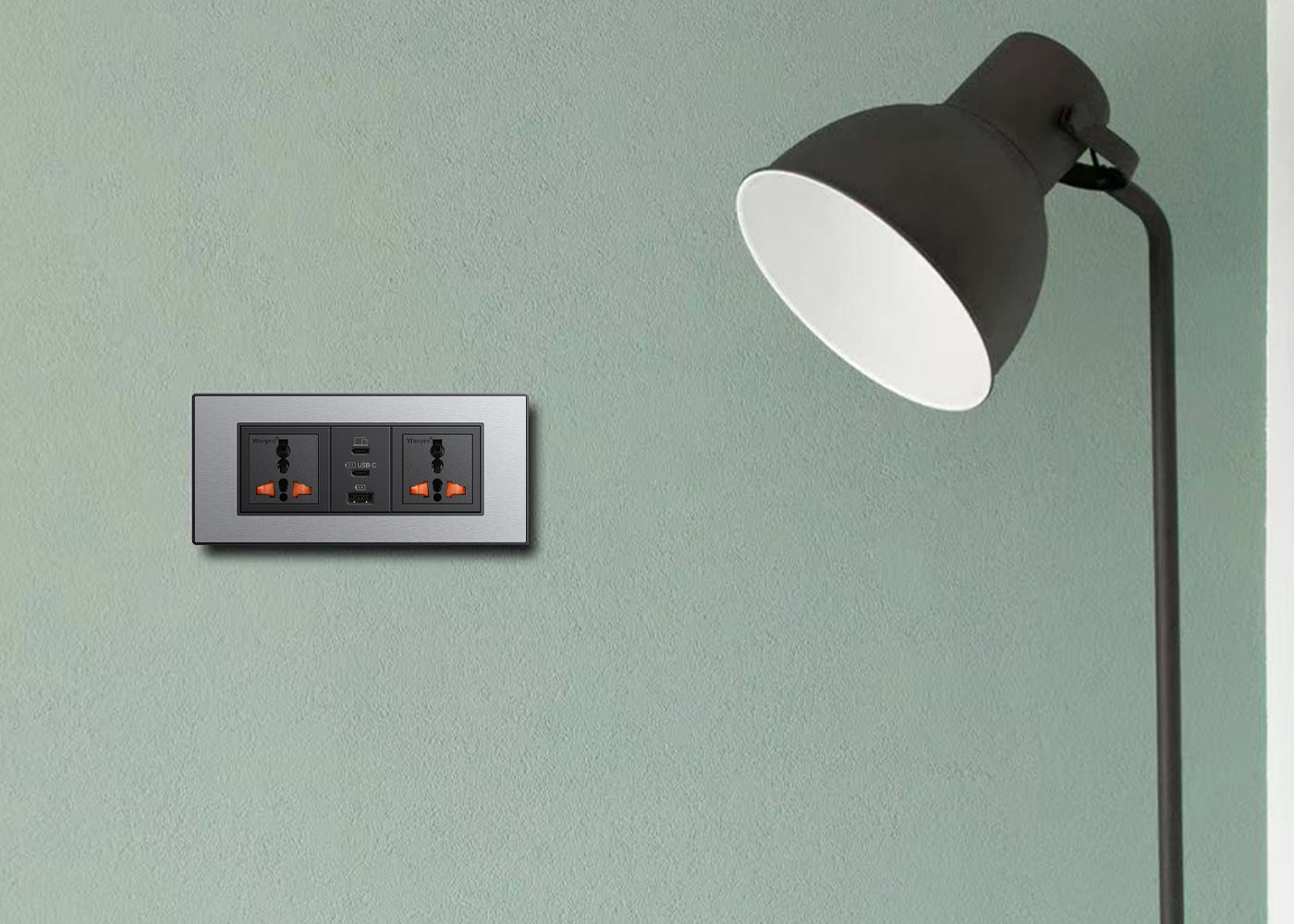

PowerHub Pro Universal takes the PowerHub range to a new level. The use of the latest GaN technology enables USB charging across 3 outlets up to an amazing 50 watts combined with 2 universal outlets. The USB Type-C outlets feature USB Power Delivery (PD) making them ideal for charging tablets and even small to medium laptops!
Key Features
-

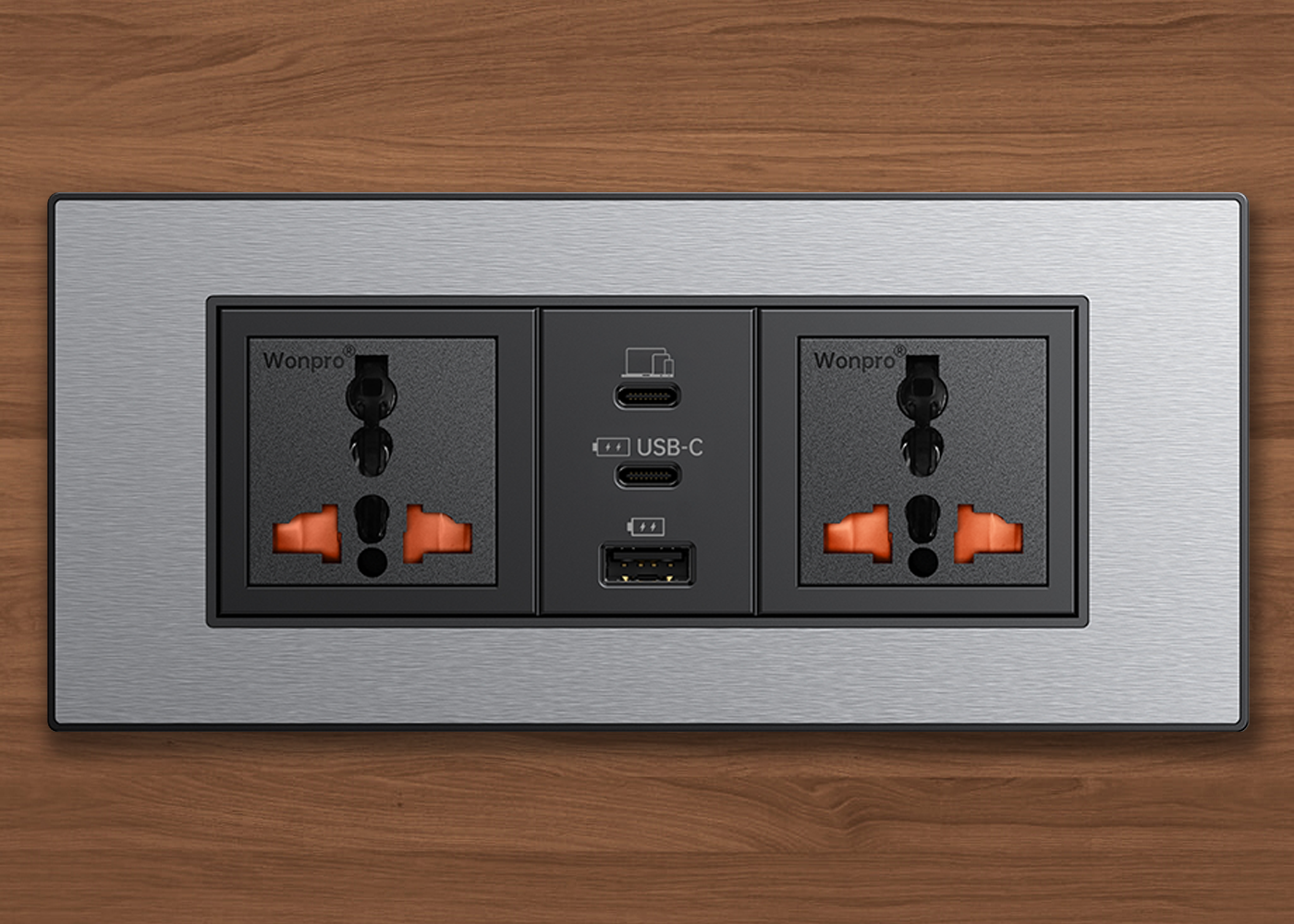

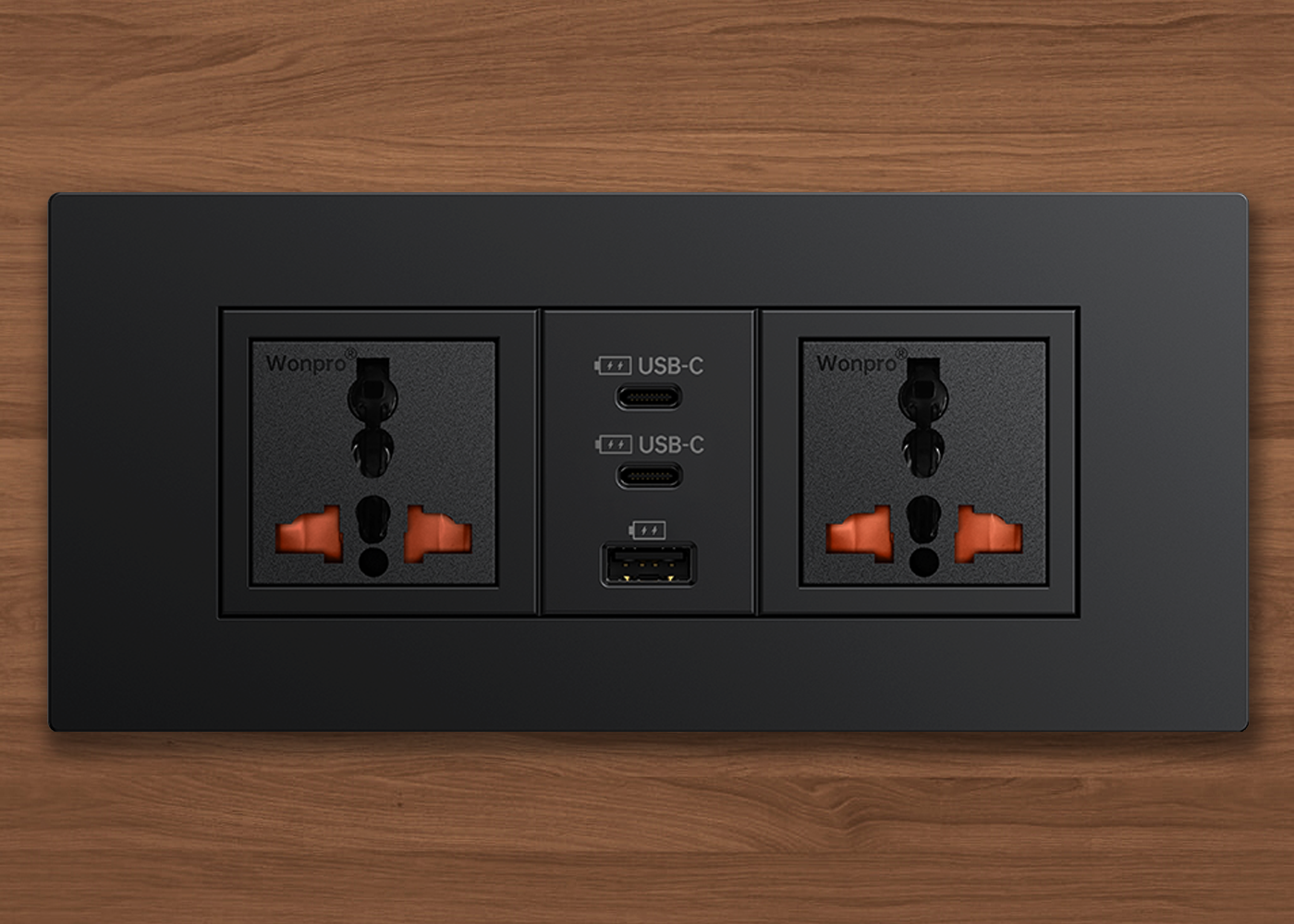

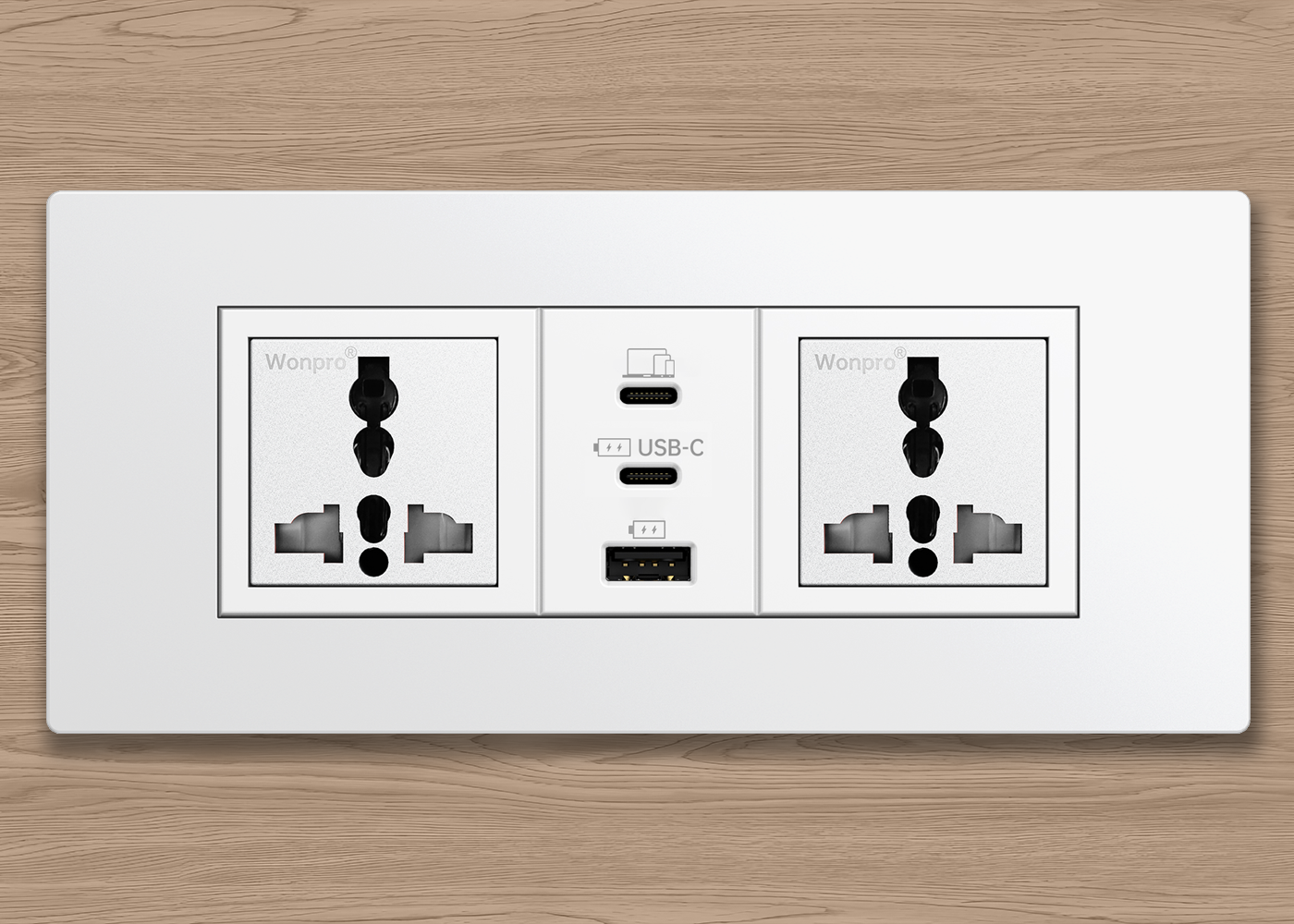

Provides guests with 2 easy-to-find universal outlets and 3 USB charge ports.
-

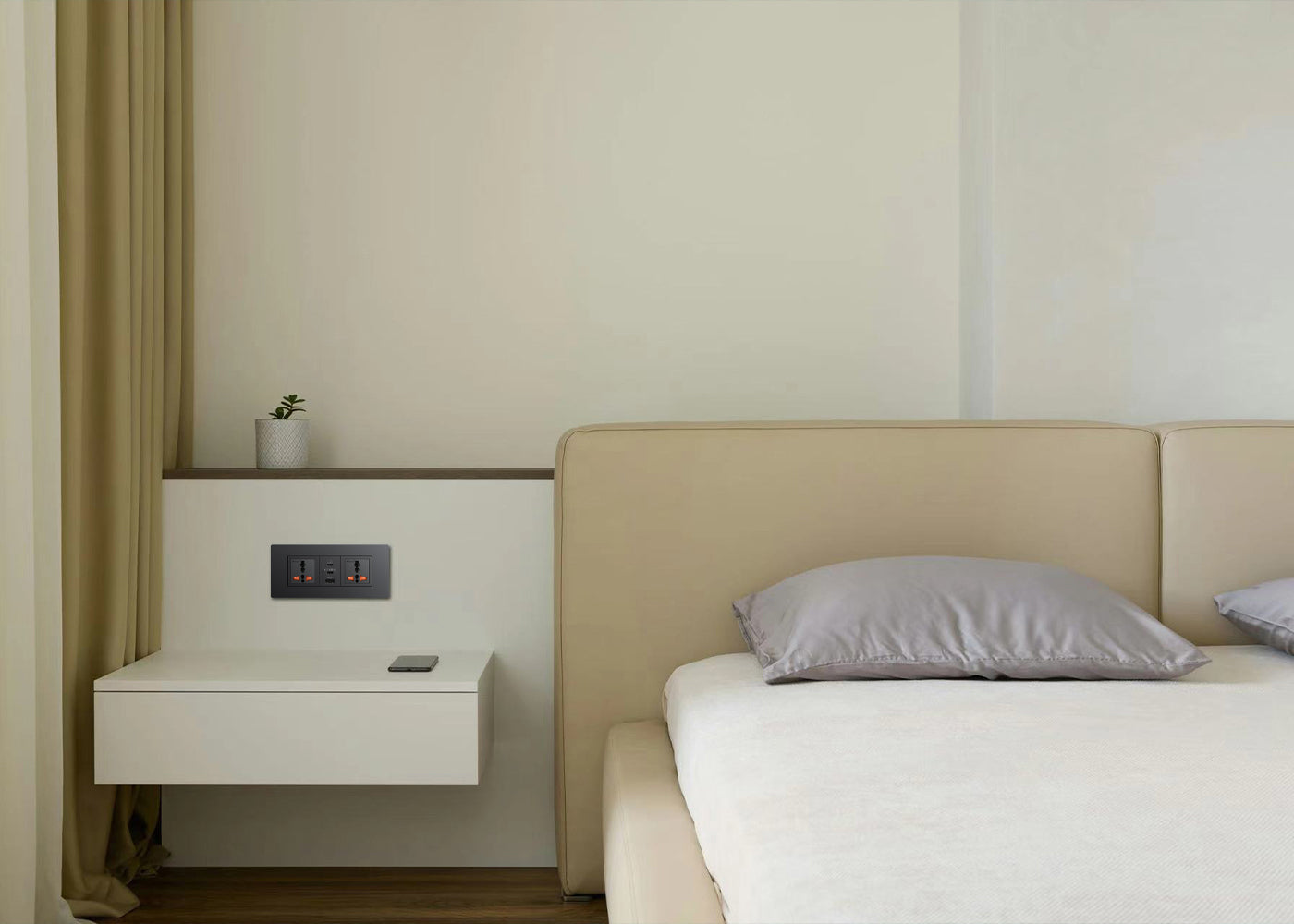

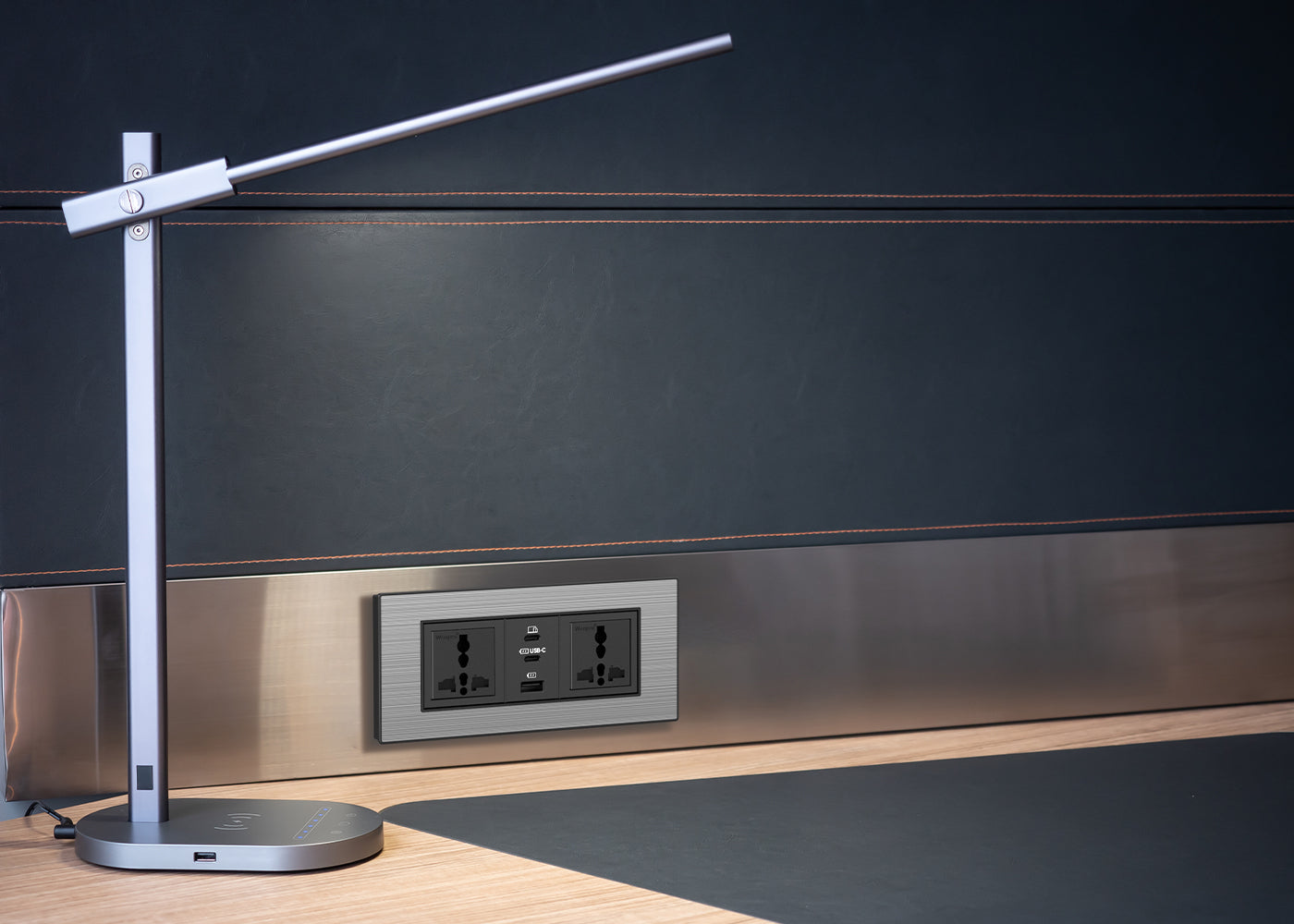

Designed for installing flush into furniture, millwork, or case goods.
-
Fast-charging USB ports support a wide range of portable devices.
-

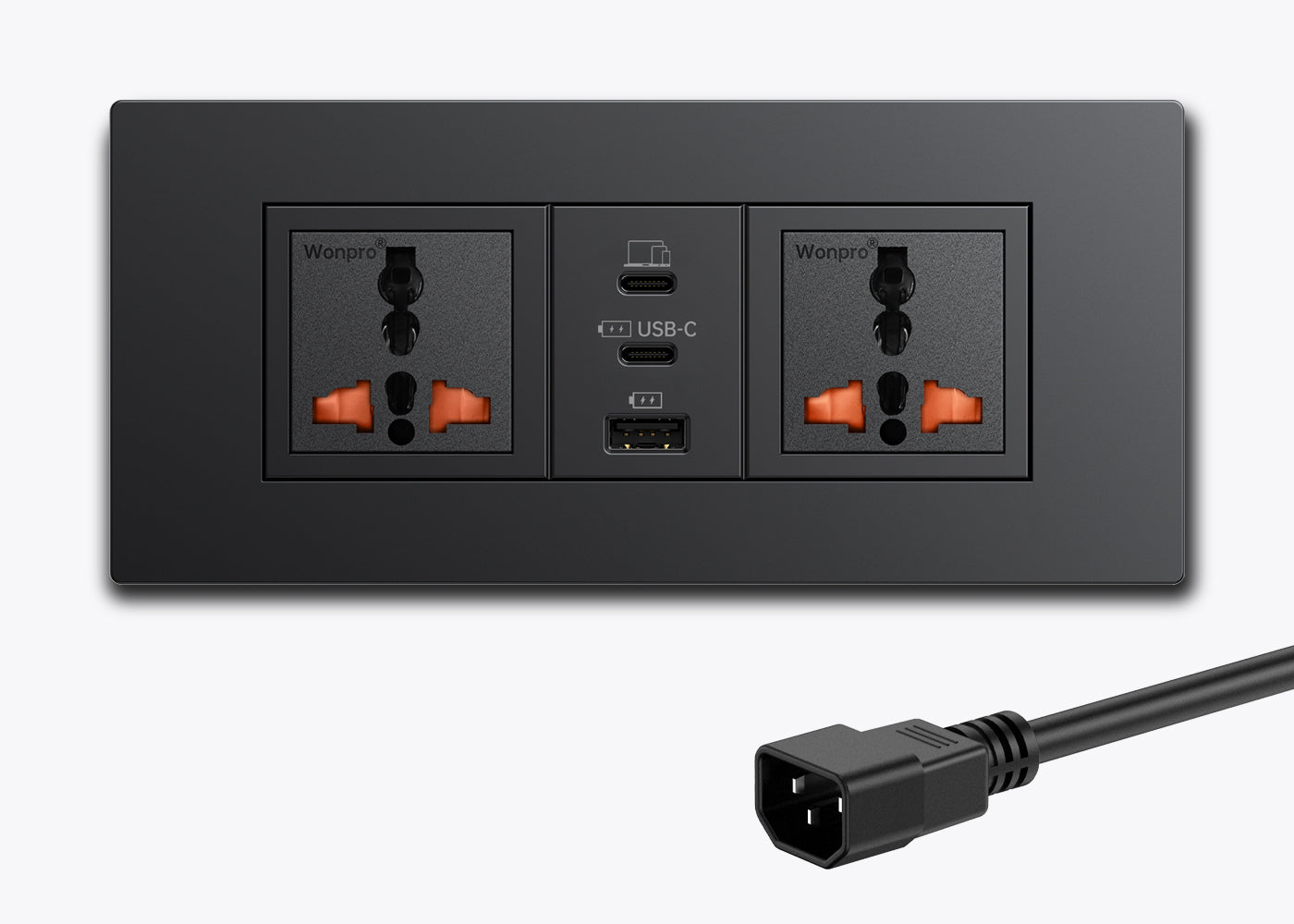

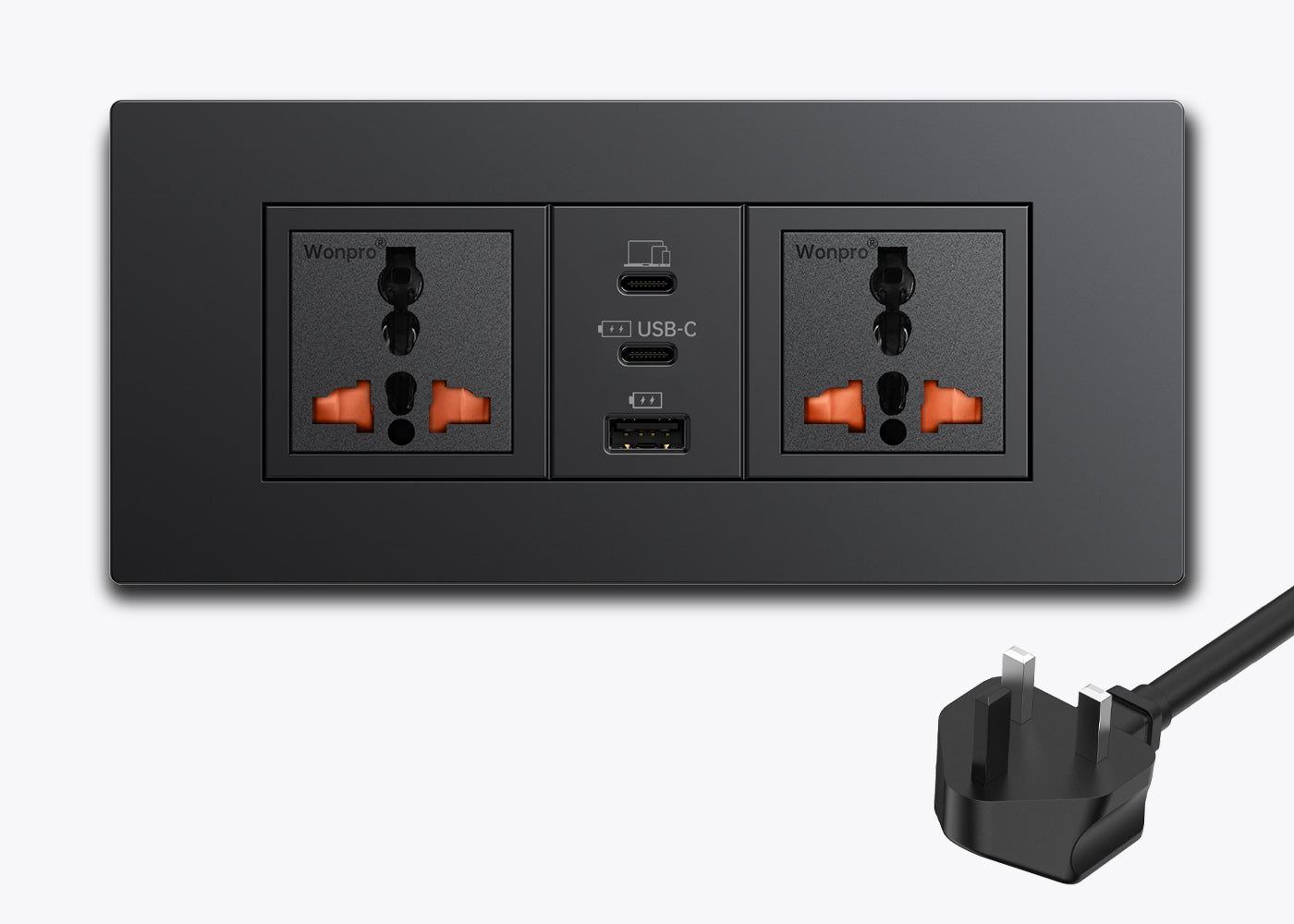

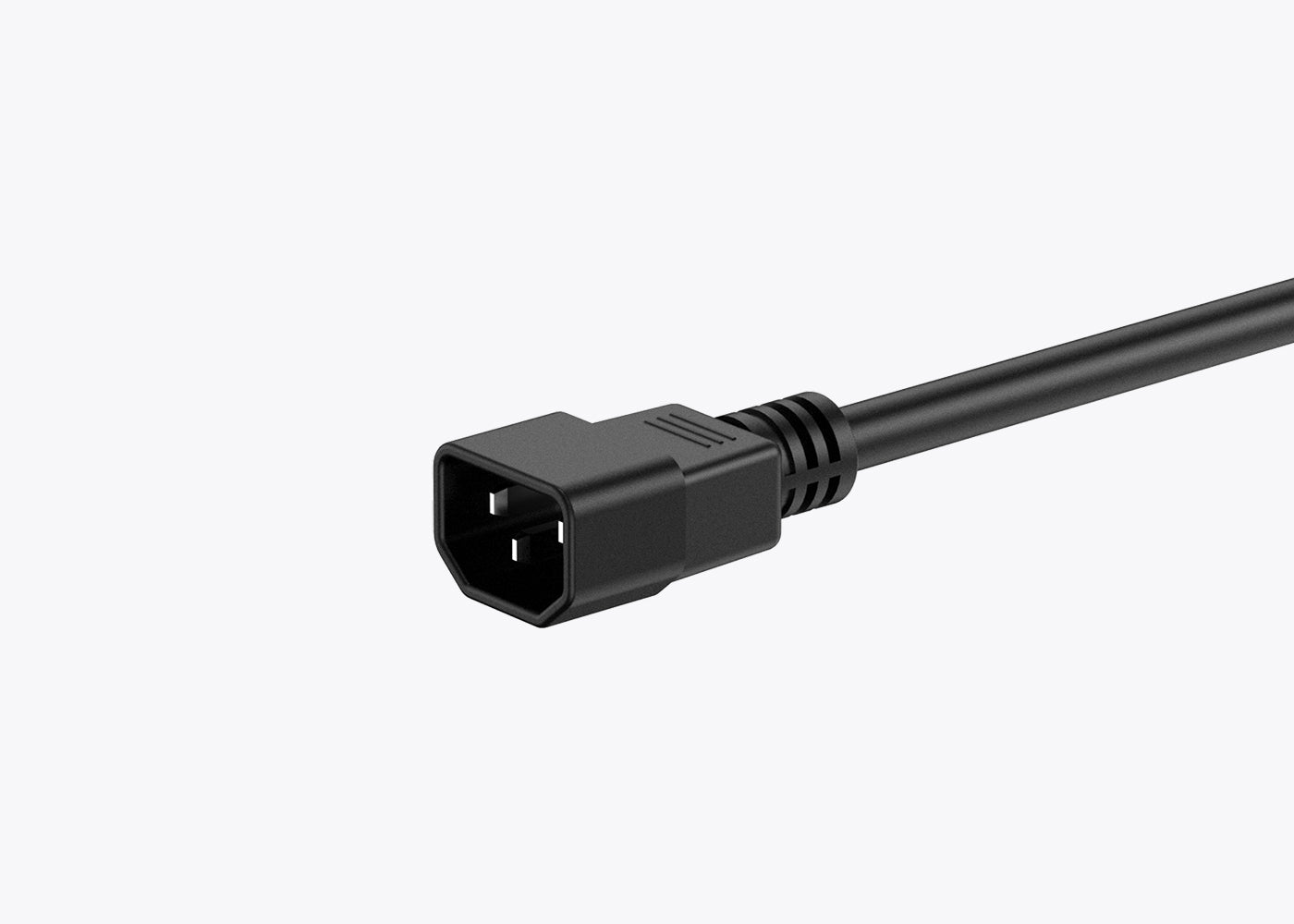

Country specific power cord supplied.
-
UL Certified to UL1310.
-
USB over current/voltage/temperature and short circuit protection.
PowerHub Pro Universal

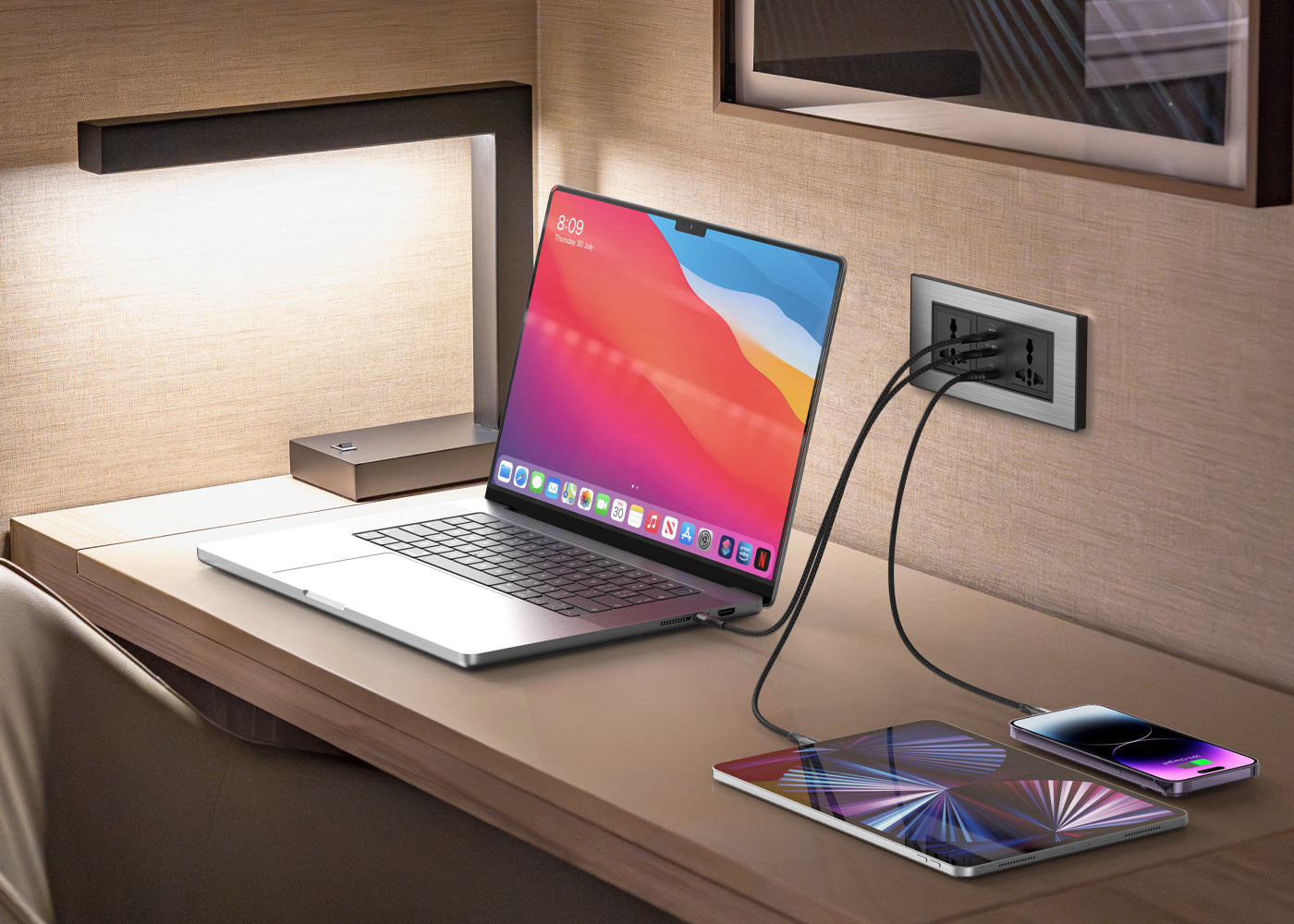

PowerHub Pro Universal takes the PowerHub range to a new level. The use of the latest GaN technology enables USB charging across 3 outlets up to an amazing 50 watts combined with 2 universal outlets. The USB Type-C outlets feature USB Power Delivery (PD) making them ideal for charging tablets and even small to medium laptops!
Key Features
-
Provides guests with 2 easy-to-find universal outlets and 3 USB charge ports.
-
Designed for installing flush into furniture, millwork, or case goods.
-
Fast-charging USB ports support a wide range of portable devices.
-
Country specific power cord supplied.
-
UL Certified to UL1310.
-
USB over current/voltage/temperature and short circuit protection.

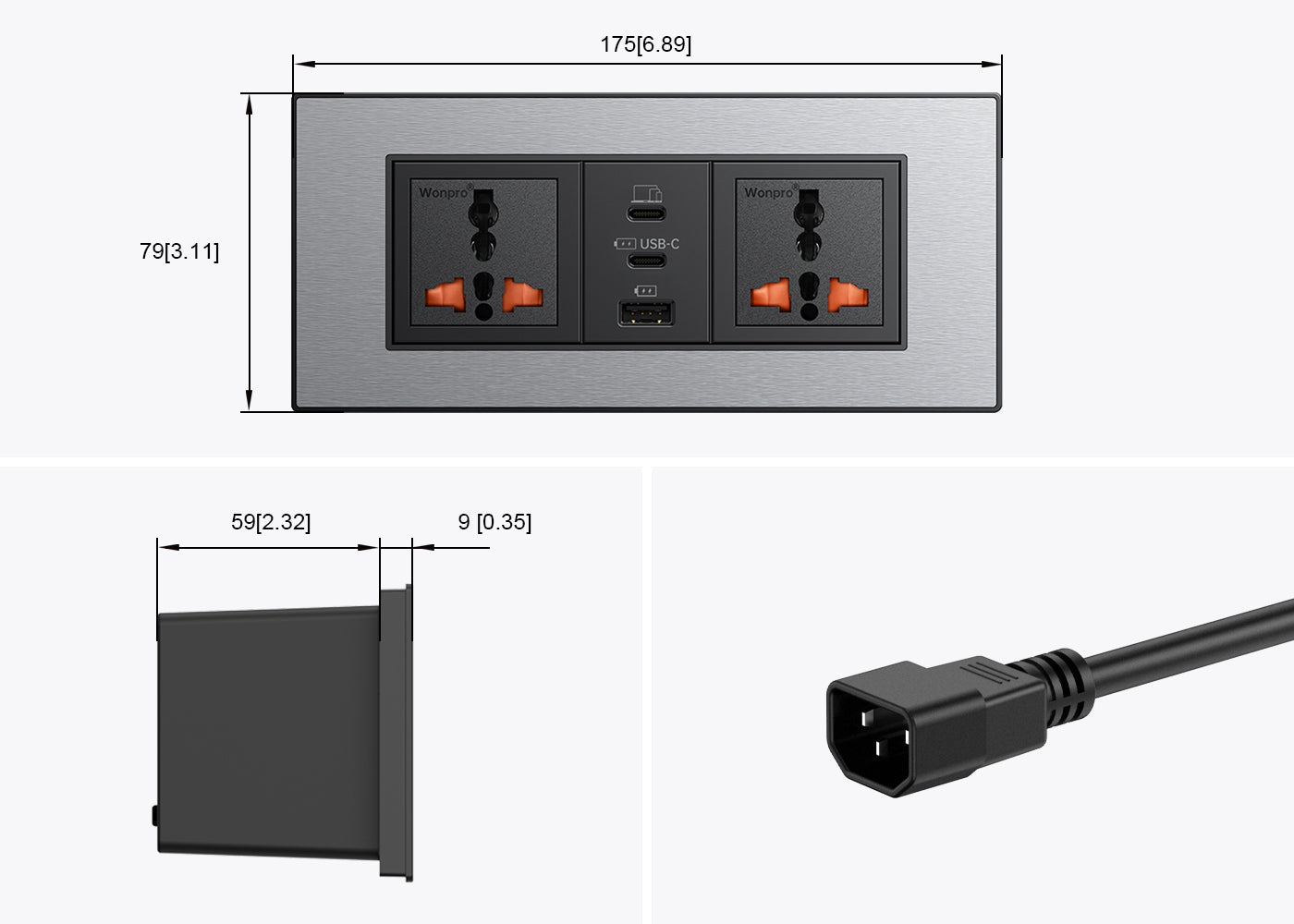

PowerHub Pro Universal Specifications
- Input: Country specific mains cable to suit country of deployment.
- Outputs: 2 x universal AC outlets, 10A max. shared. 3 USB Ports (2 x USB-C, 1 x USB-A) total 50W max.
- One USB Used: USB-C1 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, OR USB-C2 PD3.0: 5V3A/9V3A/15V3A/20V2.25A, 45W, or USB-A 5V2.4A,12W.
- Two USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A 30W and USB-C2 PD3.0: 5V3A/9V2.22A 20W, OR USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-A 5V2.4A,12W, OR USB-C2/USB-A 5V3.4A,17W shared.
- Three USB's Used: USB-C1 PD3.0: 5V3A/9V3A/15V2A/20V1.5A, 30W and USB-C2/USB-A 5V3.4A,17W shared.
- Safety: USB over current/voltage/temperature and short circuit protection.
- Certification: UL Certified UL1310. FCC Part 15b.
PowerHub Pro Universal Downloads
TA-7545U PowerHub Pro Datasheet.pdf
TA-7545U PowerHub Pro Install Guide Online.pdf
